Studio Multimedia G868B

Purpose:

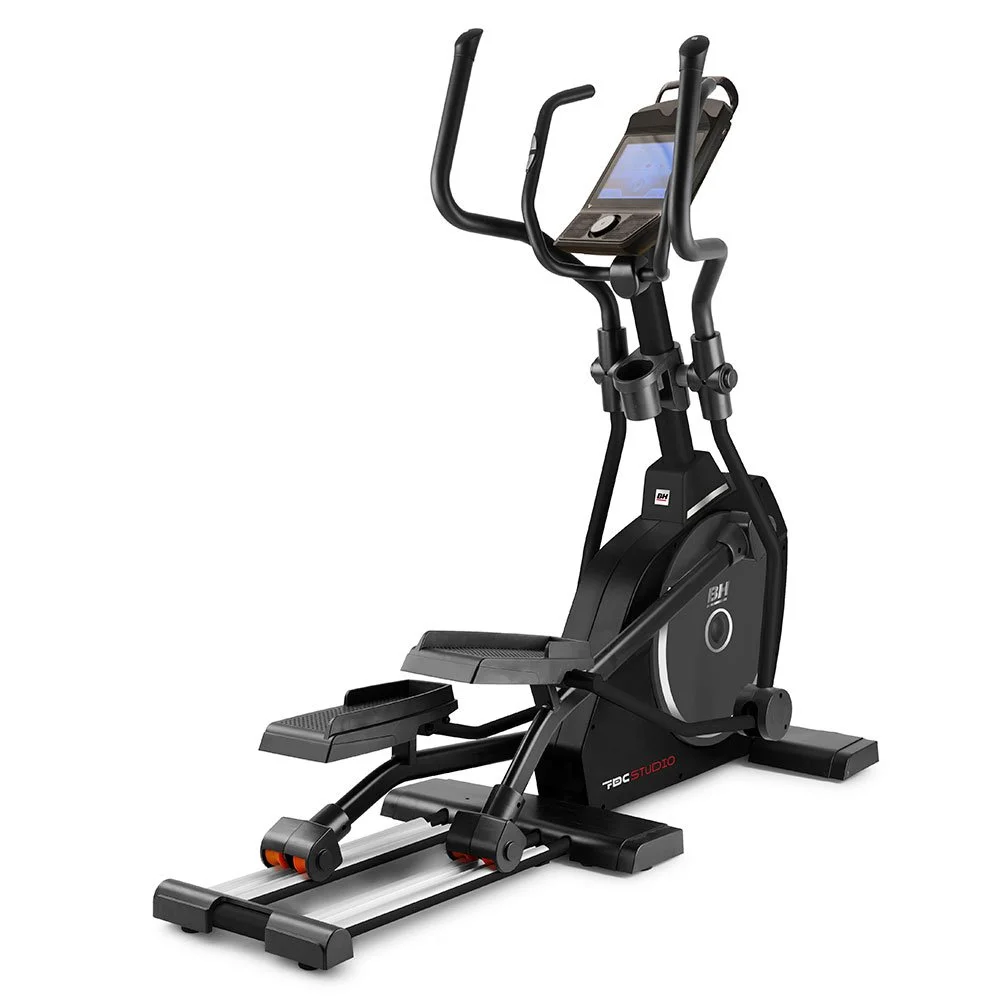

The FDC Studio elliptical trainer is designed for tall and/or heavy users, offering a reinforced frame and one of the longest strides on the market. With a 51 cm stride, 35 kg rotating mass, and magnetic resistance system, it ensures smooth, demanding workouts. Available with two console options, the FDC Studio adapts to user needs, from professional training to entertainment-rich sessions.

Dimensions & Technical Data:

• Length: 1850 mm

• Width: 700 mm

• Height: 1700 mm

• Machine weight: 85 kg

• Maximum user weight: 130 kg

• Stride length: 510 mm

• Distance between pedals: 90 mm

• Inertia system: 35 kg rotating mass

• Resistance system: Magnetic

• Transport wheels: Yes

• Bottle holder: Yes

Mechanical Specifications:

• Resistance levels: 24

• Preset programs: up to 30 (depending on console)

• Customizable profiles: up to 5

• Heart rate control programs: 3

• Fitness Test available (Multimedia version)

• Body Fat test available (LCD version)

• Steady Watt program: Yes

• Contact pulse sensors in handlebars

• Telemetric HR monitoring via optional chest strap

Console options

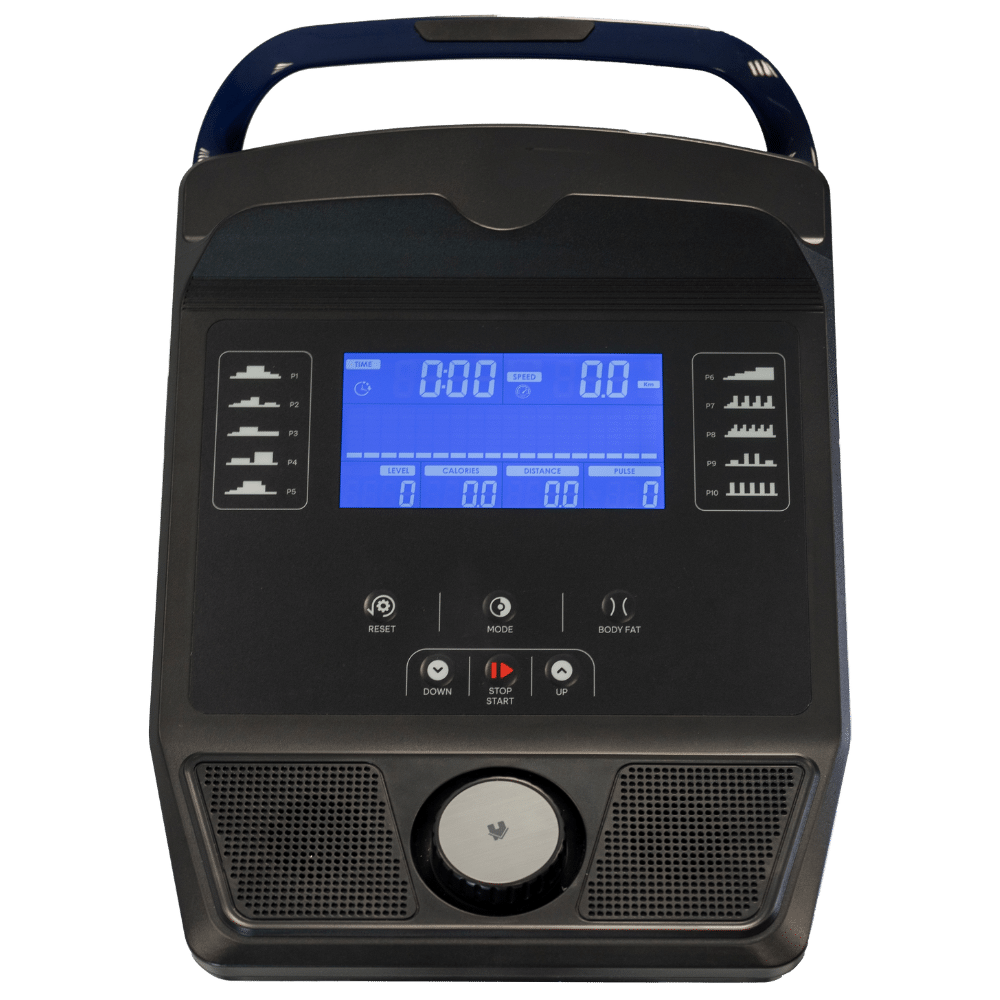

• LCD Console (I.FDC Studio G868BI)

  • M12I backlit LCD screen

  • Displays: Time, Speed, Distance, Watts, Calories, Heart Rate

  • 30 preset programs + 2 customizable profiles

  • 24 resistance levels

  • 3 HRC programs + Body Fat test

  • Bluetooth FTMS for app compatibility (Kinomap, Zwift, etc.)

  • i.Concept system with Bluetooth 4.0

  • Smartphone/tablet holder

  • Optional wireless chest strap connectivity

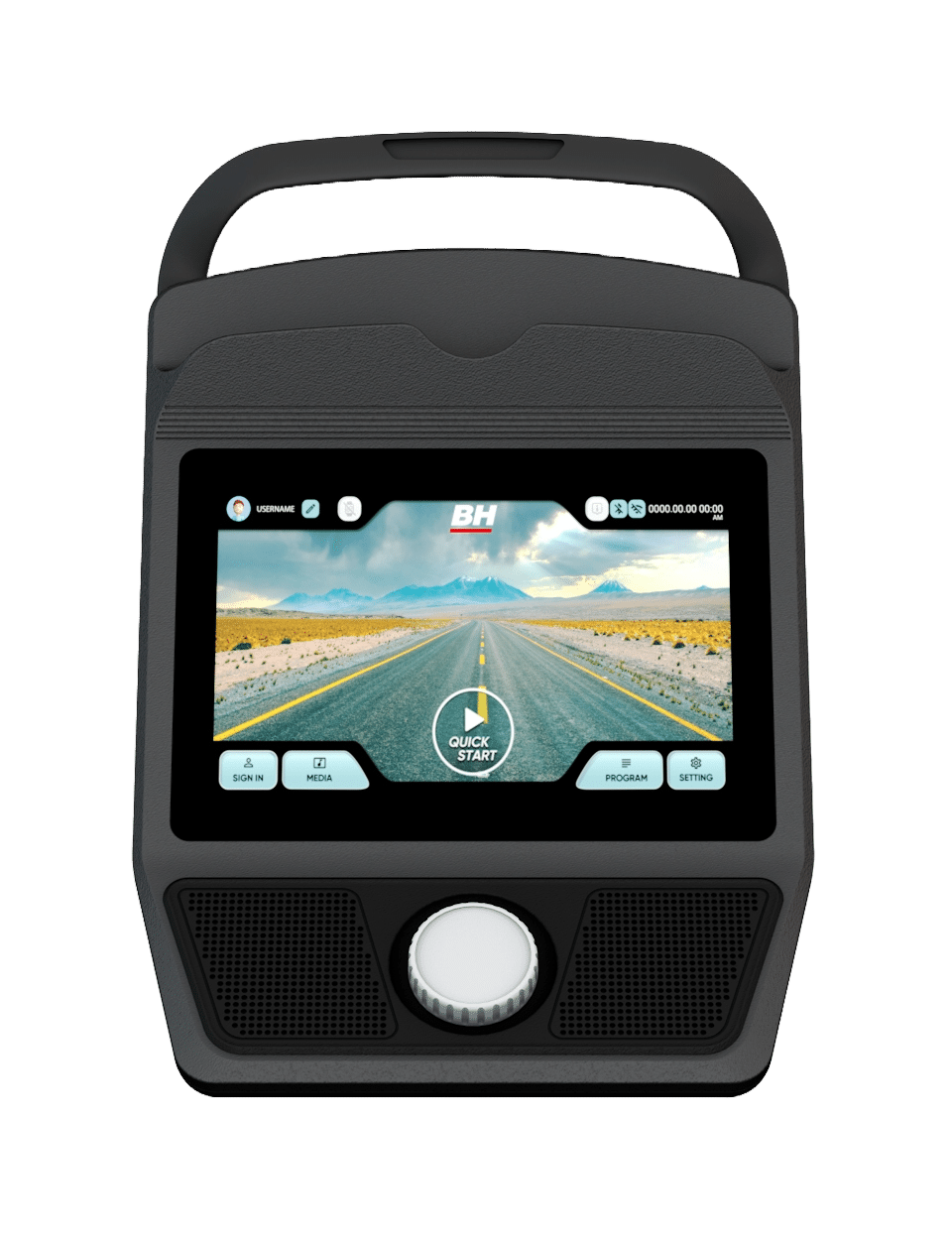

• Multimedia TFT Console (FDC Studio Multimedia G868BTFT)

  • 10” capacitive TFT touchscreen

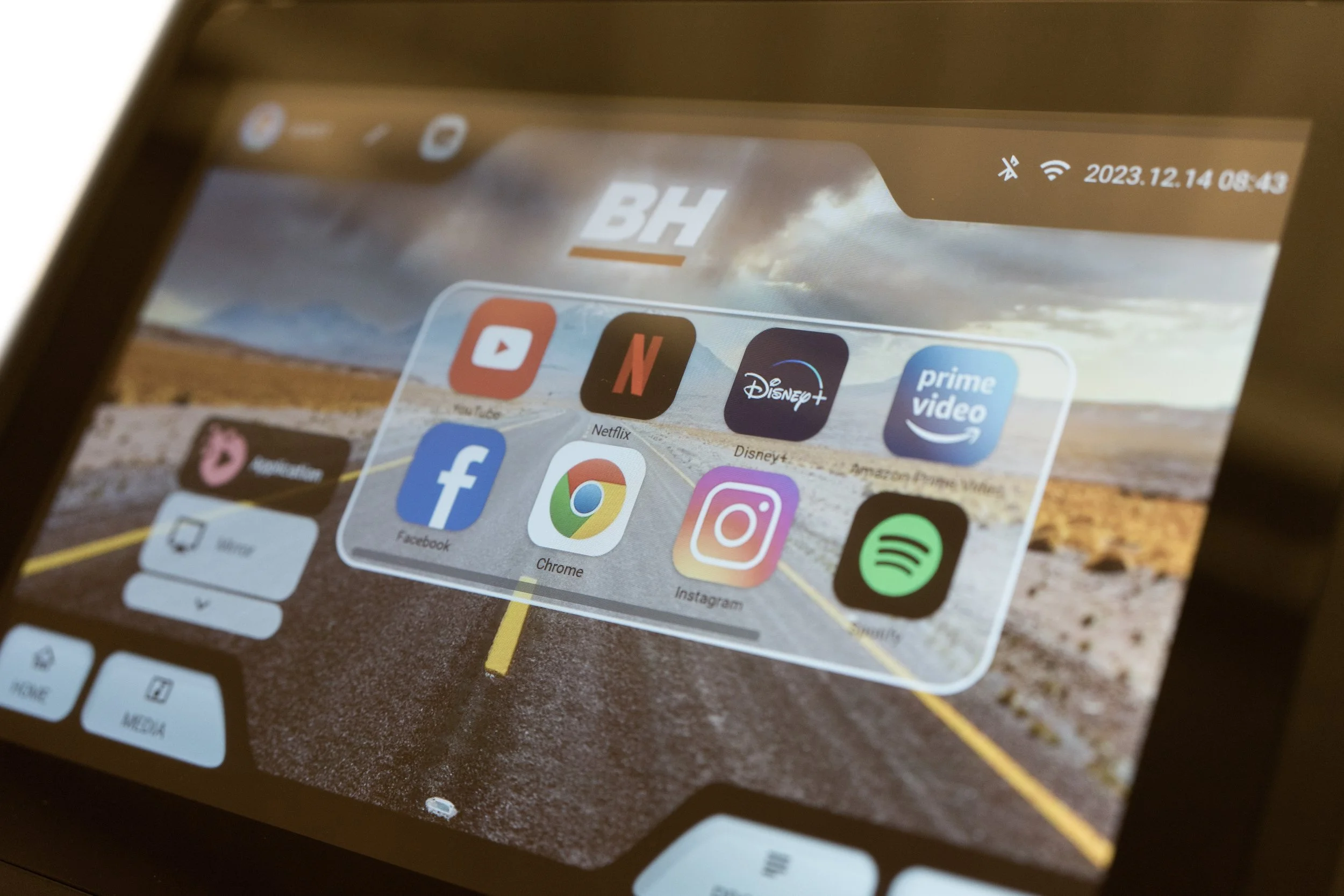

  • Entertainment apps: Netflix, Spotify, YouTube, web browser

  • 16 preset programs + 5 customizable profiles

  • 24 resistance levels

  • 3 HRC programs + Fitness Test

  • Bluetooth FTMS for full app compatibility (Kinomap, Zwift, etc.)

  • Screen mirroring for iOS and Android devices

  • USB port for device charging

  • Smartphone/tablet holder

  • Optional wireless chest strap connectivity

Connectivity & Integration:

• Bluetooth FTMS supported on both consoles

• i.Concept integration (LCD version)

• Screen mirroring (Multimedia version)

• USB charging port (Multimedia version)
