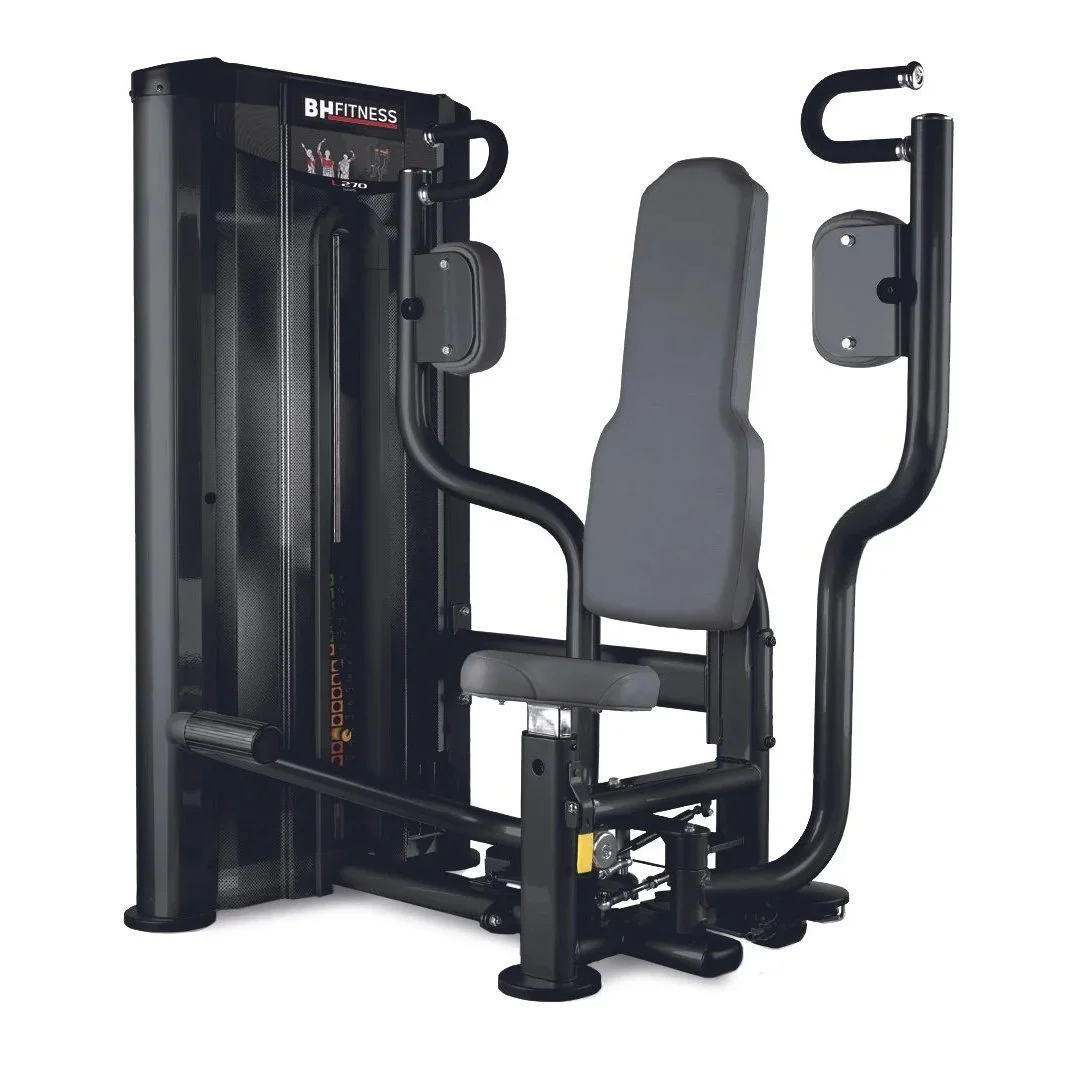

Purpose
The L270B Butterfly Machine is designed to isolate and strengthen the pectoral muscles through a controlled chest contraction movement. Its independent (isolateral) arms offer more training variety, allowing users to target each side of the chest individually for better muscle symmetry and development. This machine is ideal for building upper body definition and supporting functional strength.
Dimensions & Technical Data:
Length: 1090 mm
Width: 1530 mm
Height: 1485 mm
Machine weight: 236.3 kg
Standard weight stack: 110 kg
Braided steel cable: 5 mm thick
50 mm elevated structure for stability and hygiene
Manual adjustment with yellow-coded control points
Easy-access design for safe entry and exit
Weight indicators in 3 colors
Mechanical Specifications:
Cam-based resistance system for even load distribution
Magnetized plate selector for fast adjustments
Isolateral kit for independent arm movement
Optional pneumatic seat height system
Integrated instructional graphic panel
Comfort Features:
Multi-position handlebar (optional) for adjustable grip comfort
Ergonomic injection-core seat and backrest
Dual-layer anti-bacterial upholstery for hygiene and durability
Non-slip handgrips for a secure training experience
Construction:
Heavy-duty steel frame with electrostatic powder coating
Anti-corrosive finish available in matte or gloss
Rounded tubing and front/rear protective cowls for safety and style
Reinforced welding for long-term commercial use
Connectivity:
SmartFocus console compatibility (optional)
10" LCD 4K display with multi-language support
RFID user access for personalized tracking
Online connectivity for workout tutorials and data
Installation:
Delivered fully assembled or in transport-ready modular components
Certification:
Engineered for commercial gym environments under European quality standards
Warranty:
Welded frame: Lifetime
Mechanical parts: 3 years
Cable system: 2 years
Upholstery and soft parts: 1 year
End
