Purpose

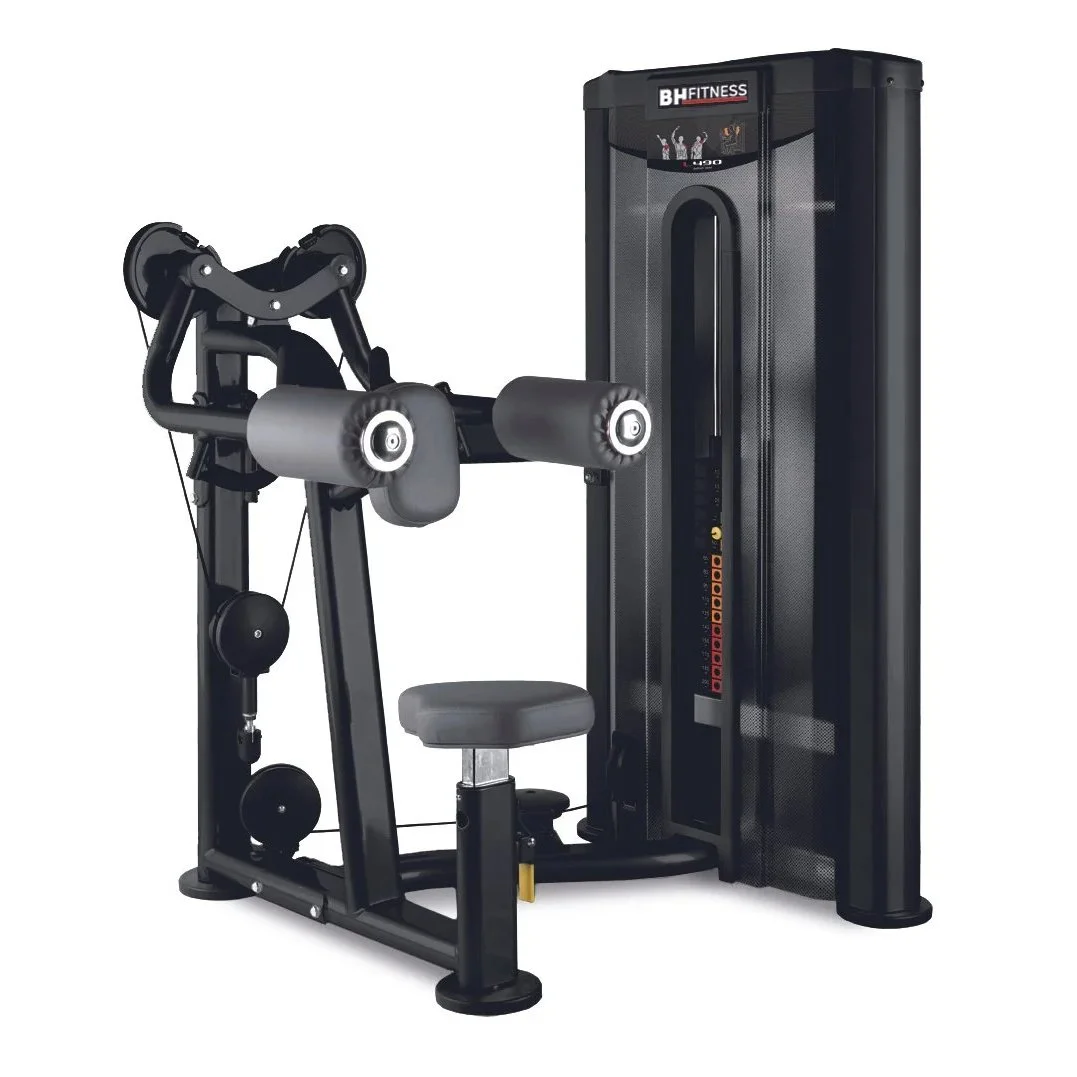

The L490B deltoid raise machine is designed to isolate and strengthen the shoulder muscles, especially the medial deltoids. With lateral arm supports that minimize friction and an adjustable setup, this machine provides a safe and comfortable experience for users of all sizes, making it ideal for professional gyms.

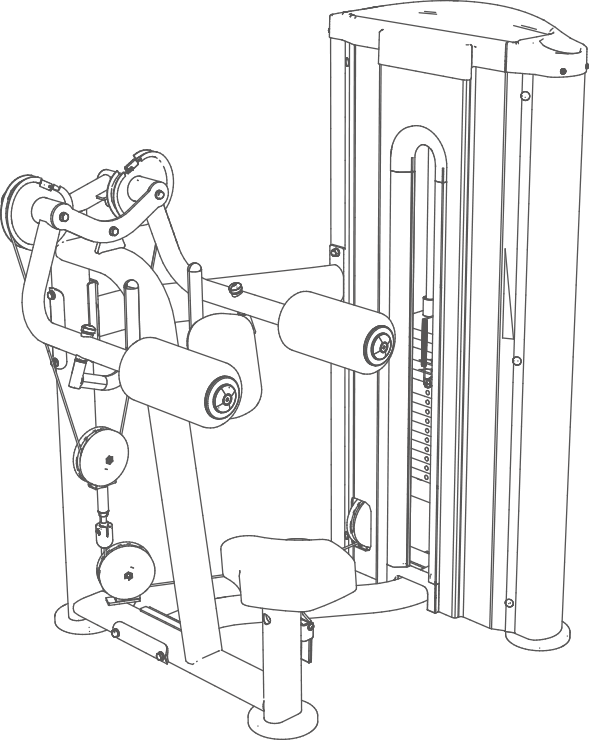

Dimensions & Technical Data:
Length: 1195 mm
Width: 940 mm
Height: 1485 mm
Machine weight: 215.5 kg
Maximum load: 110 kg (weight stack)
Braided steel cable: 5 mm thick
50 mm elevated structure
Manual adjustment system with yellow-coded levers
Weight indicators in 3 colors
Mechanical Specifications:
Cam system provides consistent resistance throughout the range of motion
Magnetized plate selector for quick and secure weight adjustments
Optional pneumatic seat height adjustment
Includes explanatory graphic panel for proper use
Comfort Features:
Lateral padded supports minimize friction during shoulder abduction
Injection-core seat and back support ensure long-lasting comfort
Saddle vertical adjustment for correct posture
Upholstered with anti-bacterial, dual-layer polyurethane foam
Optional multi-position handlebar
Non-slip handgrips enhance user control
Construction:
Reinforced steel frame with anti-corrosive powder coating
Rounded tube design for user safety and modern appearance
Electrostatic enamel finish available in multiple textures
Front and rear cowls for internal component protection and sound dampening
Connectivity:
SmartFocus system compatible (optional)
Supports RFID access and user personalization
10" LCD 4K screen with internet and multilingual options
Built-in tutorials for guided training
Installation:
Delivered fully assembled or in modular format for easier transport
Certification:
Engineered to meet European commercial fitness safety standards
Warranty:
Welded frame: Lifetime
Mechanical parts: 3 years
Cables: 2 years
Upholstery and soft components: 1 year
End
