Purpose

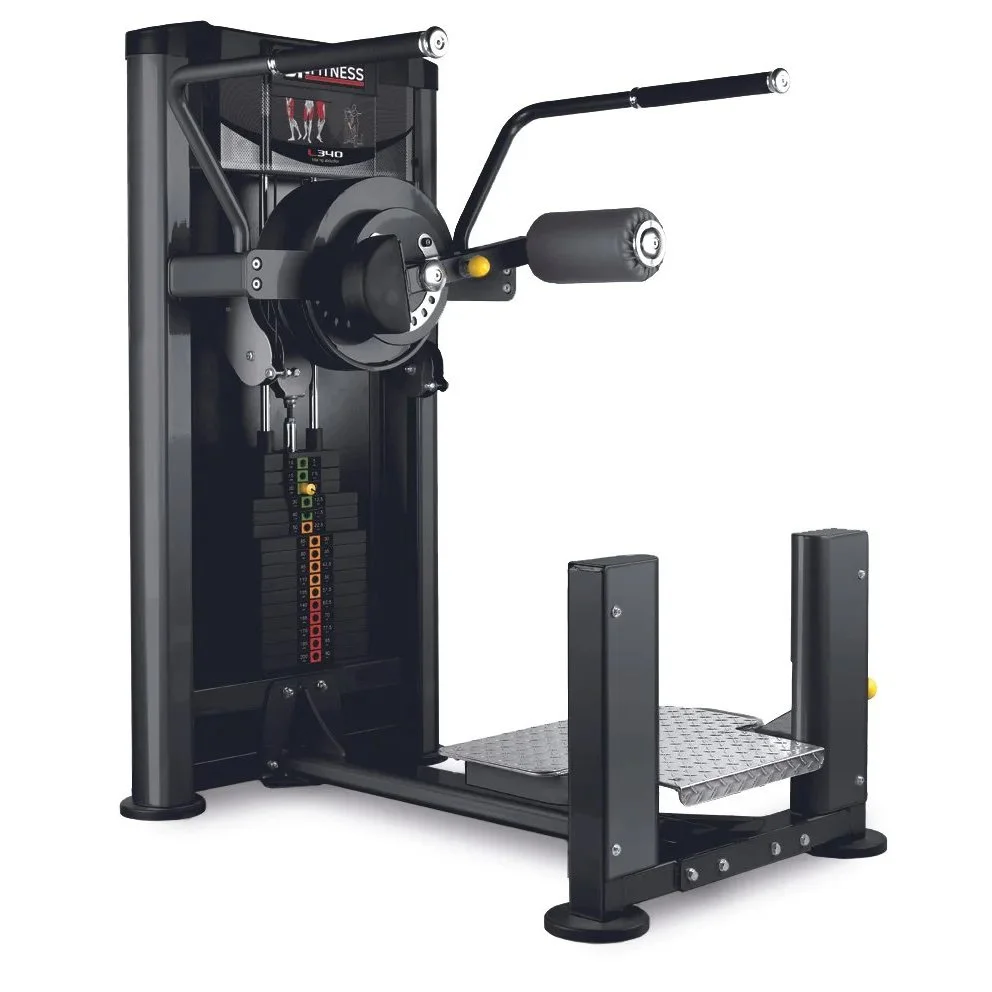

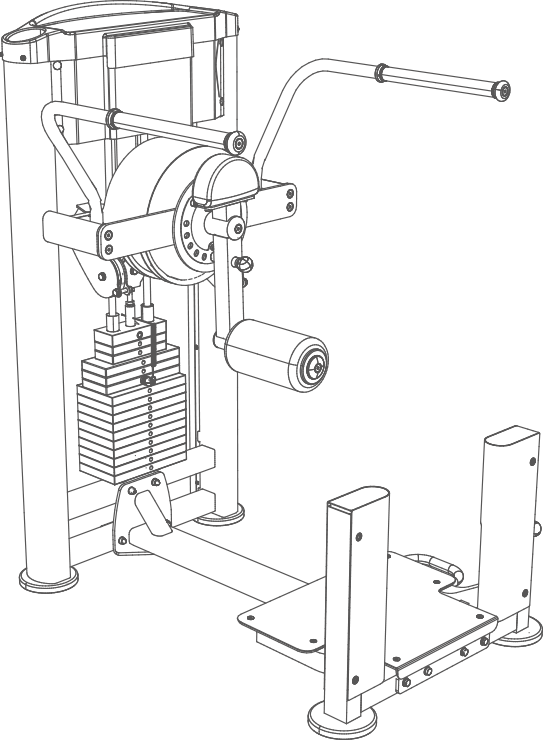

This hip machine is designed to develop strength and flexibility in the hip muscles with precision and control. Featuring a 180° adjustable movement arm, it allows users to perform multiple exercise variations targeting abductors, adductors, glutes, and hip flexors. Ideal for functional training, rehabilitation, and lower-body sculpting.
Dimensions & Technical Data:
Length: 1000 mm
Width: 1290 mm
Height: 1485 mm
Machine weight: 254.8 kg
Maximum load: 110 kg (weight stack)
Optional load: 125 kg
Braided steel cable: 5 mm thick
50 mm elevated frame structure
Manual adjustment system with yellow-coded settings
Weight indicators in 3 colors
Mechanical Specifications:
Cam system provides smooth, controlled resistance
Magnetized plate selector for easy and secure weight changes
180° adjustable arm enables multiple hip-focused movements
Rounded tube profile supports fluid, ergonomic motion
Graphic exercise panel aids user orientation
Comfort Features:
Adjustable brackets for customized range of motion
Injection-core seat and padding retain shape over time
Anti-bacterial dual-layer polyurethane upholstery
Optional multi-position handlebar for added support
Non-slip handgrips for stability and user safety
Construction:
Reinforced steel frame with anti-corrosive powder-coated finish
Front and rear protective cowls improve safety and appearance
Chrome accents and rubber pads reduce noise and vibration
Connectivity:
Optional SmartFocus console with RFID compatibility
10" 4K LCD screen for tracking and tutorials
Internet-enabled with support for 25+ languages
Integrated digital guidance system (SmartFocus)
Installation:
Delivered fully assembled or modular depending on transport needs
Certification:
Built for professional gyms and compliant with European safety standards
Warranty:
Welded frame: Lifetime
Mechanical parts: 3 years
Cables: 2 years
Upholstery and soft components: 1 year
End
Purpose
This hip machine is designed to develop strength and flexibility in the hip muscles with precision and control. Featuring a 180° adjustable movement arm, it allows users to perform multiple exercise variations targeting abductors, adductors, glutes, and hip flexors. Ideal for functional training, rehabilitation, and lower-body sculpting.
Dimensions & Technical Data:
Length: 1000 mm
Width: 1290 mm
Height: 1485 mm
Machine weight: 254.8 kg
Maximum load: 110 kg (weight stack)
Optional load: 125 kg
Braided steel cable: 5 mm thick
50 mm elevated frame structure
Manual adjustment system with yellow-coded settings
Weight indicators in 3 colors
Mechanical Specifications:
Cam system provides smooth, controlled resistance
Magnetized plate selector for easy and secure weight changes
180° adjustable arm enables multiple hip-focused movements
Rounded tube profile supports fluid, ergonomic motion
Graphic exercise panel aids user orientation
Comfort Features:
Adjustable brackets for customized range of motion
Injection-core seat and padding retain shape over time
Anti-bacterial dual-layer polyurethane upholstery
Optional multi-position handlebar for added support
Non-slip handgrips for stability and user safety
Construction:
Reinforced steel frame with anti-corrosive powder-coated finish
Front and rear protective cowls improve safety and appearance
Chrome accents and rubber pads reduce noise and vibration
Connectivity:
Optional SmartFocus console with RFID compatibility
10" 4K LCD screen for tracking and tutorials
Internet-enabled with support for 25+ languages
Integrated digital guidance system (SmartFocus)
Installation:
Delivered fully assembled or modular depending on transport needs
Certification:
Built for professional gyms and compliant with European safety standards
Warranty:
Welded frame: Lifetime
Mechanical parts: 3 years
Cables: 2 years
Upholstery and soft components: 1 year
End
Download the Inertia Hip Machine L340B Spec Sheet
Get all the technical details and specifications in one place. Download the PDF Spec Sheet below to explore dimensions, features, and performance data.
