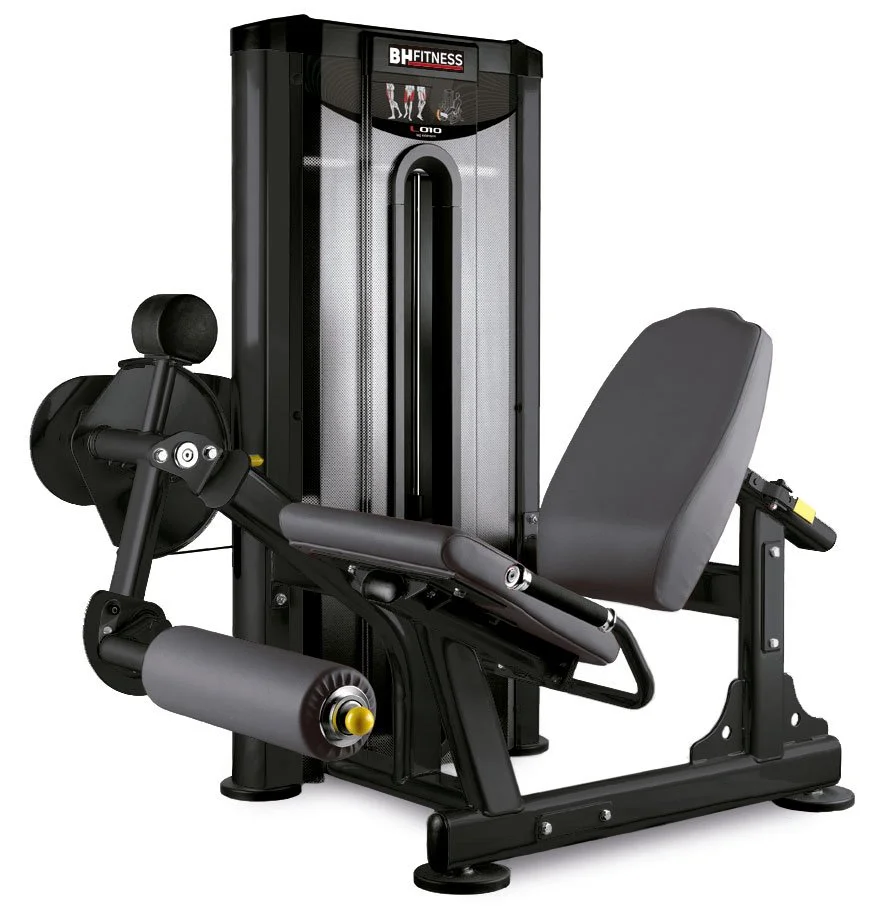

Inertia Leg Extension Machine L010B

Purpose
This leg extension machine is designed to isolate and strengthen the quadriceps with smooth, controlled movement. It adjusts easily to fit users of different heights and body types, providing safe, effective resistance for both muscle development and joint protection—perfect for commercial fitness environments.

Dimensions & Technical Data:

• Length: 1420 mm

• Width: 1130 mm

• Height: 1485 mm

• Machine weight: 242.5 kg

• Maximum load: 110 kg (weight stack)

• Optional load: 125 kg

• Braided steel cable: 5 mm thick

• Reinforced structure with 50 mm elevated frame

• Manual adjustment system with yellow-coded levers

• Weight indicators in 3 colors

Mechanical Specifications:

• Cam system ensures smooth, uniform resistance throughout the range of motion

• Magnetized plate selector allows quick and precise weight selection

• Rounded tube profile enhances ergonomic function

• Explanatory graphic panel guides correct usage

Comfort Features:

• Vertical saddle adjustment for correct positioning

• Injection-core seat and supports maintain shape and comfort over time

• Anti-bacterial dual-layer polyurethane upholstery

• Optional multi-position handlebar for stability

• Non-slip handgrips for secure and safe training

Construction:

• Powder-coated steel frame with electrostatic anti-corrosive finish

• Front and rear cowls protect components and users

• Chrome fittings and rubber elements for reduced vibration and noise

Connectivity:

• Optional SmartFocus console with RFID user access

• 10" 4K LCD screen with internet capability

• Supports 25+ languages

• On-screen tutorials available with SmartFocus system

Installation:

• Delivered fully assembled or in modular parts depending on transport needs

Certification:

• Designed for professional gym use and meets European safety and quality standards

Warranty:

• Welded frame: Lifetime

• Mechanical parts: 3 years

• Cables: 2 years

• Upholstery and soft components: 1 year
