Purpose

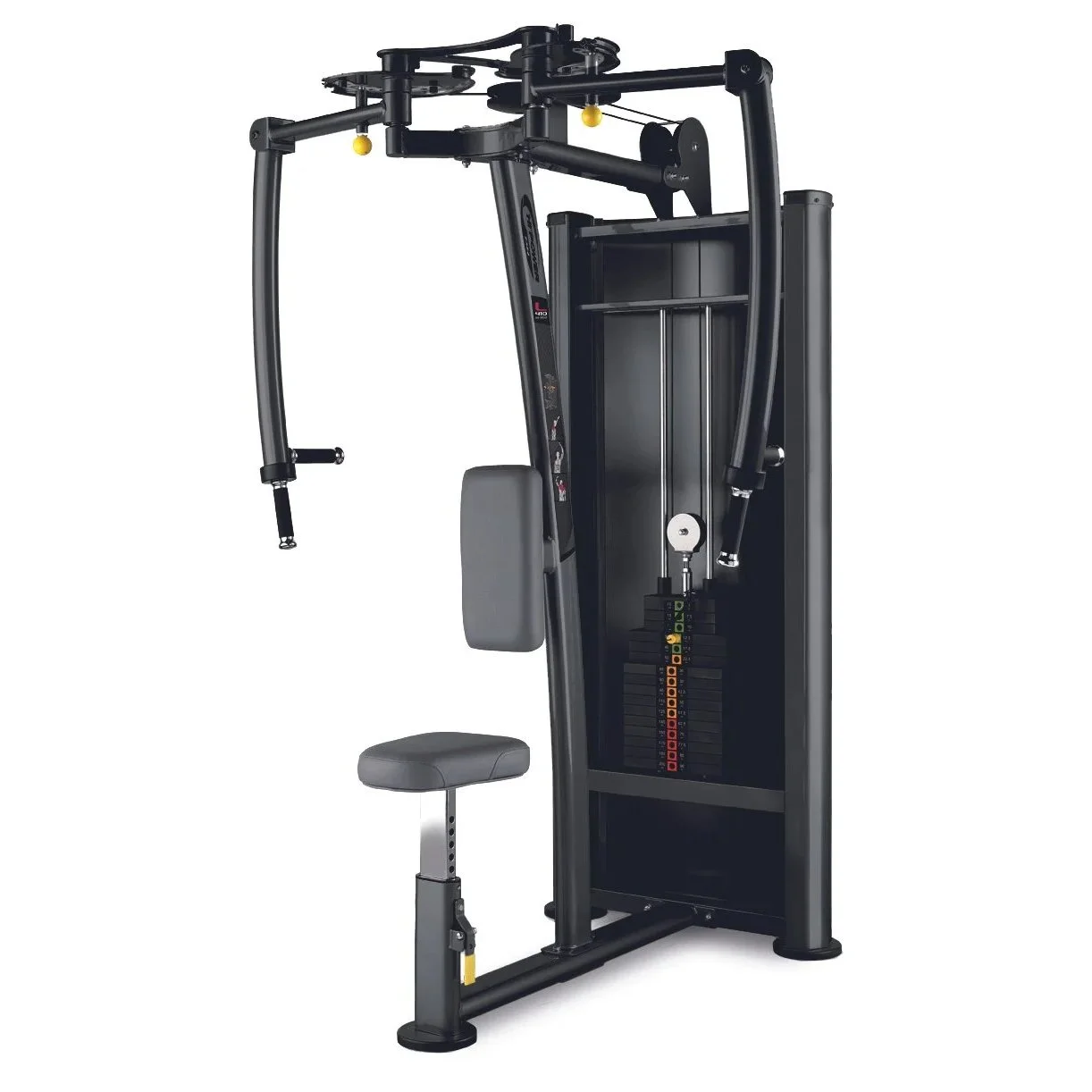

The L410B is a dual-function machine designed to train both the posterior deltoids and pectoral muscles using reverse fly and chest fly movements. With adjustable arms and ergonomic support, it allows users to isolate key upper body muscle groups for strength, posture, and definition. Ideal for both bodybuilding and general fitness environments.
Dimensions & Technical Data:
Length: 1660 mm
Width: 1290 mm
Height: 2000 mm
Machine weight: 221.2 kg
Standard weight stack: 110 kg
Optional weight stack: 125 kg
Braided steel cable: 5 mm diameter
50 mm elevated frame structure for hygiene and stability
Manual adjustment with yellow-coded contact points
Easy Access design for improved entry and exit
Weight indicators in 3 colors
Mechanical Specifications:
Dual-function movement for chest fly and reverse fly
Magnetized selector pin for smooth load changes
Cam system ensures uniform resistance
Isolateral Kit option for independent arm training
Integrated instructional panel for guided use
Comfort Features:
Optional multi-position handlebars for varied grip angles
High-density injection-core seat and backrest
Anti-bacterial, dual-layer upholstery for hygiene and comfort
Manual seat adjustment for user customization
Non-slip handgrips for stability
Construction:
Industrial-grade steel frame with rounded tubing
Powder-coated anti-corrosive finish
Available in matte or gloss textures
Front and rear cowls for safety and aesthetics
Reinforced welding and structural support for commercial use
Connectivity:
Compatible with SmartFocus console (optional)
10" LCD 4K screen with RFID user login and workout tracking
Supports 25+ languages and digital tutorials for each exercise
Installation:
Delivered fully assembled or in modular parts for easy transport
Certification:
Complies with European safety and commercial fitness standards
Warranty:
Welded frame: Lifetime
Mechanical parts: 3 years
Cable system: 2 years
Upholstery and soft parts: 1 year
End
Purpose
The L410B is a dual-function machine designed to train both the posterior deltoids and pectoral muscles using reverse fly and chest fly movements. With adjustable arms and ergonomic support, it allows users to isolate key upper body muscle groups for strength, posture, and definition. Ideal for both bodybuilding and general fitness environments.
Dimensions & Technical Data:
Length: 1660 mm
Width: 1290 mm
Height: 2000 mm
Machine weight: 221.2 kg
Standard weight stack: 110 kg
Optional weight stack: 125 kg
Braided steel cable: 5 mm diameter
50 mm elevated frame structure for hygiene and stability
Manual adjustment with yellow-coded contact points
Easy Access design for improved entry and exit
Weight indicators in 3 colors
Mechanical Specifications:
Dual-function movement for chest fly and reverse fly
Magnetized selector pin for smooth load changes
Cam system ensures uniform resistance
Isolateral Kit option for independent arm training
Integrated instructional panel for guided use
Comfort Features:
Optional multi-position handlebars for varied grip angles
High-density injection-core seat and backrest
Anti-bacterial, dual-layer upholstery for hygiene and comfort
Manual seat adjustment for user customization
Non-slip handgrips for stability
Construction:
Industrial-grade steel frame with rounded tubing
Powder-coated anti-corrosive finish
Available in matte or gloss textures
Front and rear cowls for safety and aesthetics
Reinforced welding and structural support for commercial use
Connectivity:
Compatible with SmartFocus console (optional)
10" LCD 4K screen with RFID user login and workout tracking
Supports 25+ languages and digital tutorials for each exercise
Installation:
Delivered fully assembled or in modular parts for easy transport
Certification:
Complies with European safety and commercial fitness standards
Warranty:
Welded frame: Lifetime
Mechanical parts: 3 years
Cable system: 2 years
Upholstery and soft parts: 1 year
End
Download the Rear Deltoid / Pec Deck L410B Spec Sheet
Get all the technical details and specifications in one place. Download the PDF Spec Sheet below to explore dimensions, features, and performance data.
