Purpose

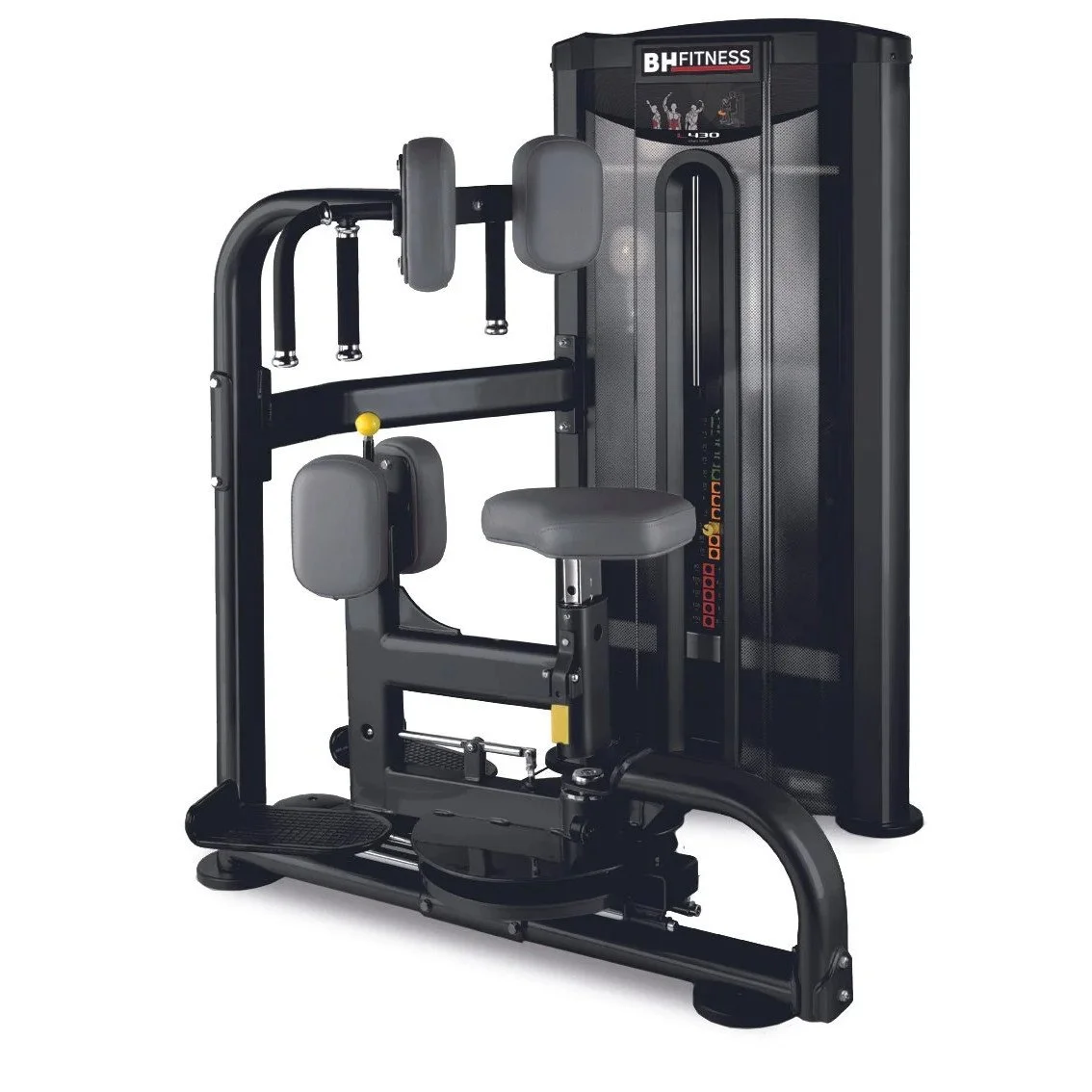

This rotational twister machine is designed to engage the abdominal and oblique muscles with natural, controlled twisting movements. It improves core strength, flexibility, and waist definition, making it ideal for full-body training and posture enhancement in any commercial gym setting.
Dimensions & Technical Data:
Length: 1180 mm
Width: 1210 mm
Height: 1485 mm
Machine weight: 236.8 kg
Maximum load: 68 kg (weight stack)
Optional load: 110 kg
Braided steel cable: 5 mm thick
50 mm elevated frame structure
Manual adjustment system with yellow-coded settings
Weight indicators in 3 colors
Mechanical Specifications:
Cam system ensures smooth and consistent resistance
Magnetized plate selector for quick and safe load adjustments
Designed for dynamic torso rotation to activate the core
Rounded tube construction enhances motion and user control
Graphic instruction panel aids in proper execution
Comfort Features:
Adjustable components for optimal body alignment
Injection-core seat and supports maintain comfort and shape
Dual-layer polyurethane upholstery with anti-bacterial protection
Optional multi-position handlebar for enhanced grip options
Non-slip handgrips ensure safety during rotation
Construction:
Reinforced steel frame with anti-corrosive electrostatic powder coating
Protective front and rear cowls for internal safety and durability
Chrome details and rubber contact points reduce vibration and noise
Connectivity:
Optional SmartFocus console with full digital connectivity
RFID compatibility for user access tracking
10" 4K LCD screen with internet access
Multi-language support and built-in exercise tutorials (SmartFocus)
Installation:
Delivered fully assembled or in modular parts for easier logistics
Certification:
Built to meet European commercial gym standards for quality and safety
Warranty:
Welded frame: Lifetime
Mechanical parts: 3 years
Cables: 2 years
Upholstery and soft parts: 1 year
End
Purpose
This rotational twister machine is designed to engage the abdominal and oblique muscles with natural, controlled twisting movements. It improves core strength, flexibility, and waist definition, making it ideal for full-body training and posture enhancement in any commercial gym setting.
Dimensions & Technical Data:
Length: 1180 mm
Width: 1210 mm
Height: 1485 mm
Machine weight: 236.8 kg
Maximum load: 68 kg (weight stack)
Optional load: 110 kg
Braided steel cable: 5 mm thick
50 mm elevated frame structure
Manual adjustment system with yellow-coded settings
Weight indicators in 3 colors
Mechanical Specifications:
Cam system ensures smooth and consistent resistance
Magnetized plate selector for quick and safe load adjustments
Designed for dynamic torso rotation to activate the core
Rounded tube construction enhances motion and user control
Graphic instruction panel aids in proper execution
Comfort Features:
Adjustable components for optimal body alignment
Injection-core seat and supports maintain comfort and shape
Dual-layer polyurethane upholstery with anti-bacterial protection
Optional multi-position handlebar for enhanced grip options
Non-slip handgrips ensure safety during rotation
Construction:
Reinforced steel frame with anti-corrosive electrostatic powder coating
Protective front and rear cowls for internal safety and durability
Chrome details and rubber contact points reduce vibration and noise
Connectivity:
Optional SmartFocus console with full digital connectivity
RFID compatibility for user access tracking
10" 4K LCD screen with internet access
Multi-language support and built-in exercise tutorials (SmartFocus)
Installation:
Delivered fully assembled or in modular parts for easier logistics
Certification:
Built to meet European commercial gym standards for quality and safety
Warranty:
Welded frame: Lifetime
Mechanical parts: 3 years
Cables: 2 years
Upholstery and soft parts: 1 year
End
Download the Rotational Twister L430B Spec Sheet
Get all the technical details and specifications in one place. Download the PDF Spec Sheet below to explore dimensions, features, and performance data.
