Purpose

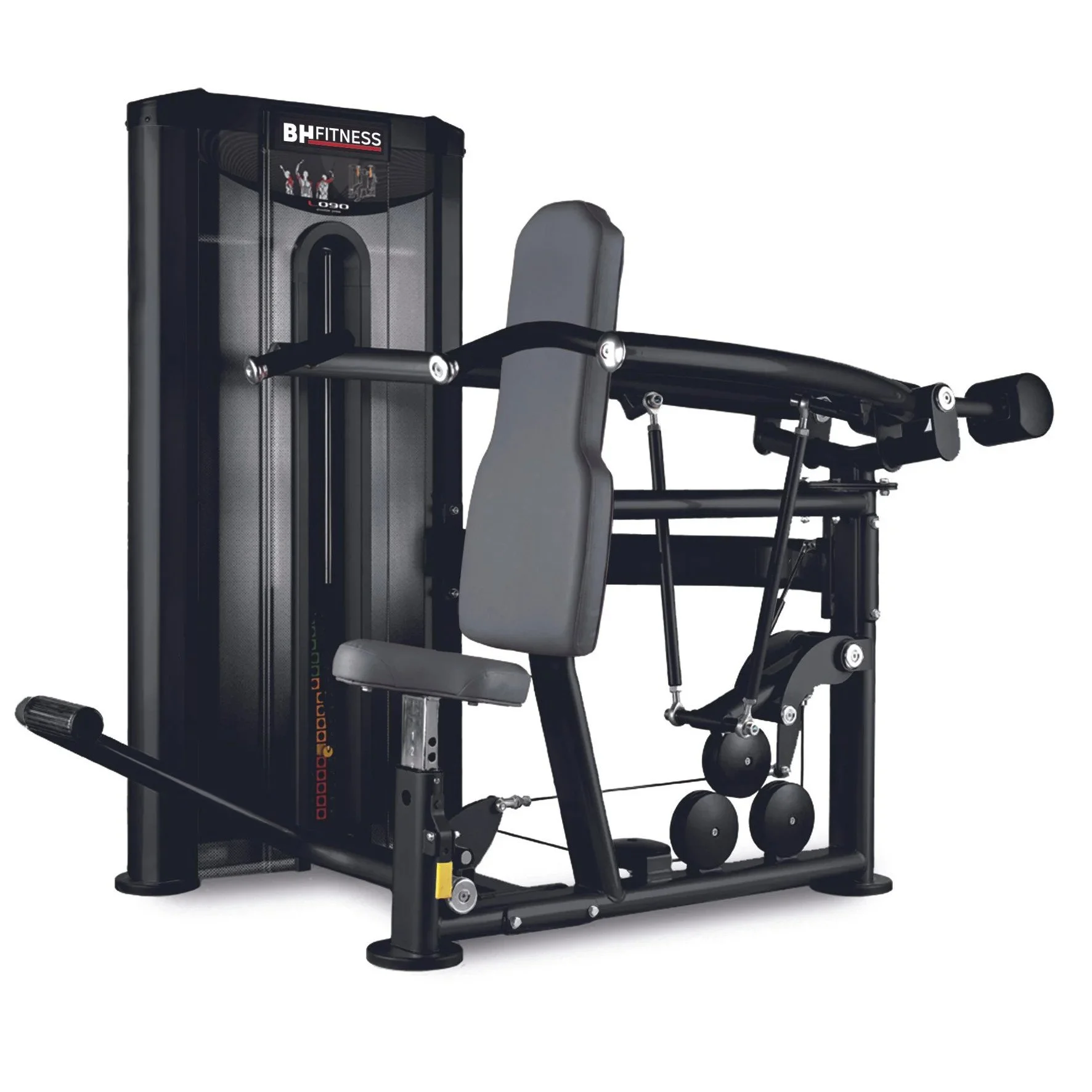

The L090B shoulder press is designed to safely and effectively train the deltoid and upper body muscles. Its guided trajectory ensures proper form throughout the movement, minimizing injury risk. Ideal for strength training in professional gyms, it supports balanced muscle development and correct posture during overhead pressing.
Dimensions & Technical Data:
Length: 1940 mm
Width: 1470 mm
Height: 1485 mm
Machine weight: 263.3 kg
Standard weight stack: 110 kg
Optional weight stack: 125 kg
Braided steel cable: 5 mm thick
50 mm elevated structure for easier cleaning and stability
Manual adjustment system with yellow-coded levers
Weight indicators in 3 colors
Mechanical Specifications:
Cam system ensures consistent resistance through full motion
Magnetized plate selector for fast and secure load changes
Optional Isolateral Kit for unilateral arm training
Includes explanatory graphic panel
Comfort Features:
Optional multi-position handlebar to accommodate user preference
Injection-core seat and backrest for ergonomic comfort
Anti-bacterial upholstery with dual-layer polyurethane padding
Manual seat and handle adjustments for optimal alignment
Non-slip handgrips for secure and comfortable hold
Construction:
Reinforced steel frame with anti-corrosive powder coating
Rounded tube design for enhanced safety and aesthetic
Electrostatic enamel finish in matte or gloss texture
Front and rear cowl protect internal components and reduce noise
Connectivity:
Compatible with SmartFocus (optional)
Supports RFID access and personalized user data
10" LCD 4K screen
Multilingual system with internet connectivity
Built-in instructional tutorials for guided use
Installation:
Delivered fully assembled or modular for simplified transport
Certification:
Designed and manufactured according to European safety and biomechanical standards
Warranty:
Welded frame: Lifetime
Mechanical parts: 3 years
Cables: 2 years
Upholstery and soft components: 1 year
End
Purpose
The L090B shoulder press is designed to safely and effectively train the deltoid and upper body muscles. Its guided trajectory ensures proper form throughout the movement, minimizing injury risk. Ideal for strength training in professional gyms, it supports balanced muscle development and correct posture during overhead pressing.
Dimensions & Technical Data:
Length: 1940 mm
Width: 1470 mm
Height: 1485 mm
Machine weight: 263.3 kg
Standard weight stack: 110 kg
Optional weight stack: 125 kg
Braided steel cable: 5 mm thick
50 mm elevated structure for easier cleaning and stability
Manual adjustment system with yellow-coded levers
Weight indicators in 3 colors
Mechanical Specifications:
Cam system ensures consistent resistance through full motion
Magnetized plate selector for fast and secure load changes
Optional Isolateral Kit for unilateral arm training
Includes explanatory graphic panel
Comfort Features:
Optional multi-position handlebar to accommodate user preference
Injection-core seat and backrest for ergonomic comfort
Anti-bacterial upholstery with dual-layer polyurethane padding
Manual seat and handle adjustments for optimal alignment
Non-slip handgrips for secure and comfortable hold
Construction:
Reinforced steel frame with anti-corrosive powder coating
Rounded tube design for enhanced safety and aesthetic
Electrostatic enamel finish in matte or gloss texture
Front and rear cowl protect internal components and reduce noise
Connectivity:
Compatible with SmartFocus (optional)
Supports RFID access and personalized user data
10" LCD 4K screen
Multilingual system with internet connectivity
Built-in instructional tutorials for guided use
Installation:
Delivered fully assembled or modular for simplified transport
Certification:
Designed and manufactured according to European safety and biomechanical standards
Warranty:
Welded frame: Lifetime
Mechanical parts: 3 years
Cables: 2 years
Upholstery and soft components: 1 year
End
Download the Shoulder Press L090B Spec Sheet
Get all the technical details and specifications in one place. Download the PDF Spec Sheet below to explore dimensions, features, and performance data.
