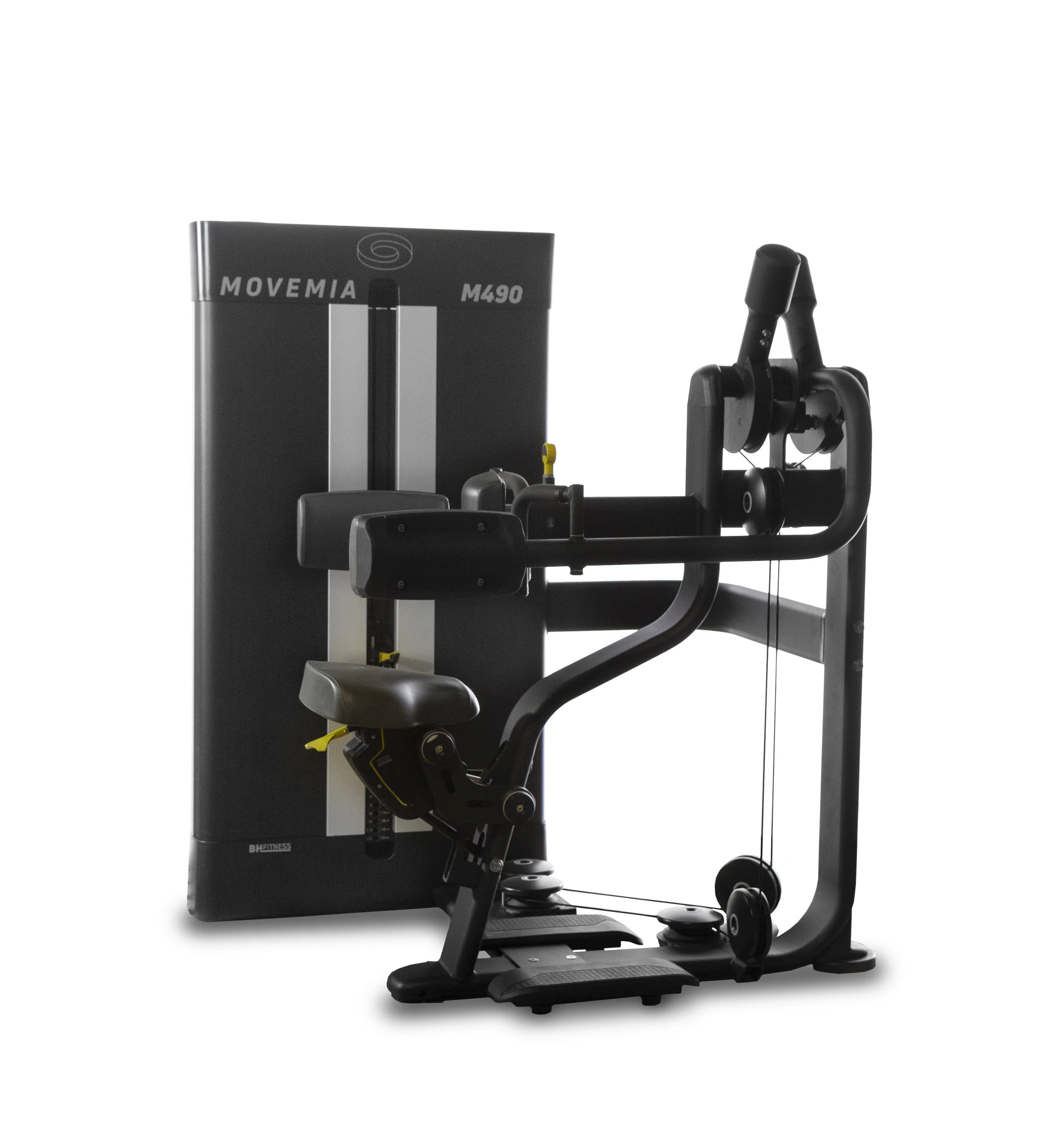

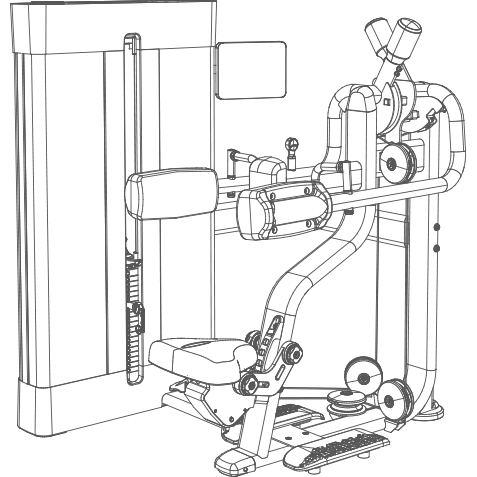

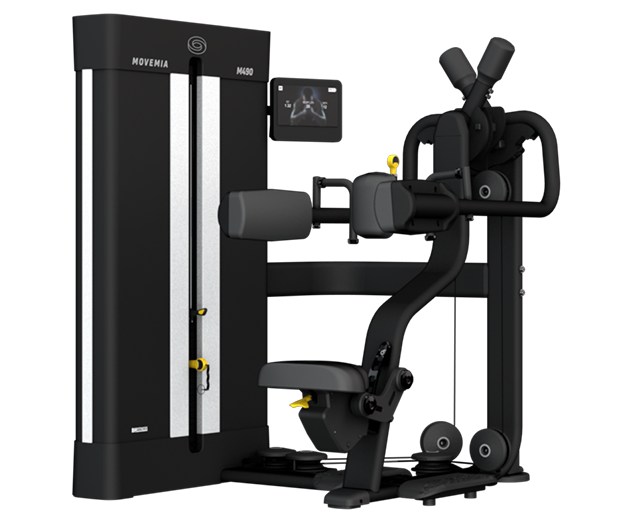

MOVEMIA Deltoid Raise M490

Purpose:

The MOVEMIA M490 Deltoid Raise is specifically designed to isolate and strengthen the middle deltoid muscles using a lateral arm raise movement. With precise biomechanics, ergonomic supports, and independent arm motion, this machine ensures optimal shoulder engagement and user safety—ideal for professional training environments.

Dimensions & Technical Data:

• Length: 1261 mm

• Width: 1267 mm

• Height: 1490 mm

• Machine weight: 278,6 kg

• Maximum user weight: 190 kg

• Standard load: 95 kg (optional 135 kg)

Mechanical Specifications:

• Independent lateral arm movement for symmetrical shoulder activation

• Adjustable range of motion

• Integrated cam system for constant resistance

• Poly V-belt transmission for smooth and quiet operation

• Magnetic weight selector with intermediate increments

• 5 mm braided steel cable rated to 1000 kg

• Color-coded weight indicators

Comfort Features:

• Injection core seat and adjustable arm pads

• Dual-tone, antibacterial upholstery

• Ergonomic non-slip handles

• Manual adjustment system with visible yellow levers

• Intermediate weight increments with one movement

• Integrated object holder

Construction:

• Reinforced steel frame with anti-corrosion treatment

• Rounded tubing for safety and modern aesthetics

• ABS front and rear protective shrouds

• Built for intensive commercial use

Connectivity:

• Optional SmartFocus 10” 4K touchscreen

• RFID-enabled user access

• Internet connection for training data and guidance

• Multilingual interface supporting 25 languages

Customization Options:

• Wide variety of frame and upholstery color options

• Custom logo and branding available

Warranty:

• 2-year professional use warranty on all mechanical and functional parts

• 10-year structural warranty covering frame materials
