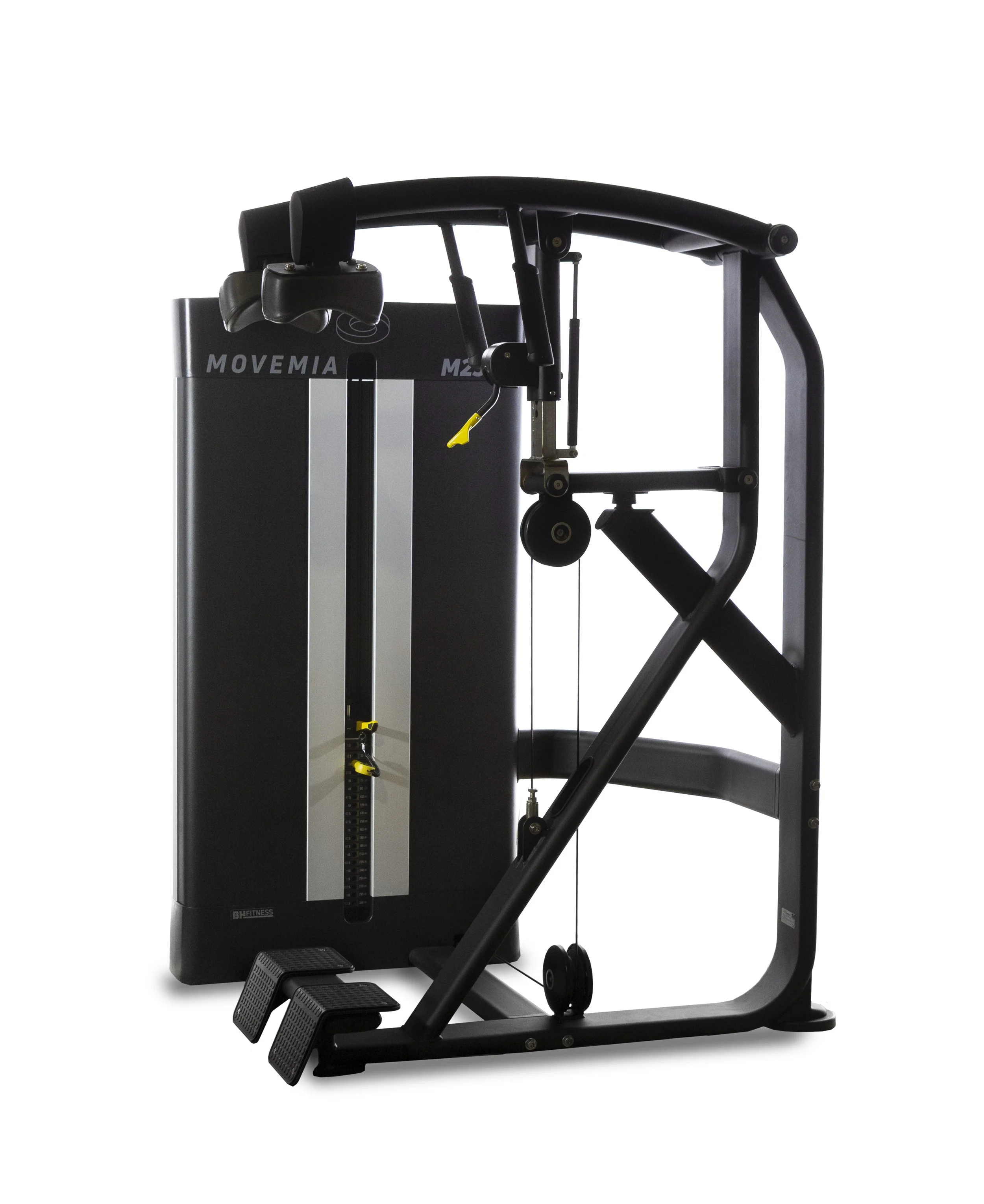

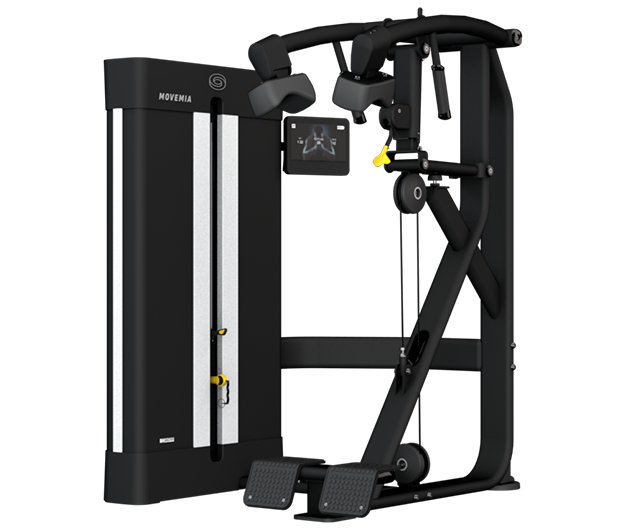

MOVEMIA Standing Calf Raise M230

Purpose:

The MOVEMIA M230 Standing Calf Raise is engineered to develop the gastrocnemius and soleus muscles through a standing plantar flexion movement. With solid support, ergonomic pads, and biomechanically correct motion, this machine delivers effective calf training for all user levels—perfect for professional gyms aiming to offer complete lower body strength development.

Dimensions & Technical Data:

• Length: 1186 mm

• Width: 1265 mm

• Height: 1721 mm

• Machine weight: 290,9 kg

• Maximum user weight: 190 kg

• Standard load: 136 kg

Mechanical Specifications:

• Standing calf raise with guided motion and shoulder-loaded resistance

• Poly V-belt transmission for smooth performance

• Magnetic weight selector with intermediate increment system

• Integrated cam system for uniform resistance

• 5 mm braided steel cable tested for 1000 kg

• Weight stack indicators in 3 colors

Comfort Features:

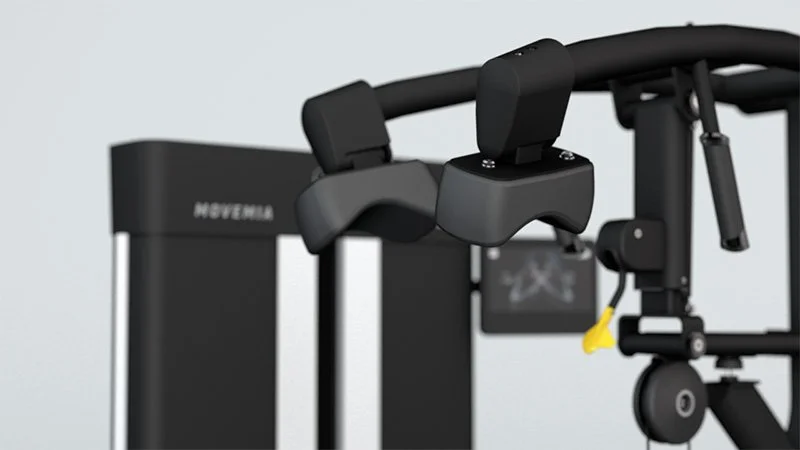

• Injection core shoulder pads with dual-tone anti-bacterial upholstery

• Non-slip footplate for safe and stable stance

• Ergonomic support for different user heights

• Yellow-highlighted adjustment points

• Intermediate weight increments selectable in one movement

• Integrated object holder for personal items

Construction:

• Reinforced steel frame with anti-corrosive treatment

• Rounded tube profile for safety and aesthetics

• ABS protective front and rear shrouds

• Built for intensive, high-traffic gym use

Connectivity:

• Optional SmartFocus 10” 4K touchscreen interface

• RFID user identification

• Internet-enabled tutorials and progress tracking

• Multilingual support in 25 languages

Customization Options:

• Available in various frame and upholstery color combinations

• Custom logo and branding options available

Warranty:

• 2-year professional use warranty on mechanical and functional parts

• 10-year structural warranty on the frame (materials only)
