Ergoline 4‑Station L480B

Purpose

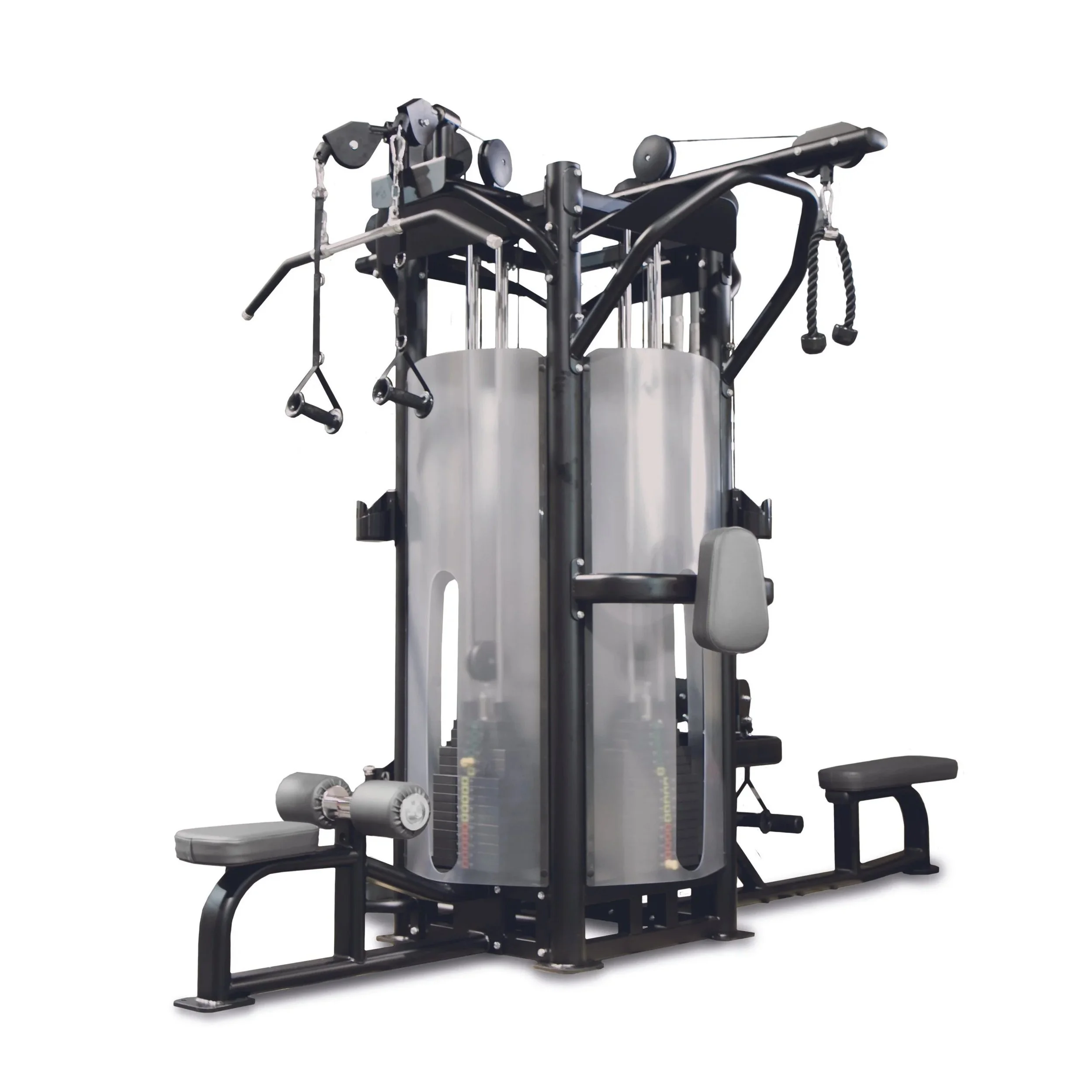

The Ergoline 4‑Station (Model: L480B) is a biomechanically optimized multi-gym designed to facilitate a wide range of strength exercises across upper and lower body. Featuring more than four exercise posts and independent cable arms, it offers versatile training in a stable, efficient layout.

Dimensions & Technical Data:

• Length: 3350 mm

• Width: 2100 mm

• Height: 2330 mm

• Product weight: 685.4 kg

• Weight stack: 110 kg

• 5 mm thick braided steel cable

• Reinforced frame with anti-corrosive coating

• Elevated 50 mm base for easy cleaning

• Rounded steel tubing

Mechanical Specifications:

• Cam-based resistance system for smooth and consistent effort

• Magnetized plate selector for quick resistance adjustments

• Independent movement stations enable multi-user flexibility

~~Comfort Features:

• Injection-core seats and ergonomic support pads

• Optional multi-position handlebars for grip variety

• Durable, antibacterial upholstery

• Weight stack indicators in three colors for easy tracking

• Instructional graphic panel guides proper exercise form

• Non-slip handgrips for secure handling
