Purpose:

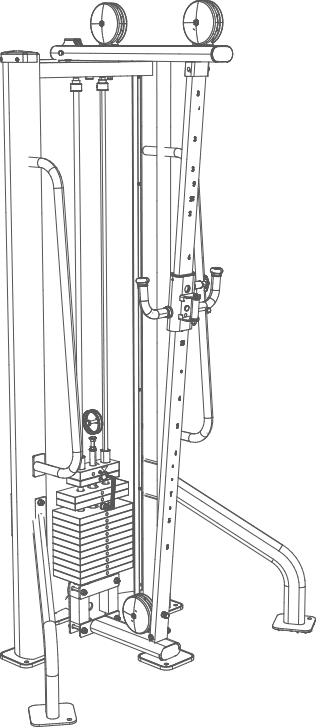

The L535B Ergoline is a versatile strength training machine designed for all fitness levels. With a reduced weight load and compact design, it allows users to perform a wide range of exercises targeting both upper and lower body muscles. Ideal for beginners or rehabilitation settings, it provides smooth motion and a safe training environment.
Dimensions & Technical Data:
Length: 1385 mm
Width: 891 mm
Height: 2247 mm
Weight: 208.8 kg
Load: 110 kg
Structure reinforced with anti-corrosive paint
Rounded tube frame
5 mm thick braided steel cable
Mechanical Specifications:
Cam-based system for uniform resistance
Magnetized weight selector
Comfort Features:
Optional multi-position handlebar
Weight indicators in 3 colors
Instructional graphic panel
Nonslip handgrips
End
Purpose:
The L535B Ergoline is a versatile strength training machine designed for all fitness levels. With a reduced weight load and compact design, it allows users to perform a wide range of exercises targeting both upper and lower body muscles. Ideal for beginners or rehabilitation settings, it provides smooth motion and a safe training environment.
Dimensions & Technical Data:
Length: 1385 mm
Width: 891 mm
Height: 2247 mm
Weight: 208.8 kg
Load: 110 kg
Structure reinforced with anti-corrosive paint
Rounded tube frame
5 mm thick braided steel cable
Mechanical Specifications:
Cam-based system for uniform resistance
Magnetized weight selector
Comfort Features:
Optional multi-position handlebar
Weight indicators in 3 colors
Instructional graphic panel
Nonslip handgrips
End
Download the multistation Ergoline L535B Spec Sheet
Get all the technical details and specifications in one place. Download the PDF Spec Sheet below to explore dimensions, features, and performance data.
