Auto rocker Robinio / metal base

Single-seat spring rocker designed for independent play, suitable for public playgrounds and early childhood outdoor environments.

Purpose
The Robinio Auto Spring Rocker is a compact playground device designed for individual play that supports balance, coordination, and body control. Children sit on the rocker and use body movement to create a gentle rocking motion, developing motor coordination and spatial awareness in a controlled and safe way. The themed car shape encourages imaginative play and role-based scenarios. The equipment is suitable for kindergartens, municipal playgrounds, parks, and other public recreational areas intended for young children.

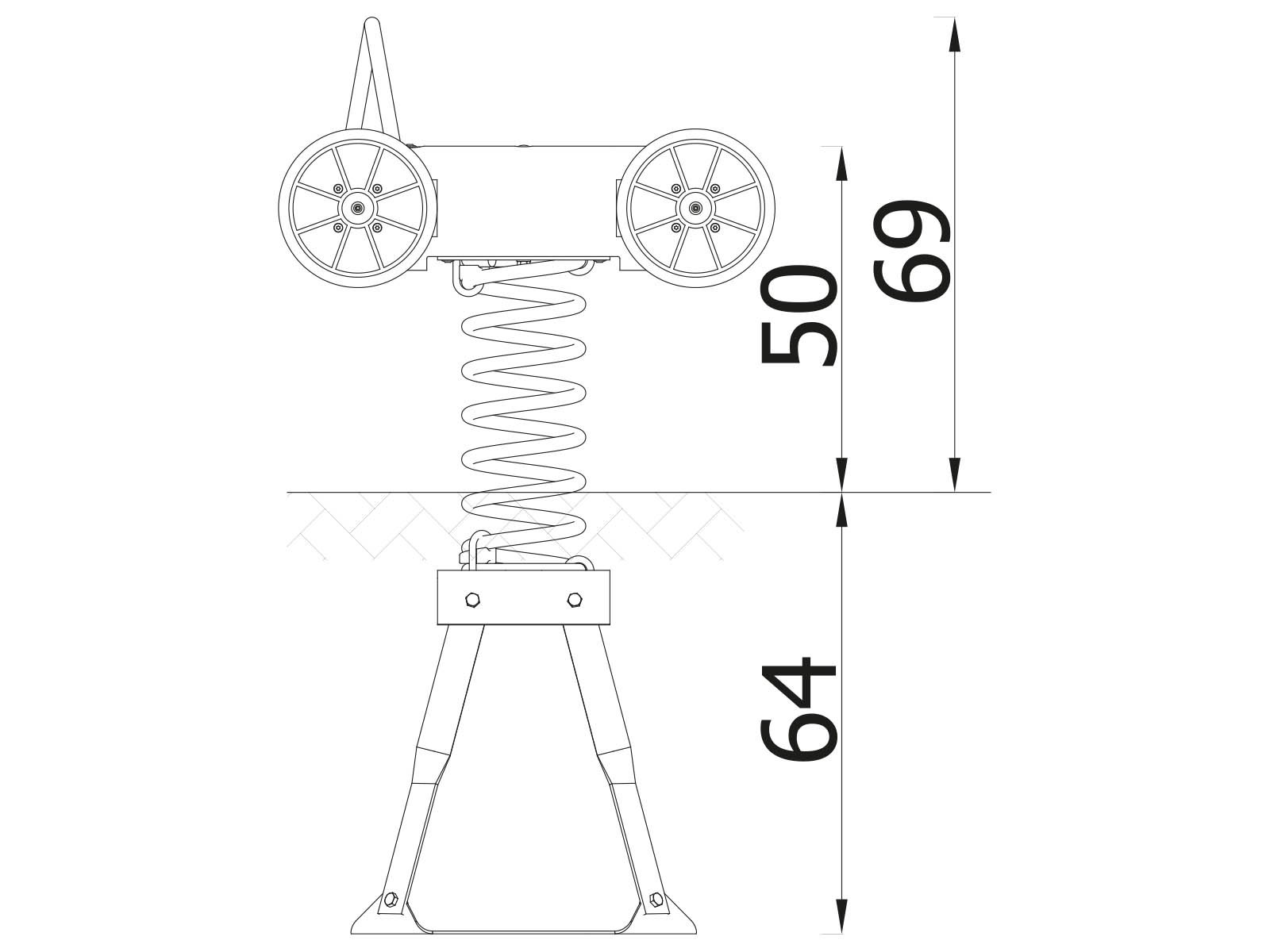

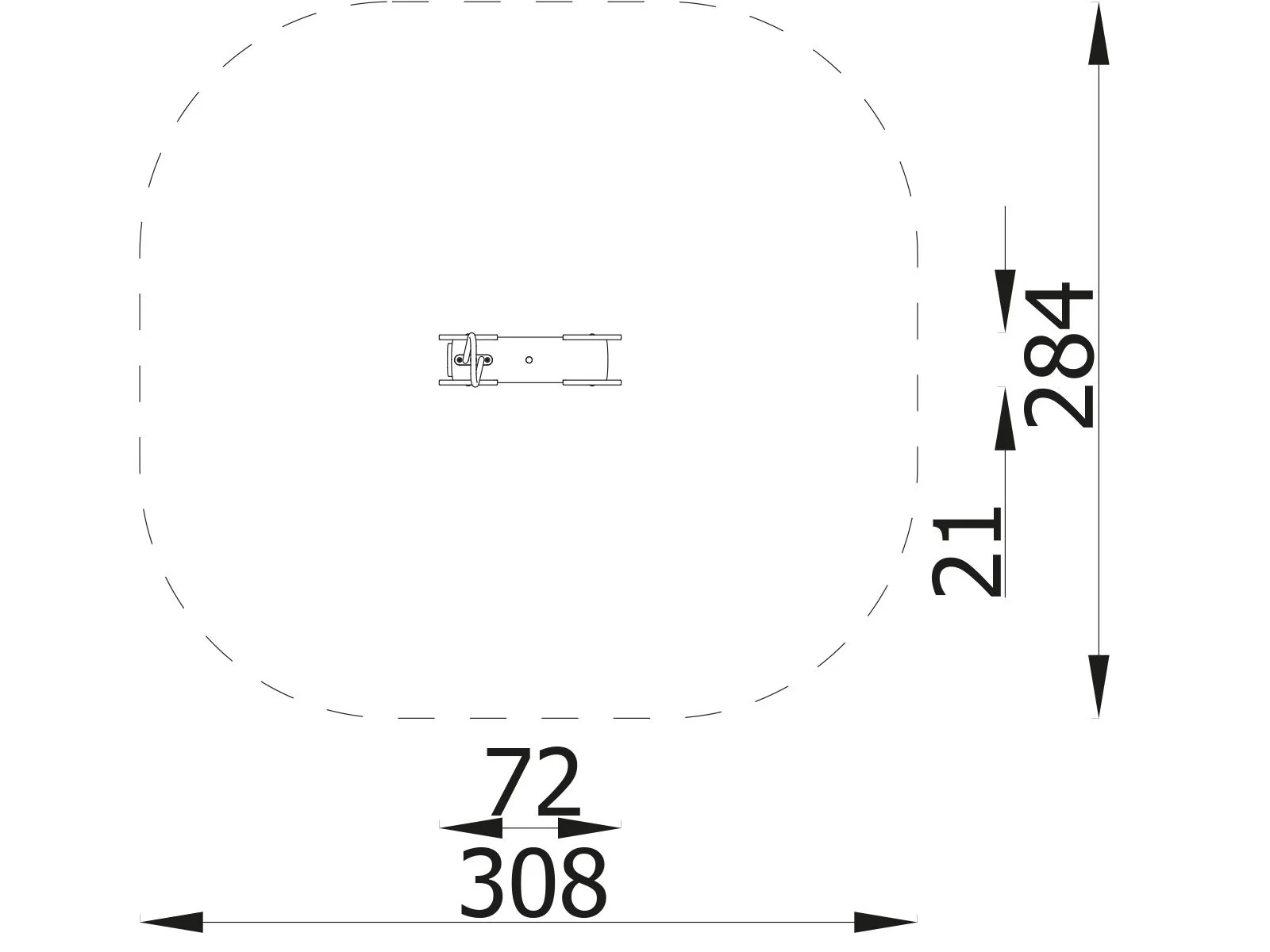

Dimensions & Technical Data

• Length: 0.72 m

• Width: 0.21 m

• Height: 0.69 m

• Maximum fall height: 0.60 m

• Recommended age group: 1–12 years

• Maximum number of users: 1

• Installation type: Metal anchor embedded in concrete, direct ground installation according to installation instructions

Materials & Construction

• Main structural elements made of S235 steel

• Seat beam made of robinia (acacia) wood

• Panels made of high density polyethylene (HDPE), 15 mm thick

• Handles and additional elements made of stainless steel

• Spring made of galvanized steel with powder coating

• Polyethylene insert inside the spring to prevent finger pinching

• All connectors and fittings are weather-resistant and UV-resistant

• Designed for permanent outdoor installation

Equipment List

• 1 × single-seat spring rocker in car design

• 1 × metal anchor for concrete installation

Safety & Standards

• Single-seat design with clearly defined sitting position

• Ergonomic handles and stable footrests for secure grip

• Spring mechanism with internal safety insert to reduce pinching risk

• Maximum free fall height limited to 0.60 m

• Stable anchoring system for public playground use

• Designed for supervised environments

• Complies with EN 1176 playground safety standard

Benefits for Children

• Supports development of balance and motor coordination

• Encourages body control and controlled movement

• Stimulates imagination through themed role play

• Builds confidence through independent play

• Suitable for early childhood physical development
