Climber Robinio 1

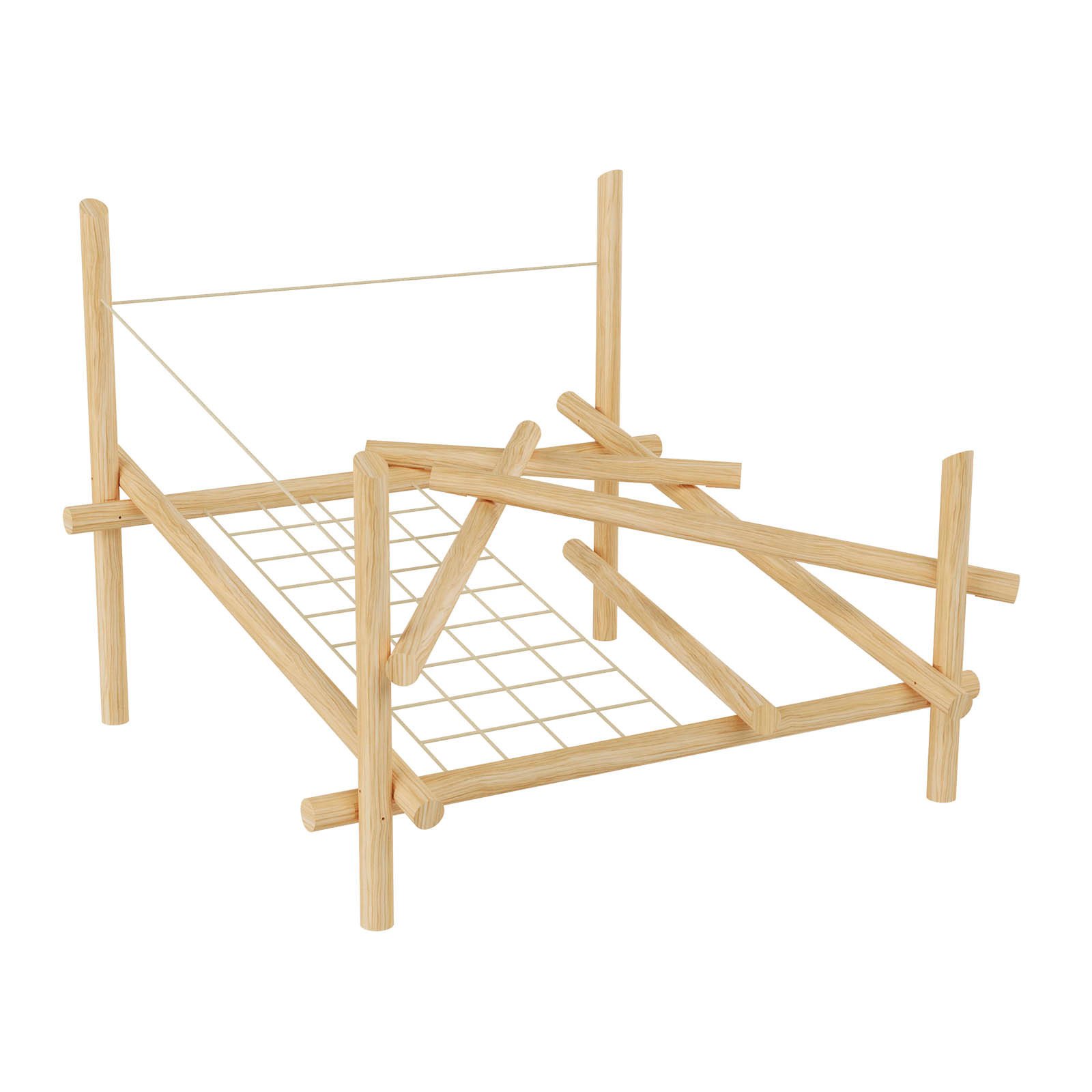

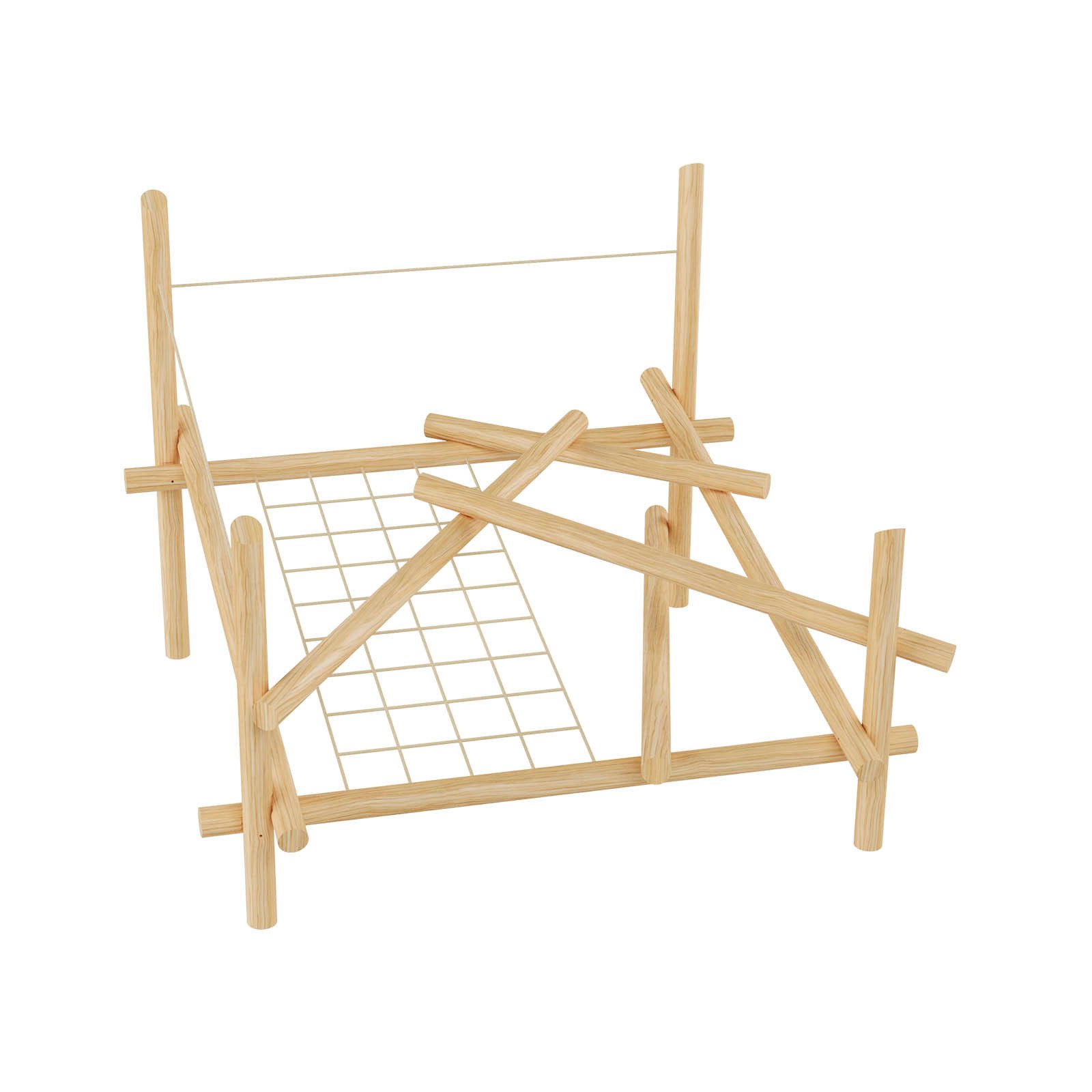

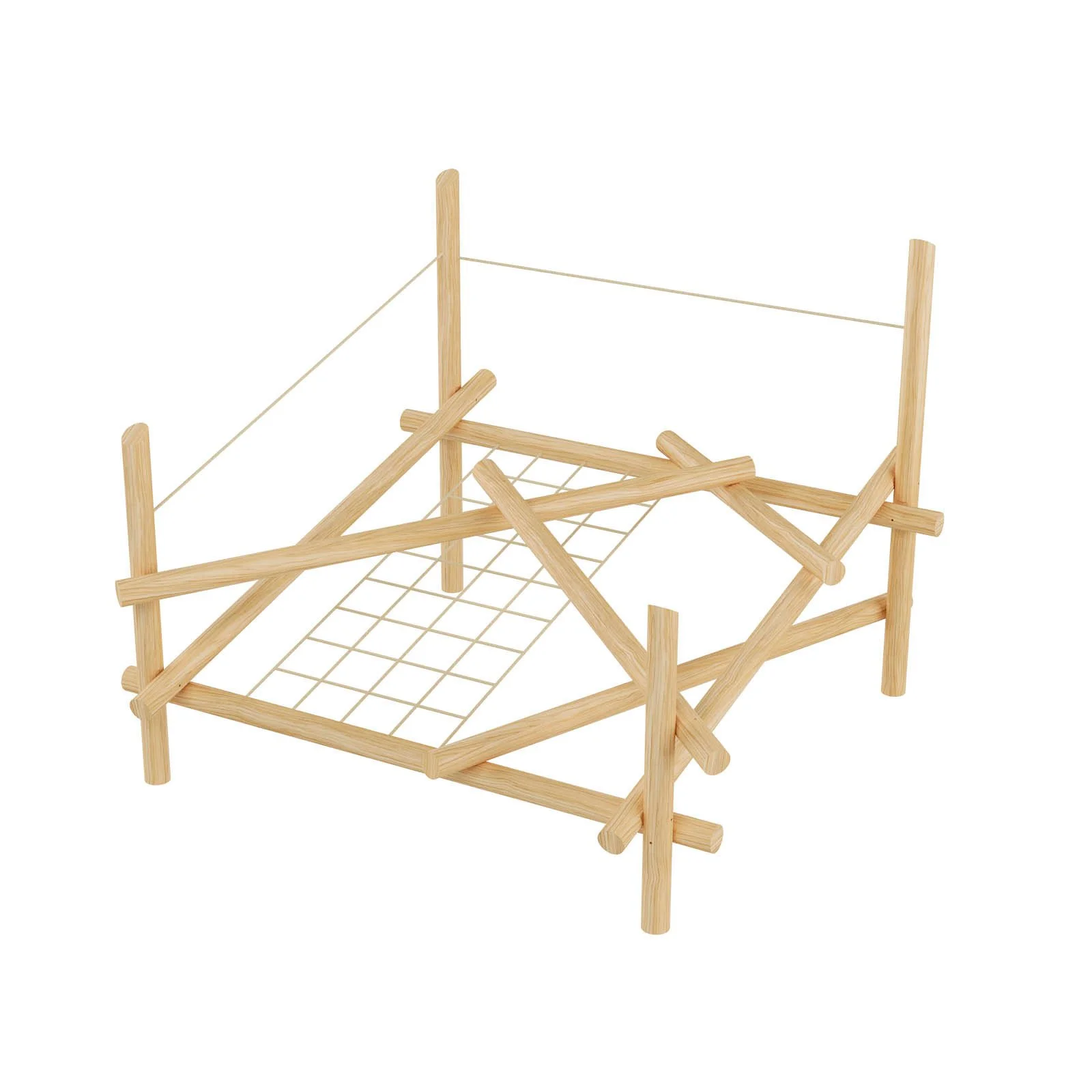

A wooden climbing structure designed for active group play in public outdoor playgrounds.

Purpose
This climbing structure is designed for children aged 3 to 14 years and allows up to thirteen users to play at the same time. It supports full-body physical activity through climbing, passing through, and hanging, helping to develop strength, endurance, coordination, agility, and flexibility while encouraging confidence and balanced motor development in a shared play environment.

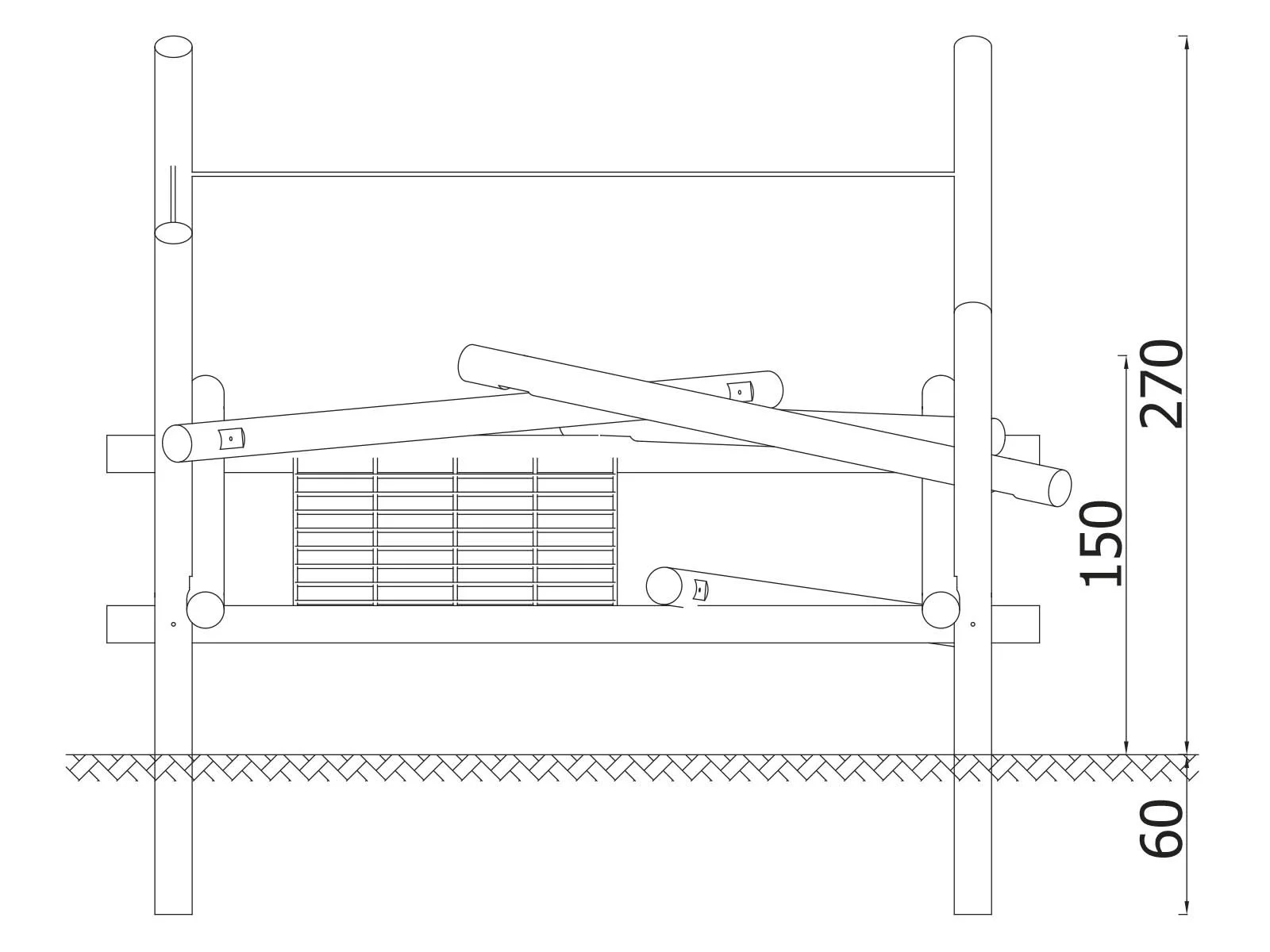

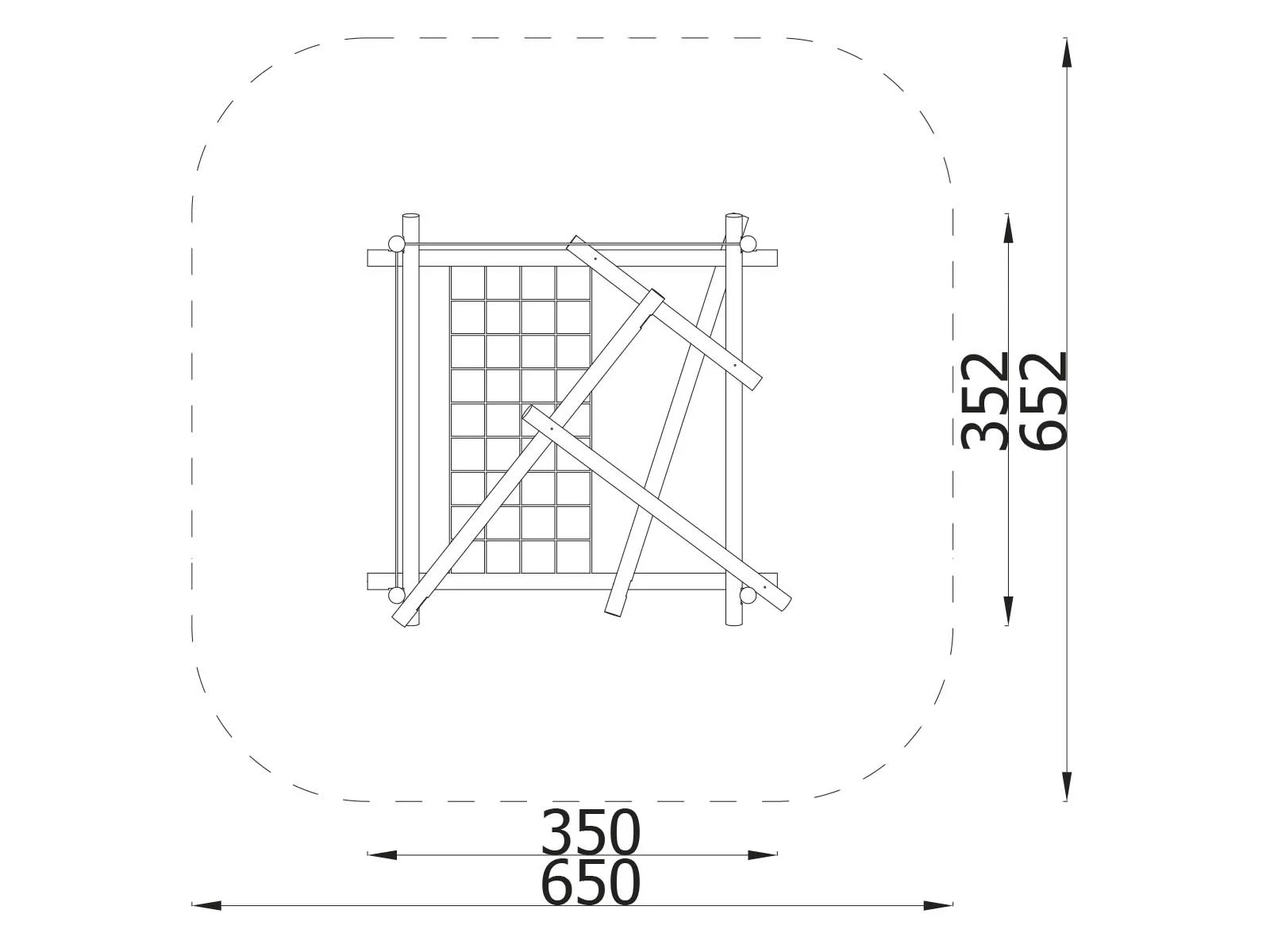

Dimensions & Technical Data

• Length: 3.52 m

• Width: 3.50 m

• Height: 2.70 m

• Maximum fall height: 1.50 m

• User age range: 3–14 years

• Number of users: 13

Materials & Construction

• Support posts made of robinia acacia wood

• Structural beams made of robinia acacia wood

• Polypropylene ropes with a diameter of 16 mm, reinforced with a steel core

• Weather-resistant and UV-resistant connectors and fittings

• Anchored directly into the ground according to installation instructions

Equipment List

• 1× log structure

• 1× rope net

• 2× horizontal rope

Safety & Standards

• Complies with EN 1176-1+A1:2024-03
