Download Technical Documentation For The Climbing net Robinio

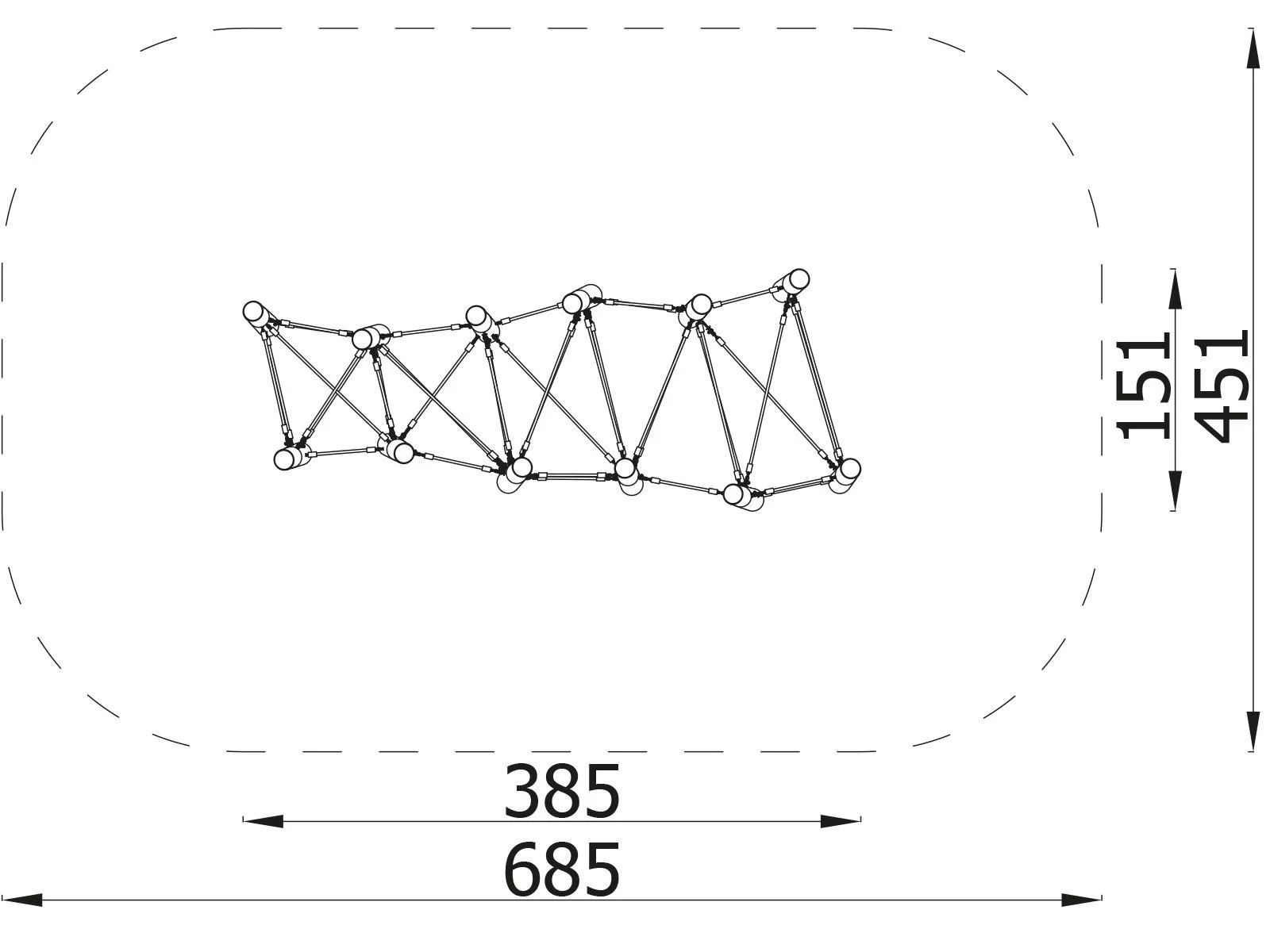

The technical card and top-view DWG file provide key dimensions and layout information for architectural and landscape planning.
Purpose

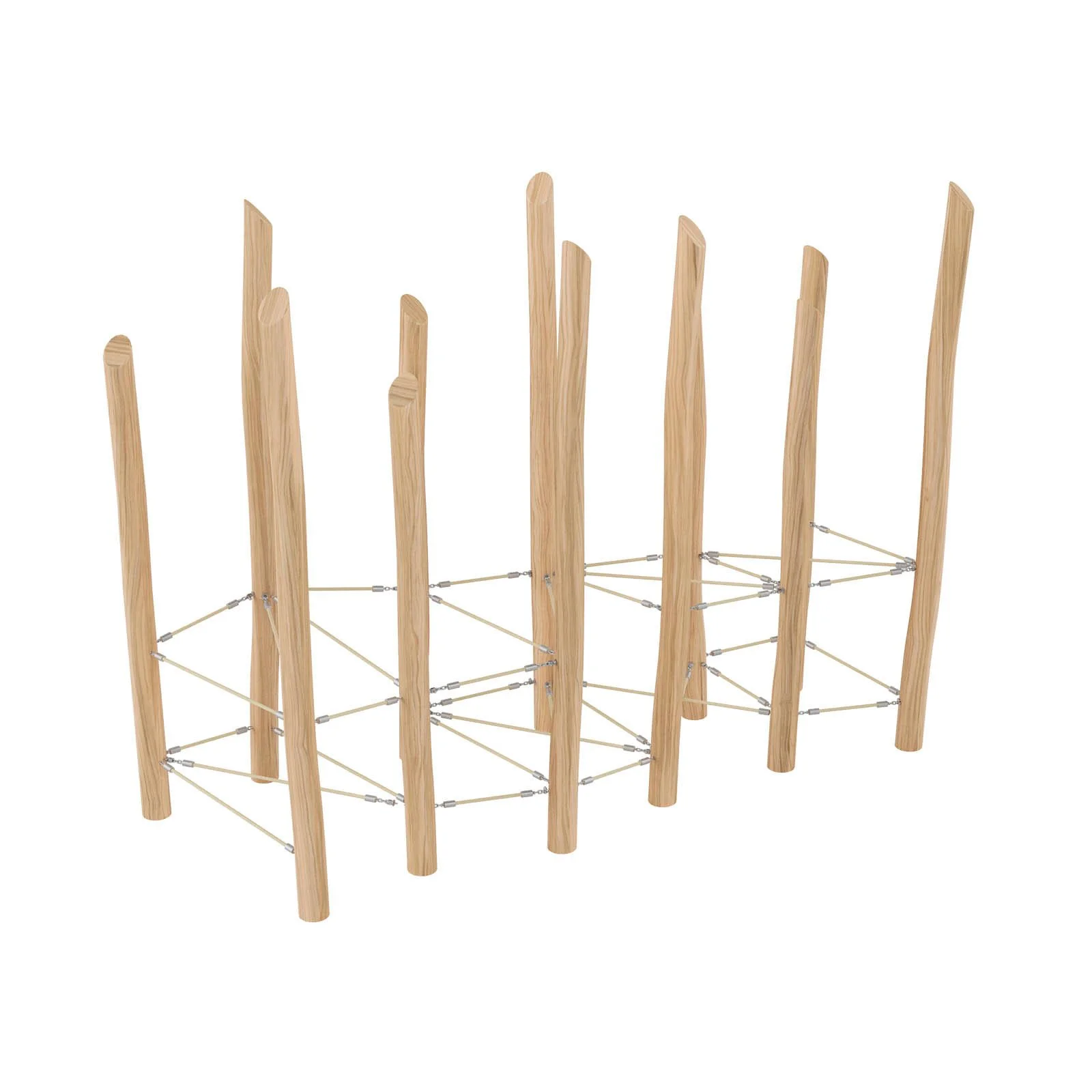

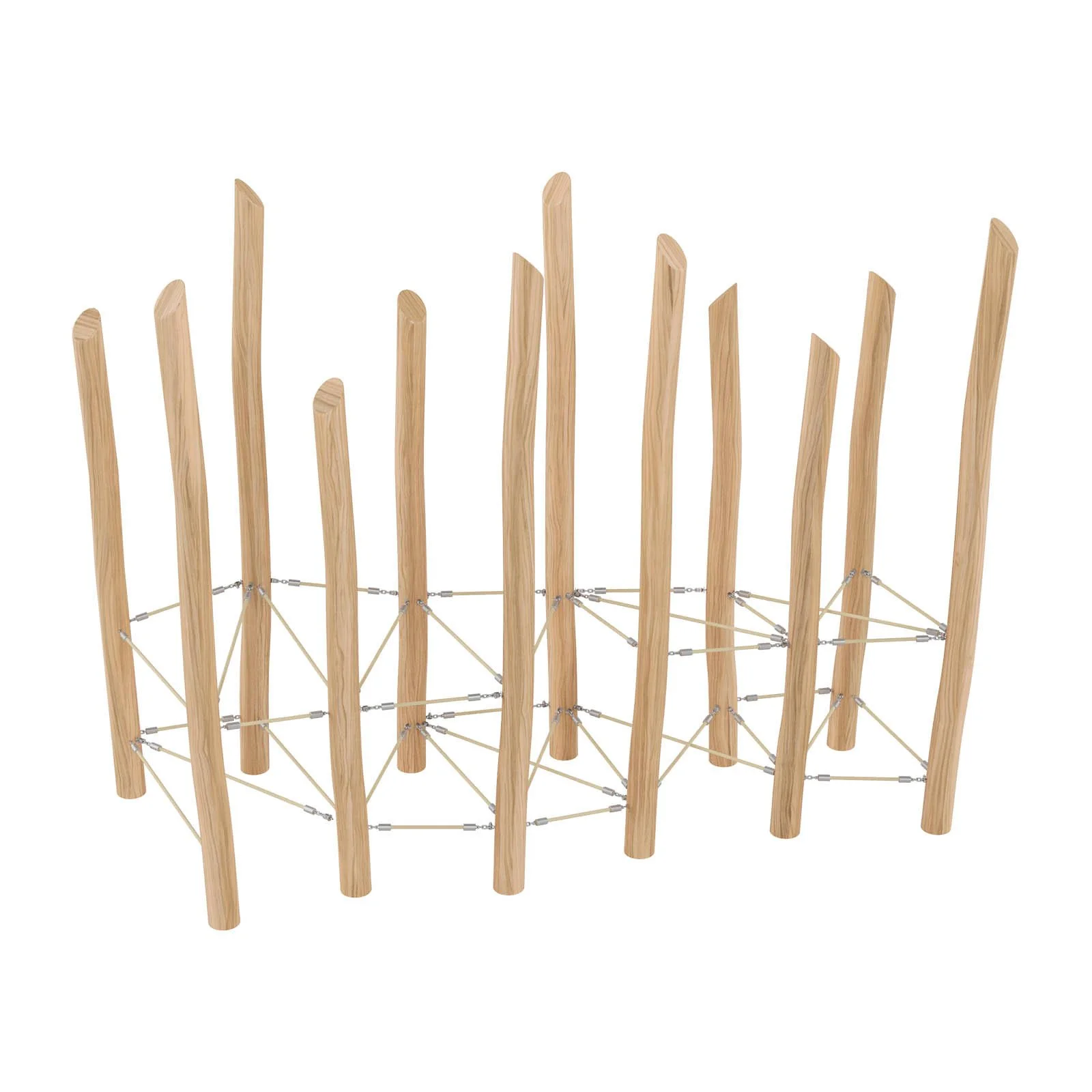

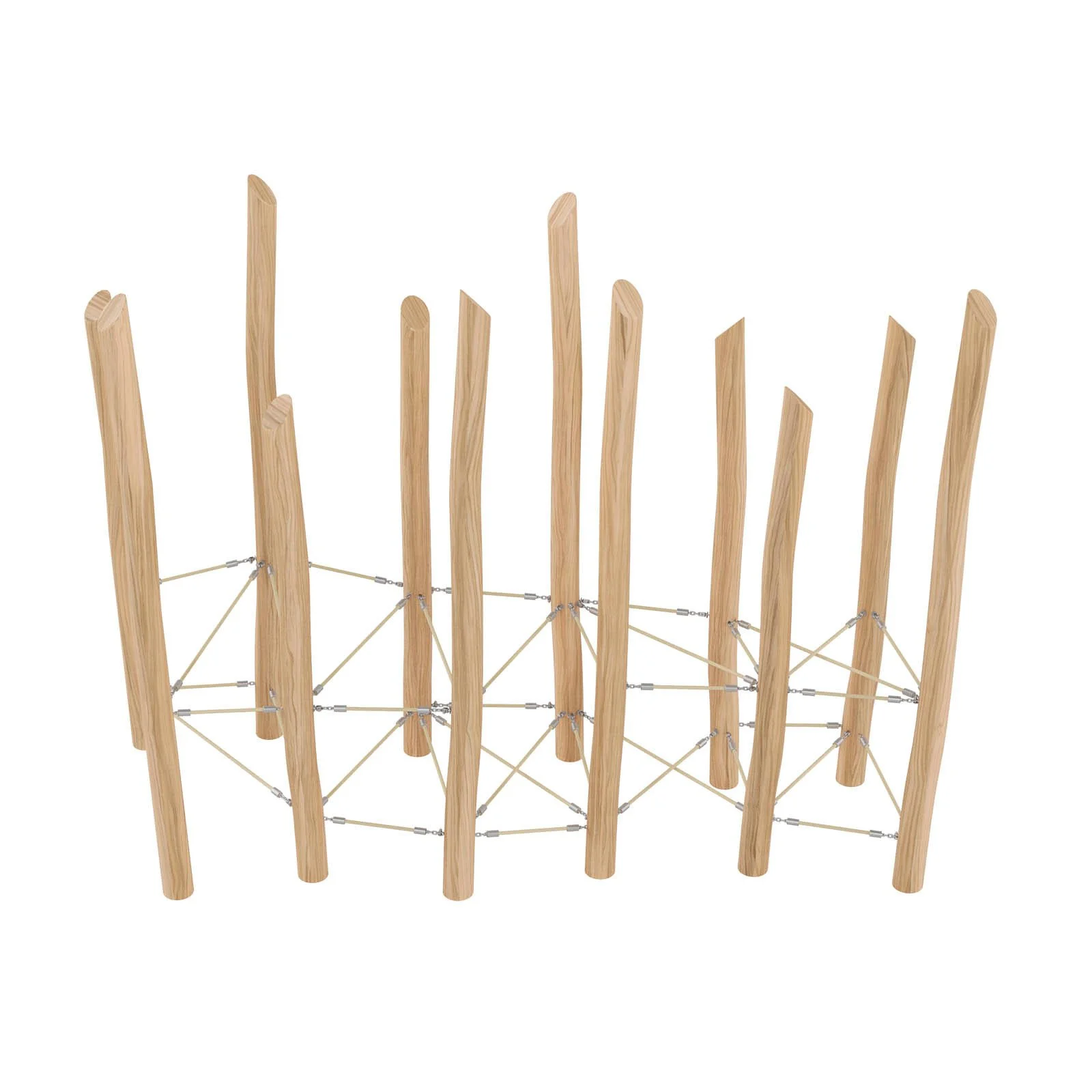

This climbing net structure is designed for children aged 3 to 14 years and allows up to six users to play at the same time. The open rope layout encourages climbing, balancing, and coordinated movement from multiple directions, offering children a physically engaging play experience. The structure supports free movement and exploration while allowing children to challenge themselves individually or play together in a shared space, making it well suited for public playgrounds with mixed-age users.

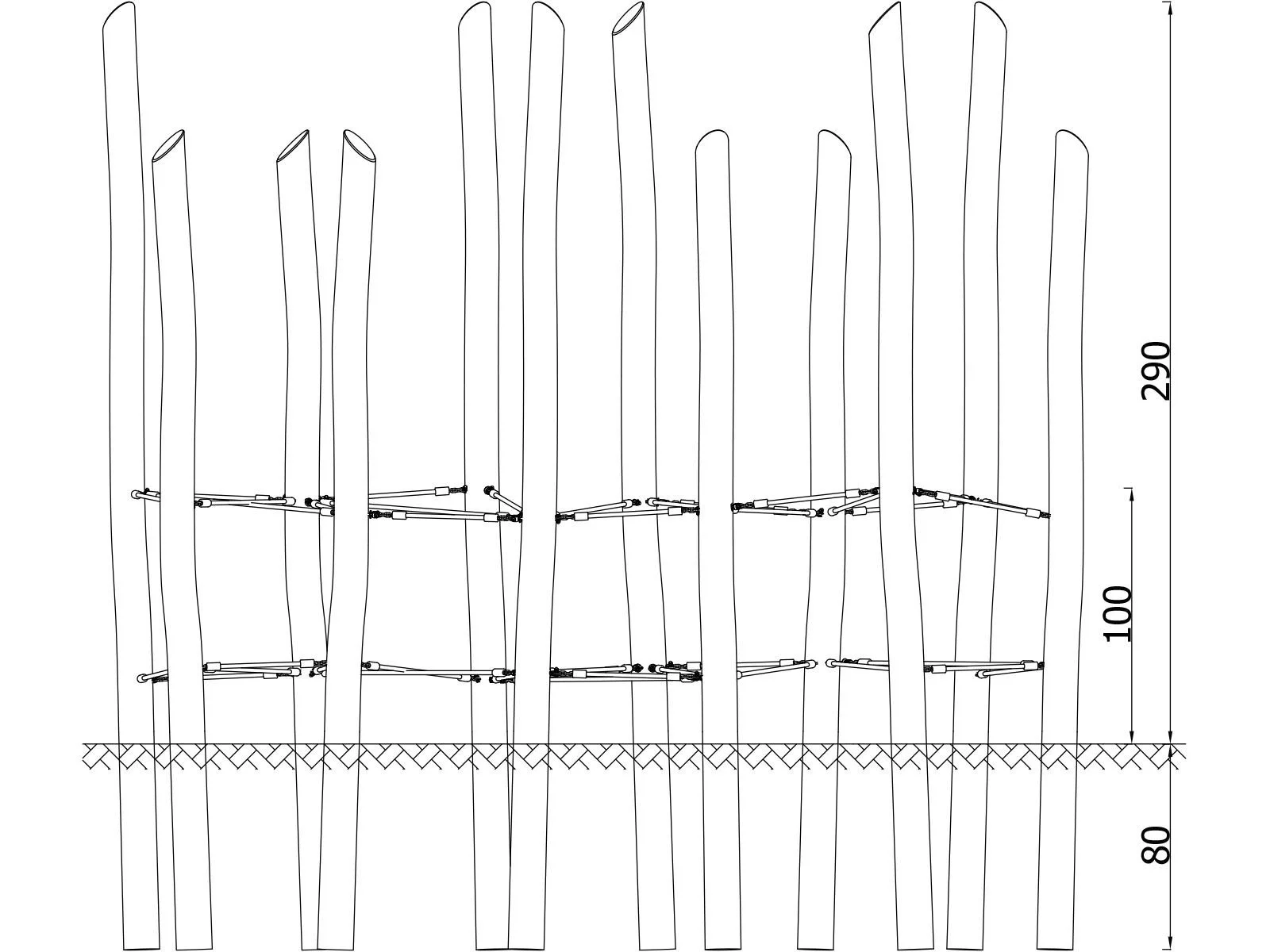

Dimensions & Technical Data
Length: 3.85 m
Width: 1.51 m
Height: 2.90 m
Maximum fall height: 1.00 m
User age range: 3–14 years
Number of users: 6
Materials & Construction
Support posts made of robinia acacia wood
Polypropylene ropes with a diameter of 16 mm, reinforced with a steel core
Weather-resistant and UV-resistant connectors and fittings
Anchored directly into the ground according to installation instructions
Equipment List
1× rope pyramid
Benefits for Kids
Improves balance, coordination, and spatial awareness
Strengthens muscles through climbing, gripping, and body control
Encourages active movement and healthy energy release
Develops problem-solving skills through route planning and body positioning
Supports confidence building by overcoming physical challenges
Promotes social interaction and cooperative play when used by multiple children
Safety & Standards
Complies with EN 1176-1+A1:2024-03
End
