Outdoor Squat Trainer LS0597

Professional Outdoor Squat Machine with Adjustable Load

Purpose:
The Outdoor Squat Trainer is engineered to develop lower-body strength through a guided squat motion that follows natural biomechanics. The machine supports stable posture and smooth movement, enabling progressive resistance for all training levels in outdoor fitness environments.

Technical Specifications:

• Length: 2590 mm

• Width: 955 mm

• Height: 2095 mm

• Machine weight: 235 kg

• Operating weight range: 5–60 kg

• Optional custom weight blocks available upon request

• Manufactured in accordance with EN 16630 standards

• Color Standard: RAL7021, RAL5015

• Color Optional: RAL1037, RAL3020, RAL1019

Mechanical Specifications:

• Integrated weight-lifting mechanism for progressive resistance

• Motion system designed to replicate natural squat biomechanics

• Height-adjustable structural components for correct user alignment

• Adjustable foot support for balanced and stable posture

Construction:

• Hot-dip galvanized steel for superior corrosion protection

• Electrostatic powder-coated surfaces for long-lasting durability

• 4 mm steel profiles engineered for high vandal resistance

• Stainless steel bolts and screws suitable for all outdoor conditions

• Heavy-duty structure designed for intensive public use

Comfort Features:

• 19 mm HDPE contact surfaces providing weatherproof comfort

• Ergonomic design supporting upright posture and proper movement form

• UV-resistant instruction panel for long-term outdoor readability

• QR code providing access to exercise demonstration videos

Advantages:

• Adjustable weight system suitable for all users—from beginners to professional heavy lifters

• Developed with professional athletes for accurate movement geometry

• Manufactured using premium raw materials for extended durability

• Personalized resistance enabled by the integrated mechanical system

• Certified outdoor fitness equipment ideal for municipal, military and public sports zones

Optional Customizations

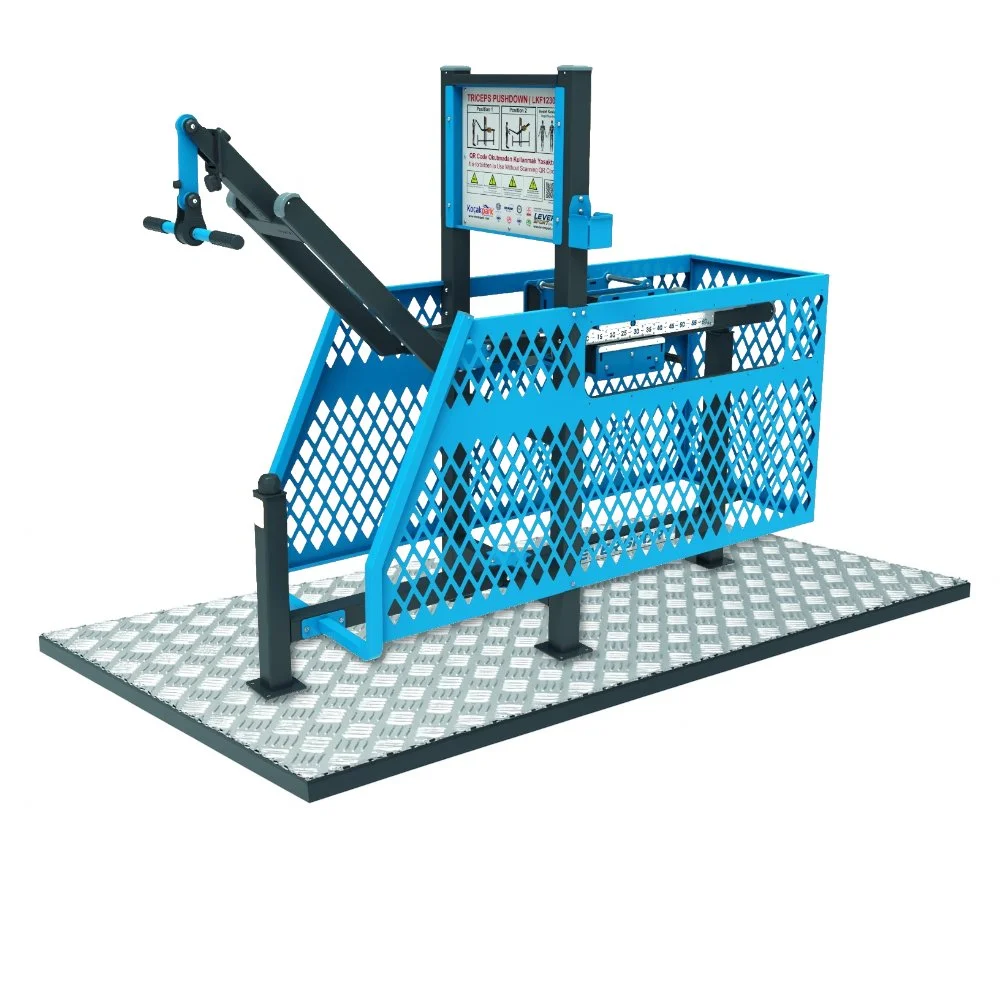

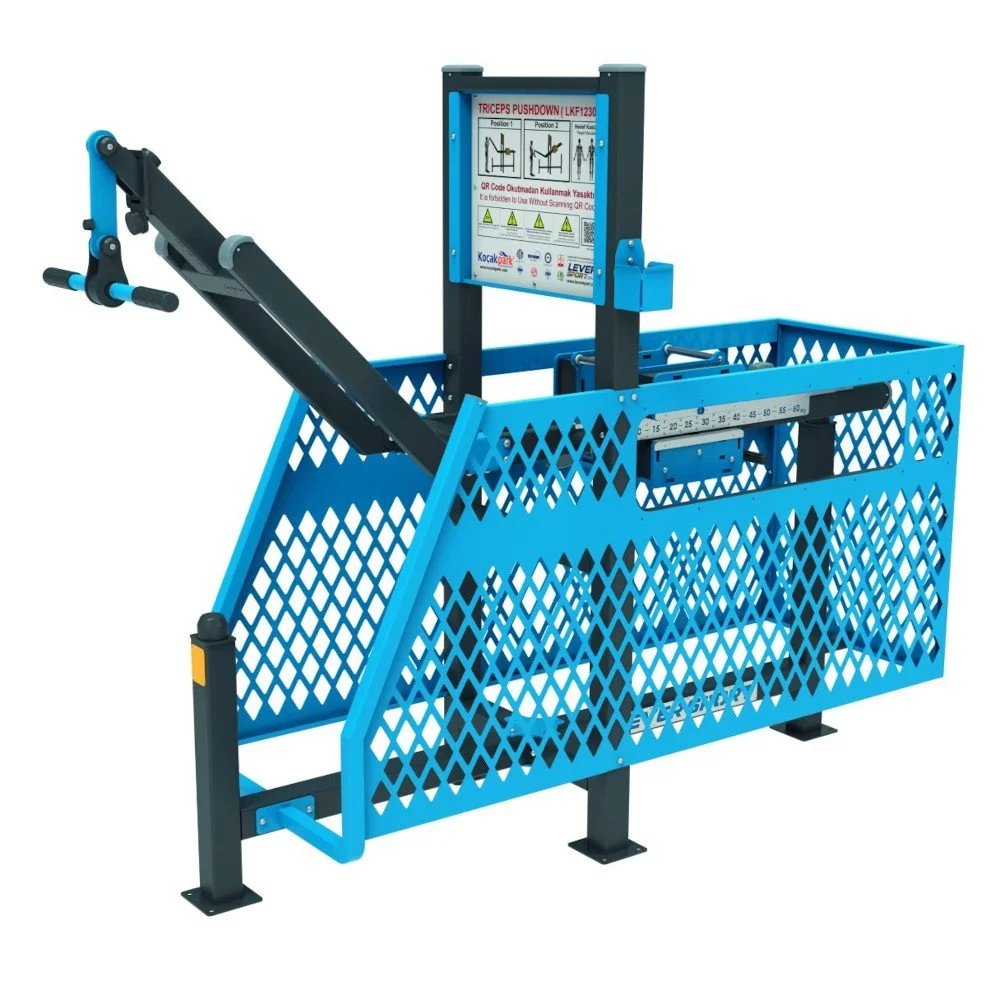

• This machine can be upgraded with optional safety and comfort features. You can choose between a steel platform for improved footing, or a protective panel that encloses the machine for added safety.
