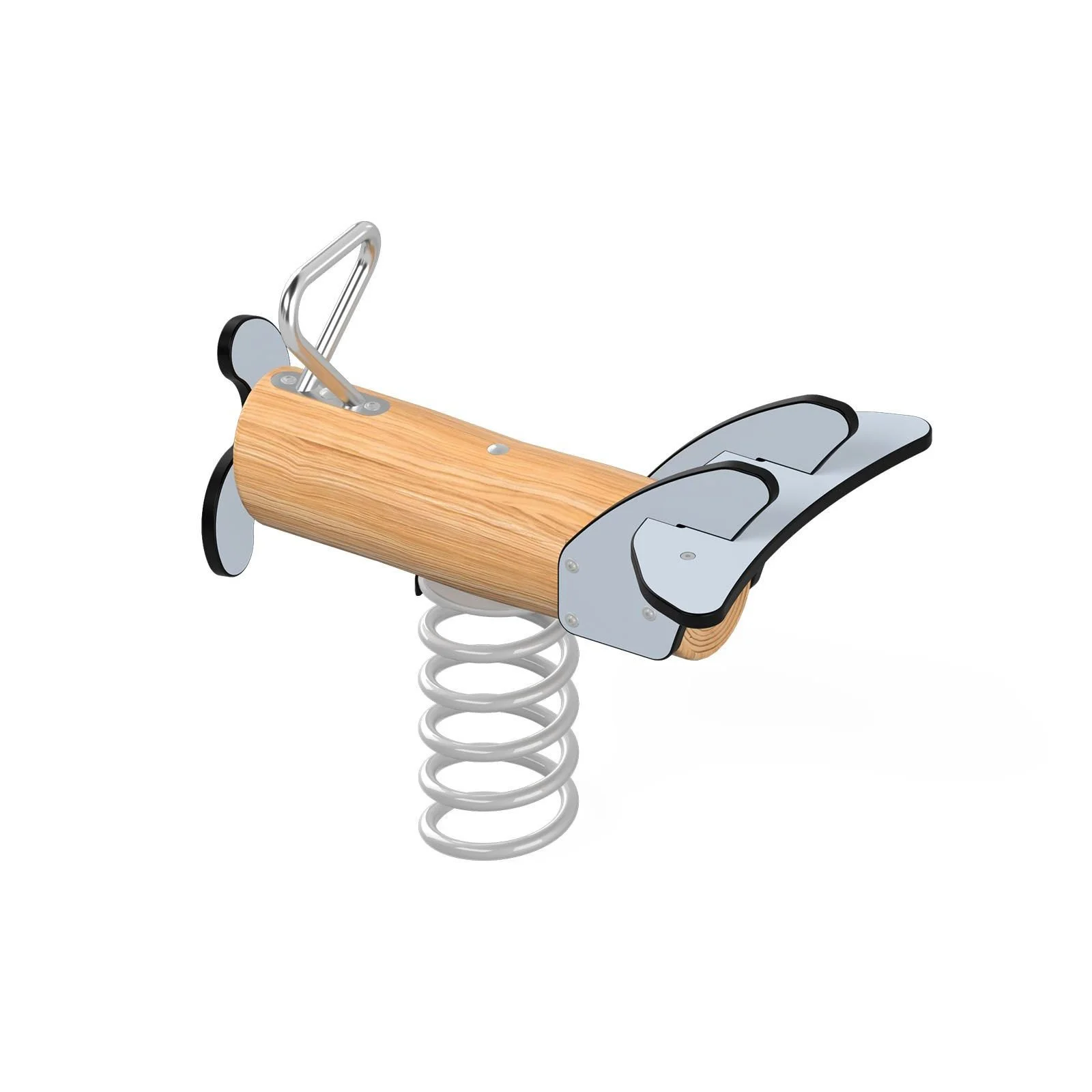

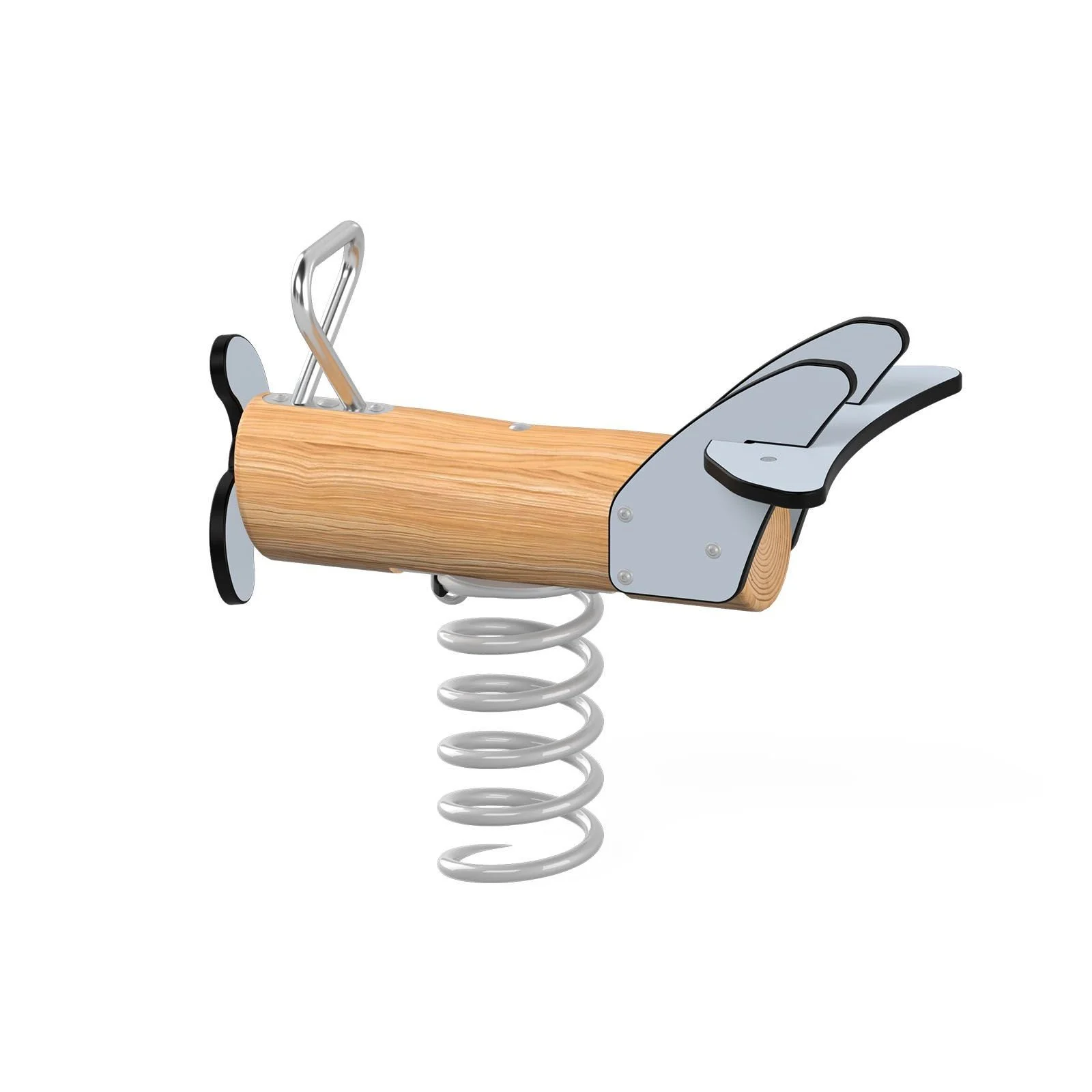

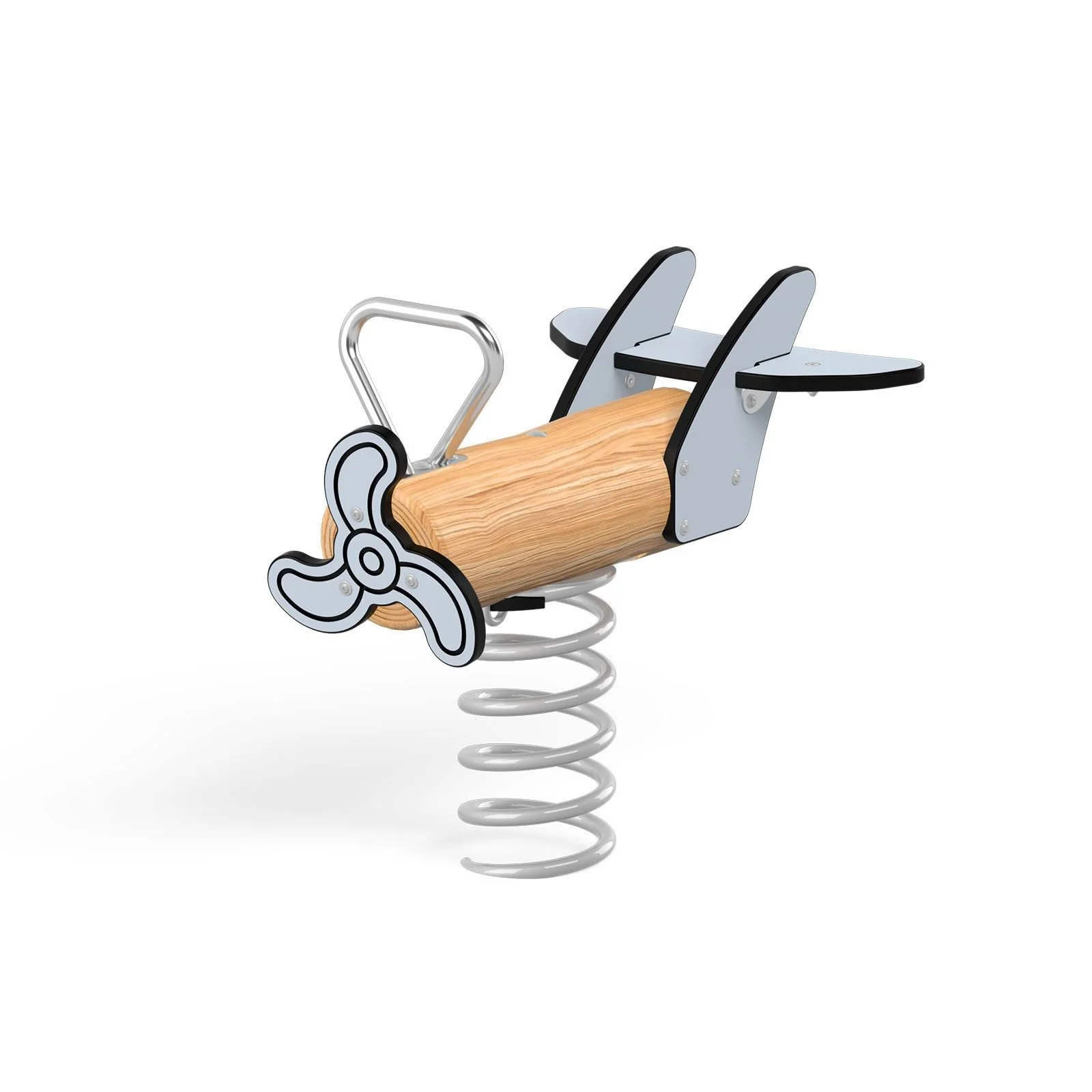

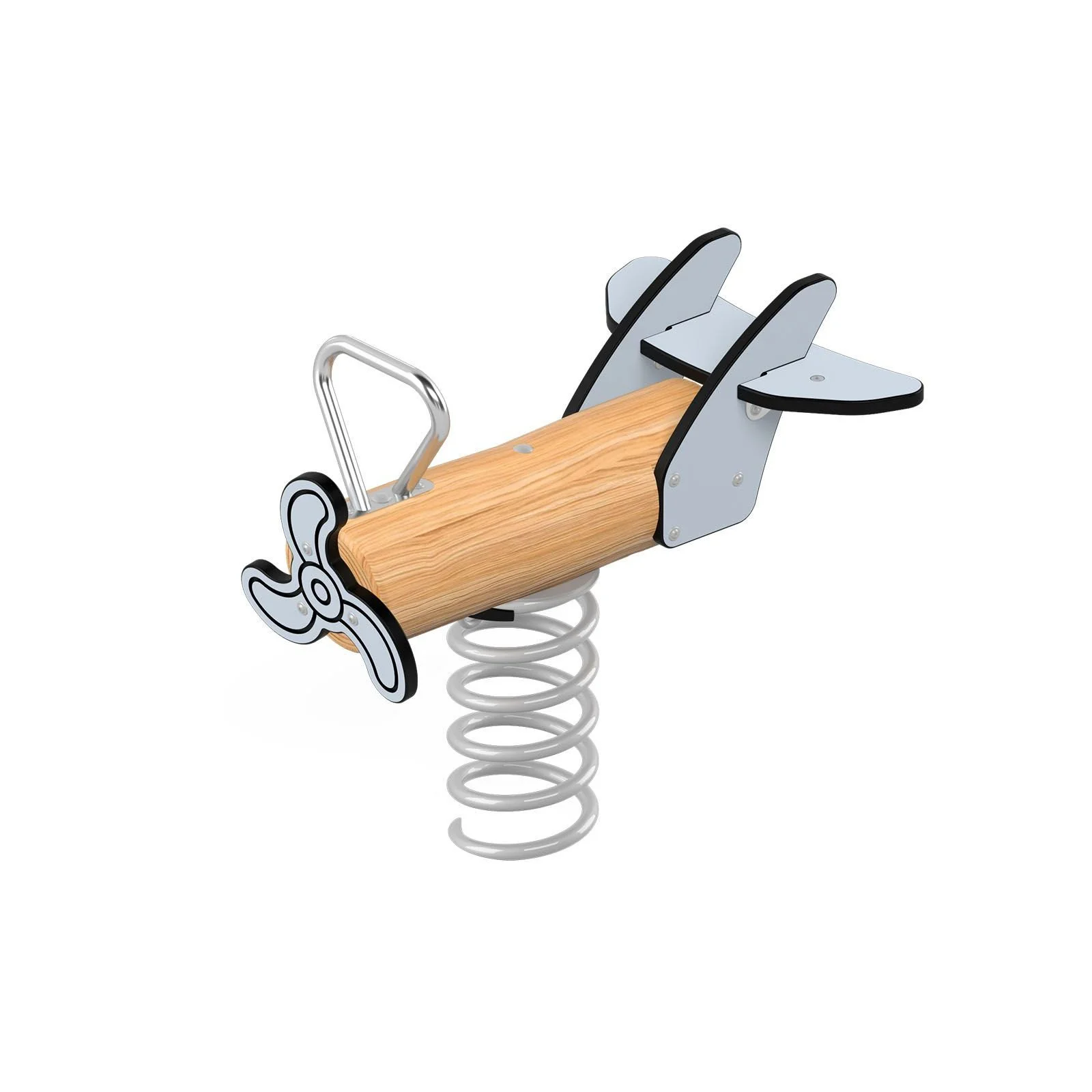

Plane rocker Robinio / metal base

Single-seat spring rocker designed for individual play, suitable for public playgrounds and early childhood outdoor environments.

Purpose
The Robinio Plane Spring Rocker is a compact playground device intended for individual play that supports balance, coordination, and controlled body movement. Children sit on the rocker and generate motion using their body weight, helping develop motor skills, spatial awareness, and confidence in a safe and intuitive way. The airplane-themed design encourages imaginative and role-based play. The equipment is suitable for kindergartens, municipal playgrounds, parks, and other public recreational spaces designed for young children.

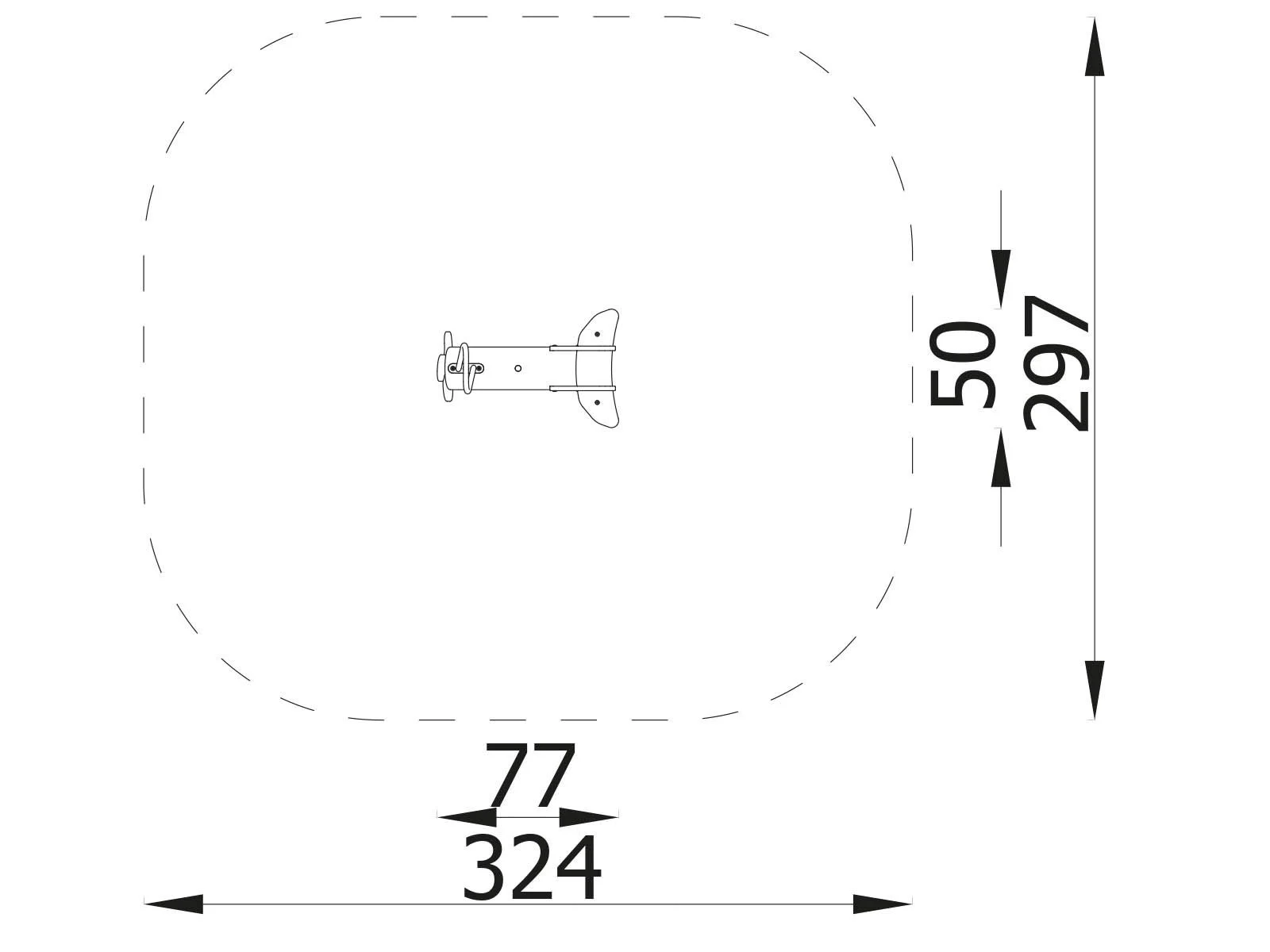

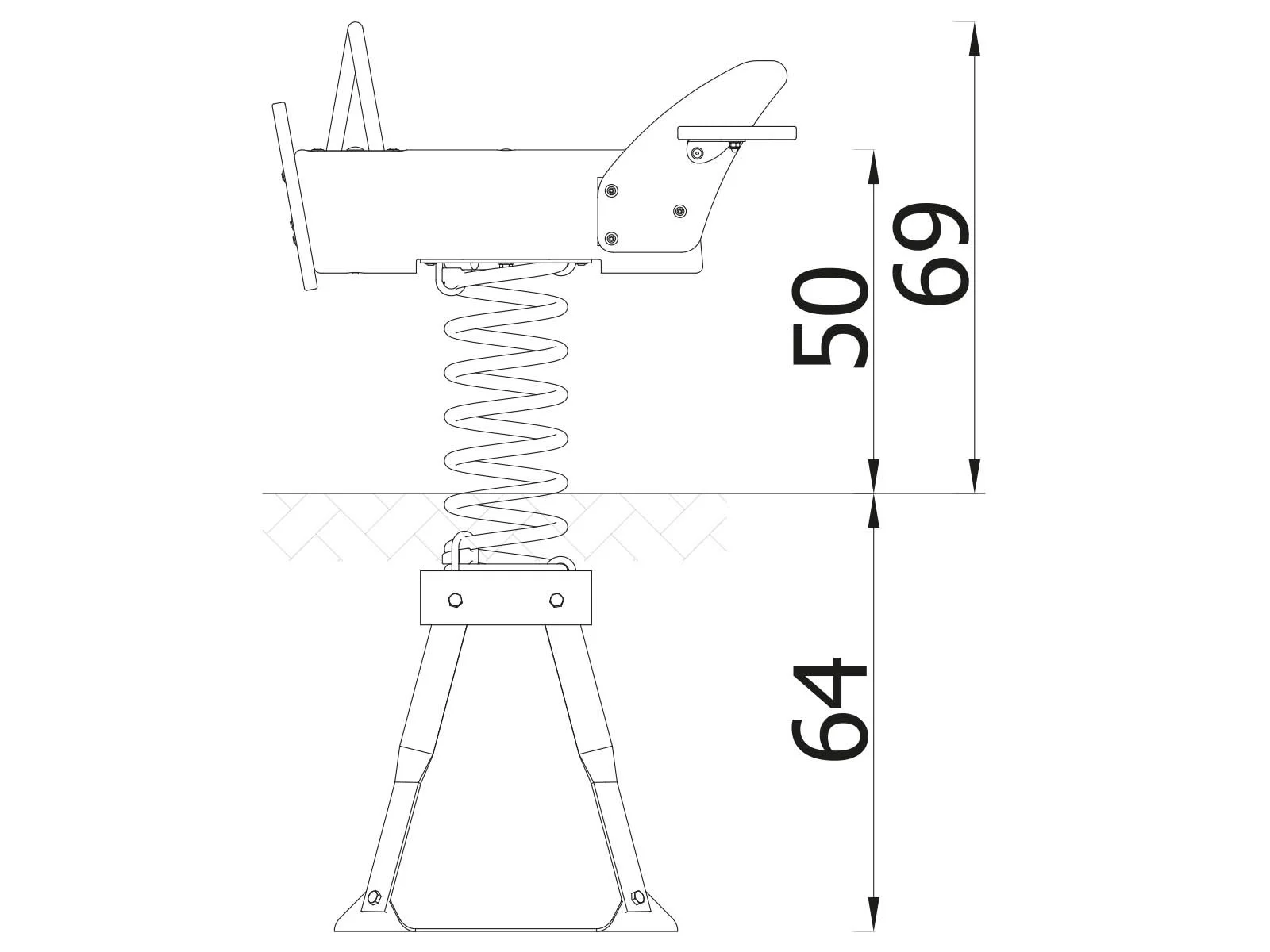

Dimensions & Technical Data

• Length: 0.77 m

• Width: 0.50 m

• Height: 0.69 m

• Maximum fall height: 0.60 m

• Recommended age group: 1–12 years

• Maximum number of users: 1

• Installation type: Metal anchor embedded in concrete, direct ground installation according to installation instructions

Materials & Construction

• Main structural elements made of S235 steel

• Seat beam made of robinia (acacia) wood

• Panels made of high density polyethylene

• Handles and footrests made of stainless steel

• Spring made of galvanized steel with powder coating

• Polyethylene insert inside the spring to reduce pinching risk

• Steel components protected against corrosion

• All connectors and fittings are weather-resistant and UV-resistant

• Designed for permanent outdoor installation

Equipment List

• 1 × single-seat spring rocker in airplane design

• 1 × metal anchor for concrete installation

Safety & Standards

• Single-seat design with clearly defined sitting position

• Ergonomic handles and stable footrests for secure use

• Spring mechanism designed for controlled rocking motion

• Maximum free fall height limited to 0.60 m

• Stable anchoring system for public playground use

• Designed for supervised environments

• Complies with EN 1176 playground safety standard

Benefits for Children

• Supports balance and motor coordination development

• Encourages body control and spatial awareness

• Stimulates imagination through themed play

• Builds confidence through independent activity

• Suitable for early childhood physical development
