Plane rocker Robinio / concrete base

Single-seat spring rocker designed for individual play, suitable for public playgrounds and early childhood outdoor environments.

Purpose

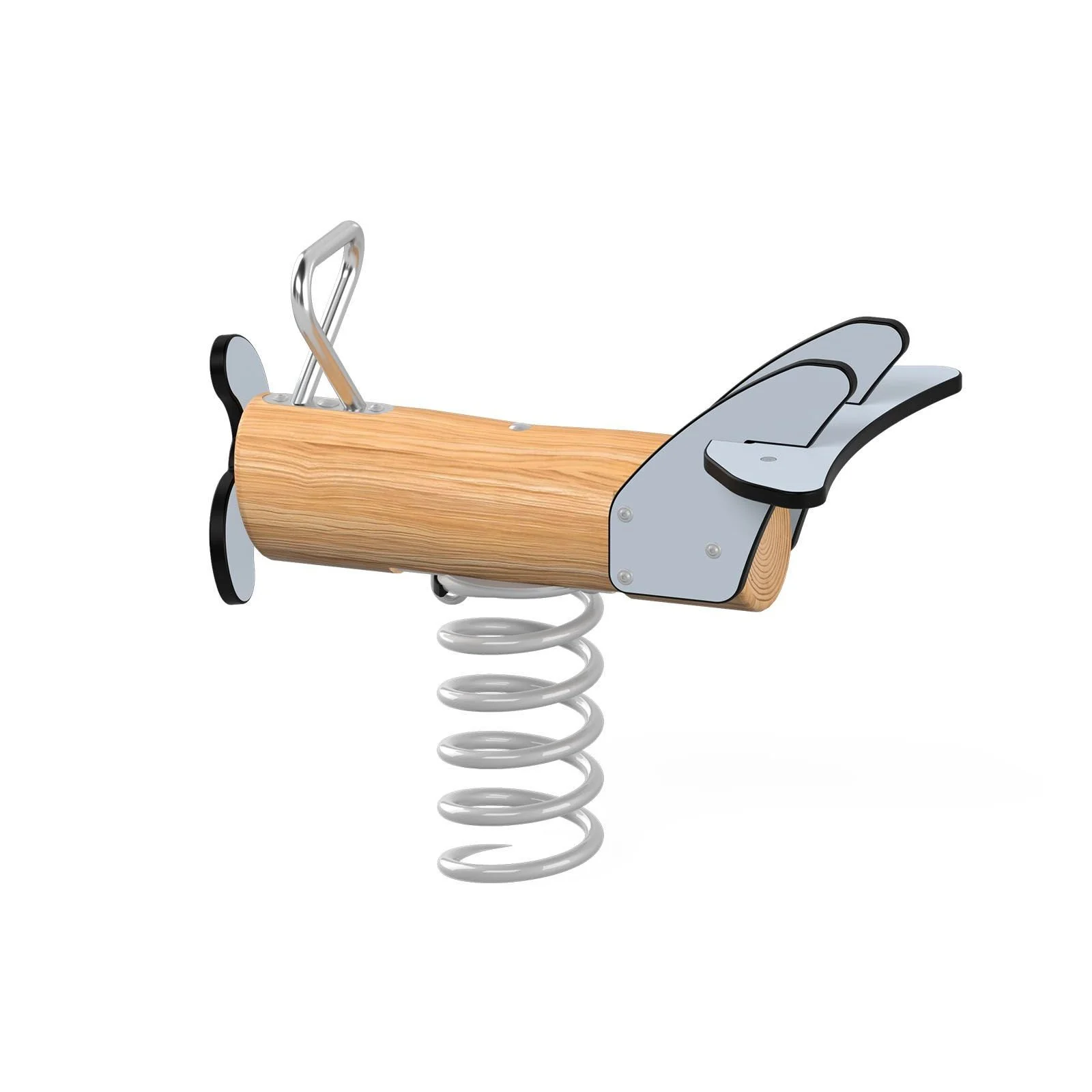

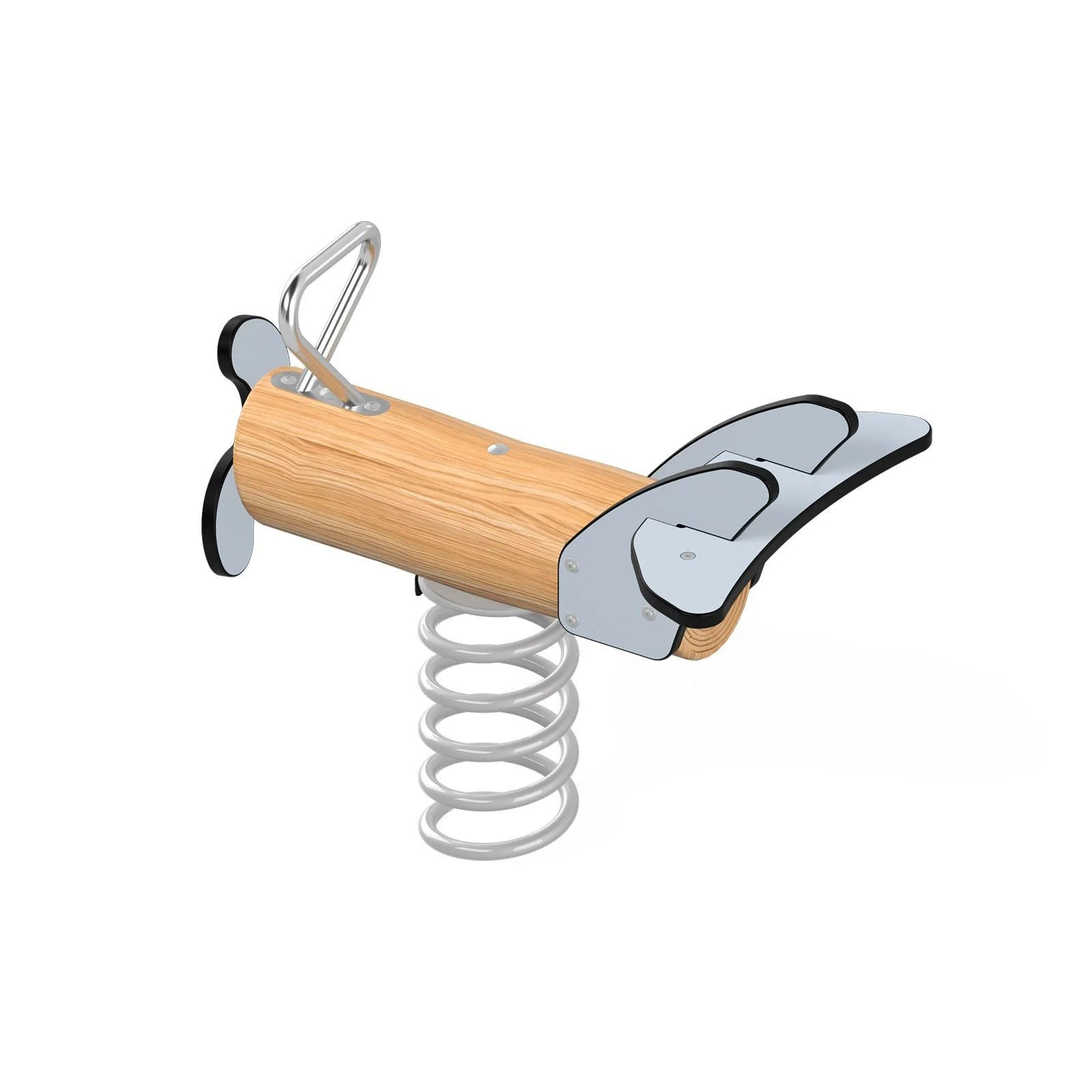

The Robinio Plane Spring Rocker is a compact playground device intended for individual play that supports balance, coordination, and controlled body movement. Children sit on the rocker and create a gentle rocking motion using their body weight, which helps develop motor skills, spatial awareness, and confidence. The airplane-themed form encourages imaginative and role-based play, making it an engaging element for younger children. The equipment is suitable for kindergartens, municipal playgrounds, parks, and other public recreational areas.

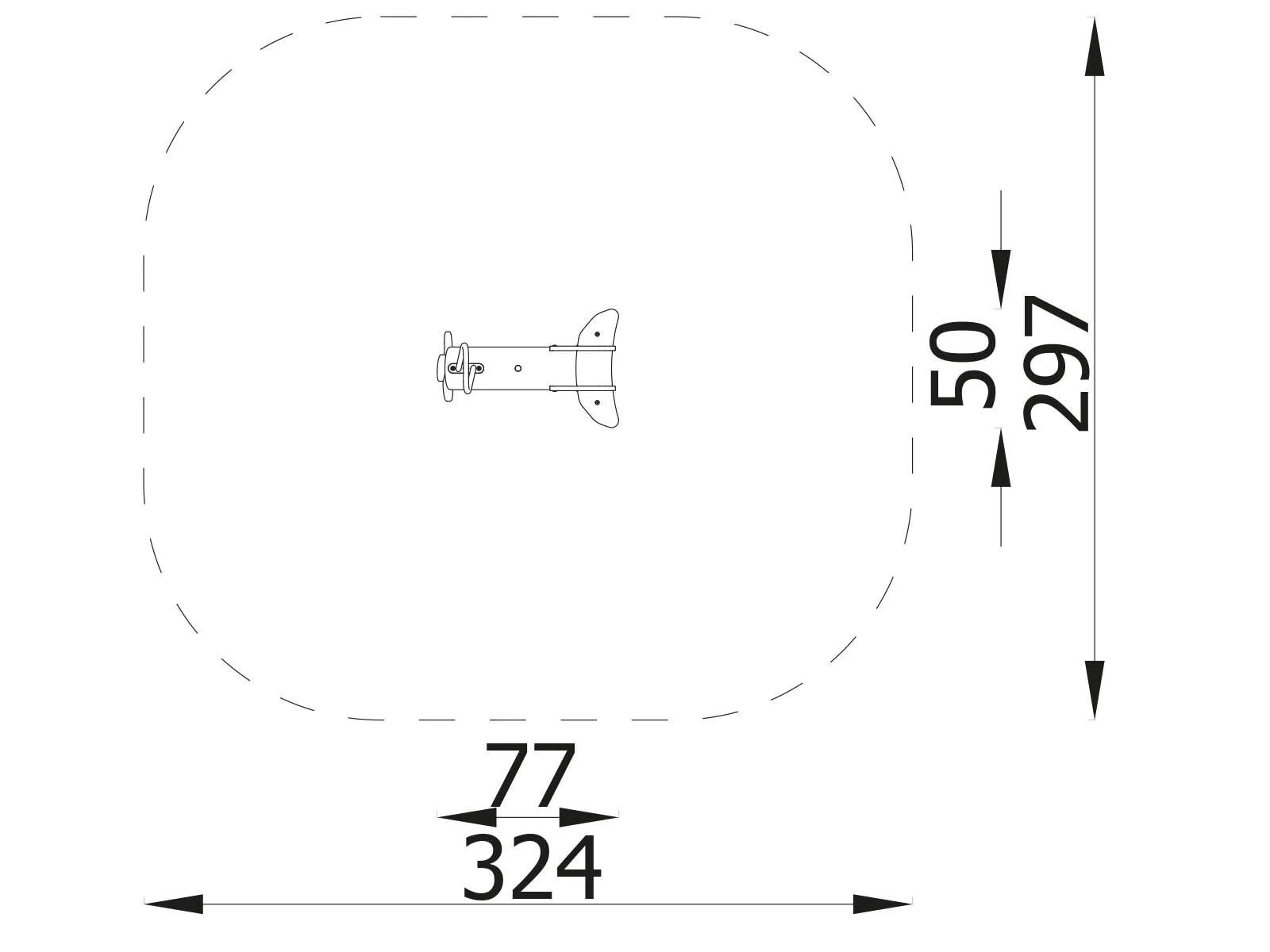

Dimensions & Technical Data

• Length: 0.77 m

• Width: 0.50 m

• Height: 0.69 m

• Maximum fall height: 0.60 m

• Recommended age group: 1–12 years

• Maximum number of users: 1

• Installation type: Direct ground installation using a concrete base

Materials & Construction

• Main structural elements made of S235 steel

• Seat beam made of robinia (acacia) wood

• Panels made of high density polyethylene

• Handles and footrests made of stainless steel

• Spring made of galvanized steel with powder coating

• Polyethylene insert inside the spring to reduce pinching risk

• Steel components protected against corrosion

• All connectors and fittings are weather-resistant and UV-resistant

• Designed for permanent outdoor installation

Equipment List

• 1 × single-seat spring rocker in airplane design

• 1 × concrete foundation anchor

Safety & Standards

• Single-seat design with a clearly defined sitting position

• Ergonomic handles and stable footrests for secure use

• Spring mechanism designed for controlled and smooth rocking motion

• Maximum free fall height limited to 0.60 m

• Stable concrete anchoring for long-term structural stability

• Designed for use in public playgrounds and supervised environments

• Complies with EN 1176 playground safety standard

Benefits for Children

• Supports development of balance and motor coordination

• Encourages body control and spatial awareness

• Stimulates imagination through themed play

• Builds confidence through independent activity

• Suitable for early childhood physical development
