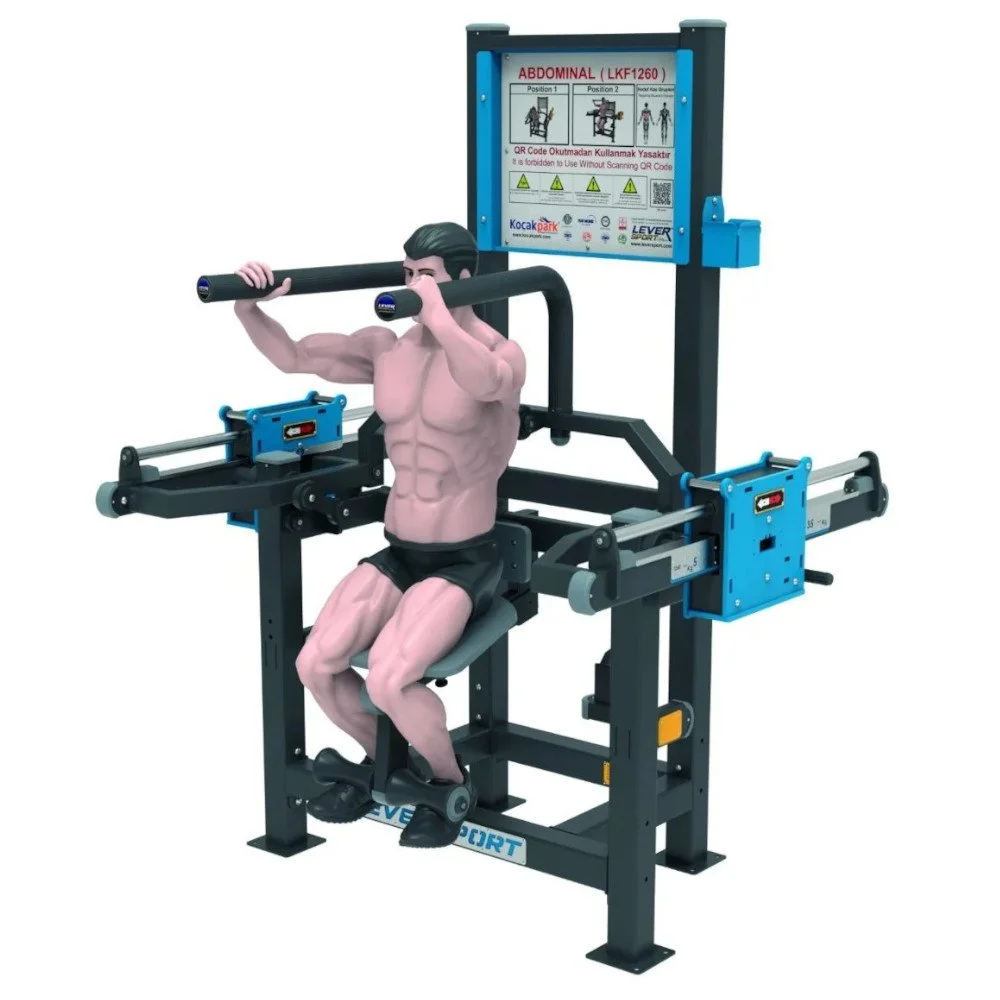

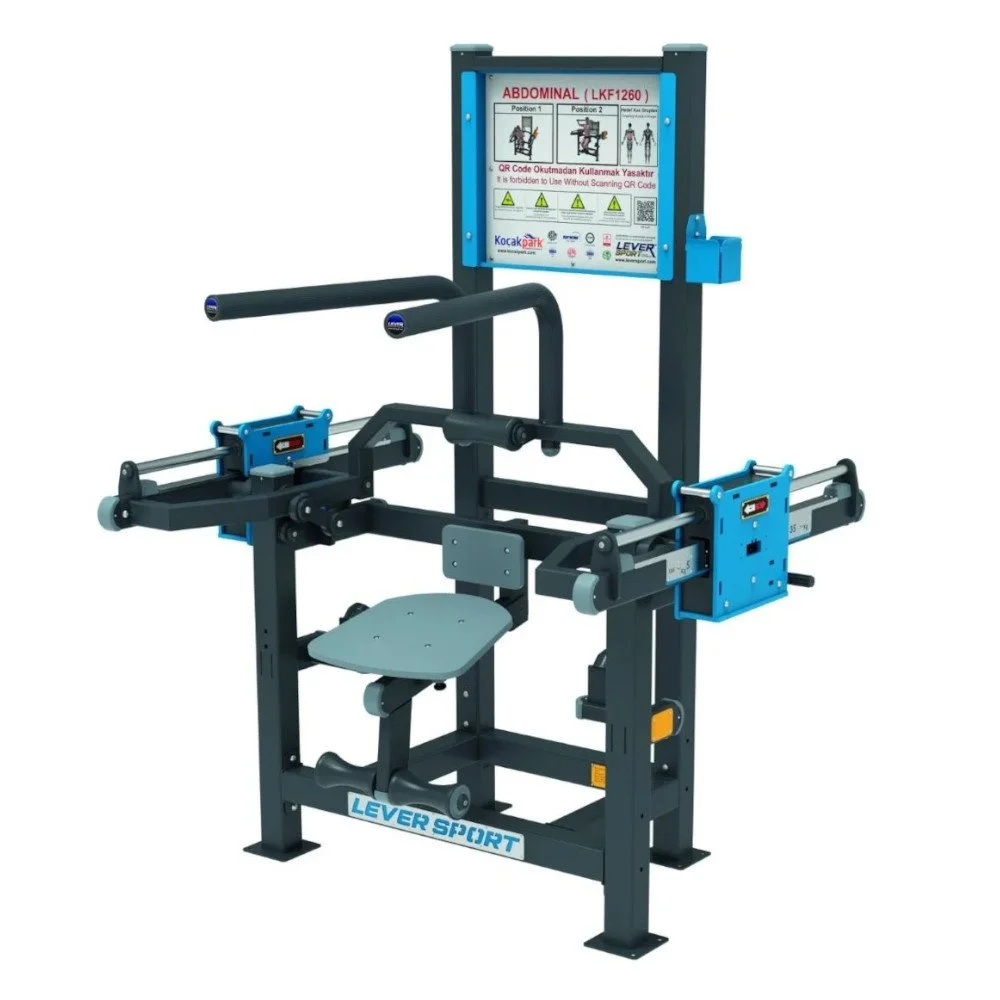

Professional Outdoor Abdominal Trainer LS9417

Outdoor Abdominal Machine with Adjustable Load

Purpose:
The Outdoor Abdominal Trainer is designed to strengthen the core, lower back and oblique muscles through a controlled seated movement supported by a sliding seat mechanism. Its guided motion allows smooth resistance changes and proper alignment, making it suitable for different training levels in outdoor fitness environments.

Technical Specifications:

• Length: 1285 mm

• Width: 1595 mm

• Height: 2050 mm

• Machine weight: 256 kg

• Standard weight block range: 2.5–37.5 kg (x2)

• Optional custom weight blocks available upon request

• Manufactured in accordance with EN 16630

• Color Standard: RAL7021, RAL5015

• Color Optional: RAL1037, RAL3020, RAL1019

Mechanical Specifications:

• Dual weight-lifting mechanisms for balanced abdominal resistance

• Sliding seat enabling natural core engagement and rotational movement

• Guided motion designed to activate central and lateral abdominal muscles

• Smooth resistance path for controlled and safe core training

Construction:

• Hot-dip galvanized steel for maximum corrosion resistance

• Electrostatic powder-coated surfaces for long-term durability

• 4 mm steel structural profiles resistant to vandalism

• Stainless steel bolts and screws suitable for outdoor conditions

• Heavy-duty frame engineered for intensive public use

Comfort Features:

• 19 mm HDPE seat and back contact surfaces providing weatherproof comfort

• Ergonomic seating position supporting proper core activation

• UV-resistant instruction panel for long-term readability

• QR code linking to demonstration and training videos

Advantages:

• Adjustable weight system suitable for all users—from beginners to professional heavy lifters

• Developed with professional athletes for accurate movement geometry

• Hot-dip galvanized steel for maximum corrosion resistance

• Electrostatic powder coating

• 19 mm HDPE contact surfaces

• Stainless steel bolts and screws

• 4 mm steel profiles resistant to vandalism

• UV-resistant instruction board

• QR code linking to instructional videos

• Premium outdoor-grade raw materials

• Certified outdoor fitness equipment

Optional Customizations

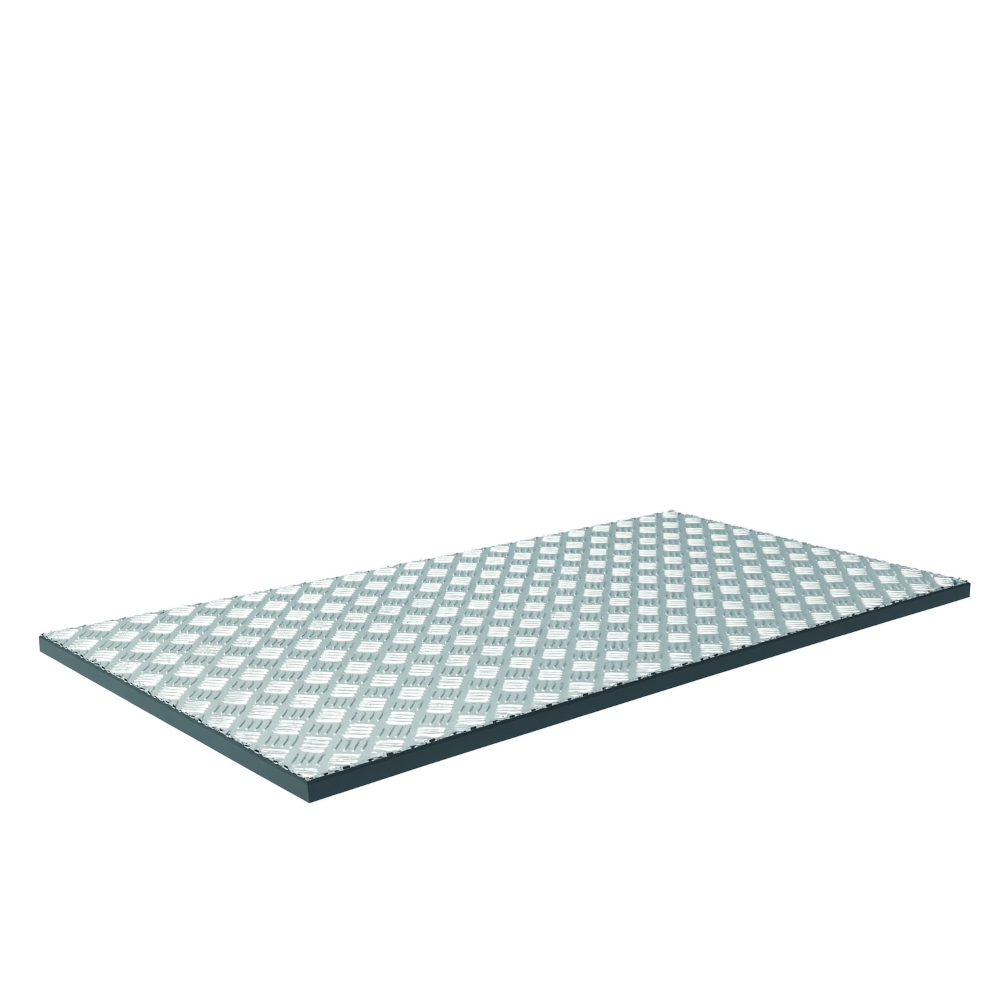

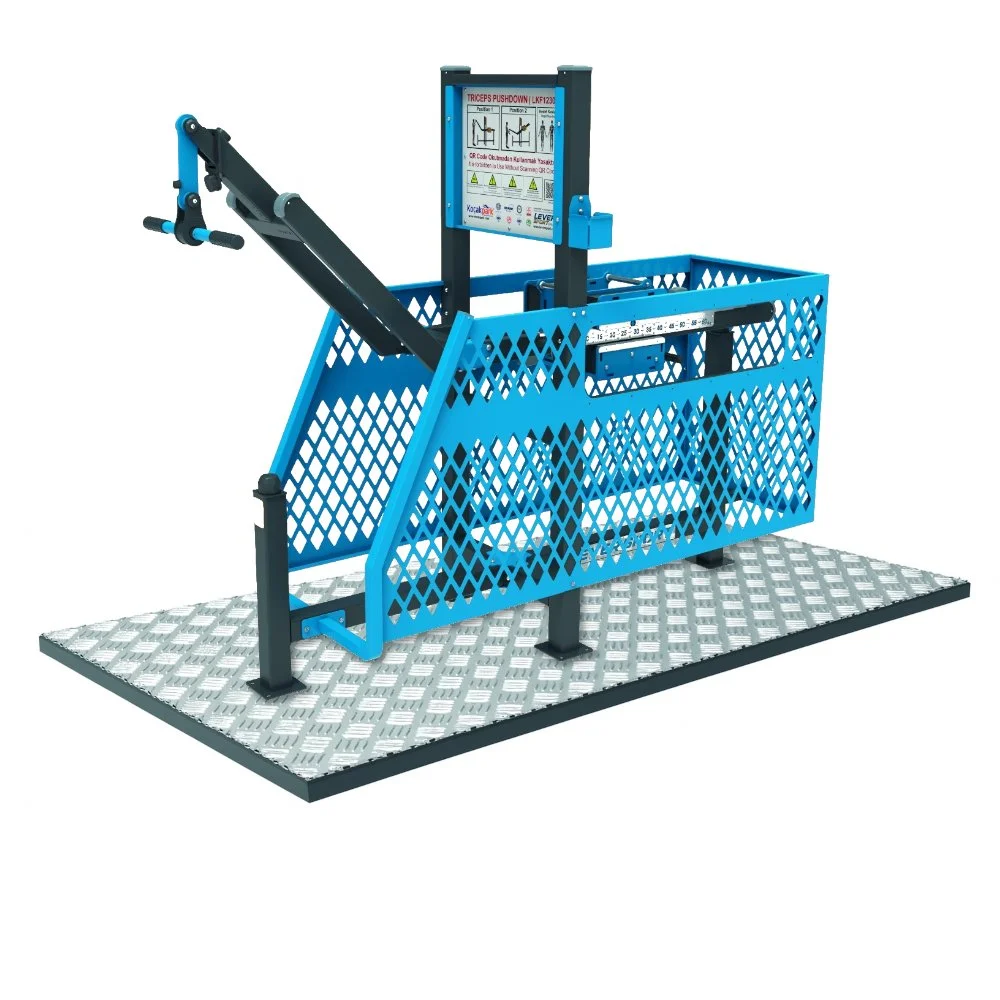

• This machine can be upgraded with optional safety and comfort features. You can choose between a steel platform for improved footing, or a protective panel that encloses the machine for added safety.
