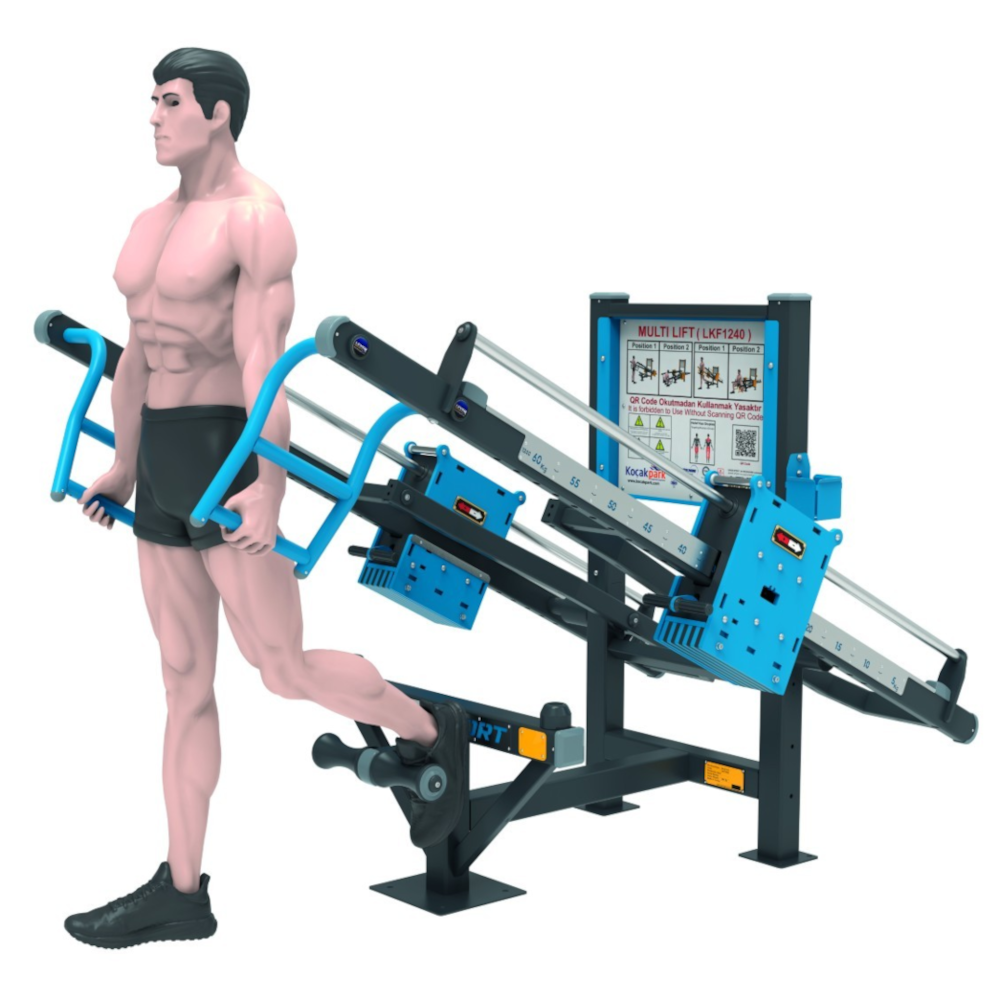

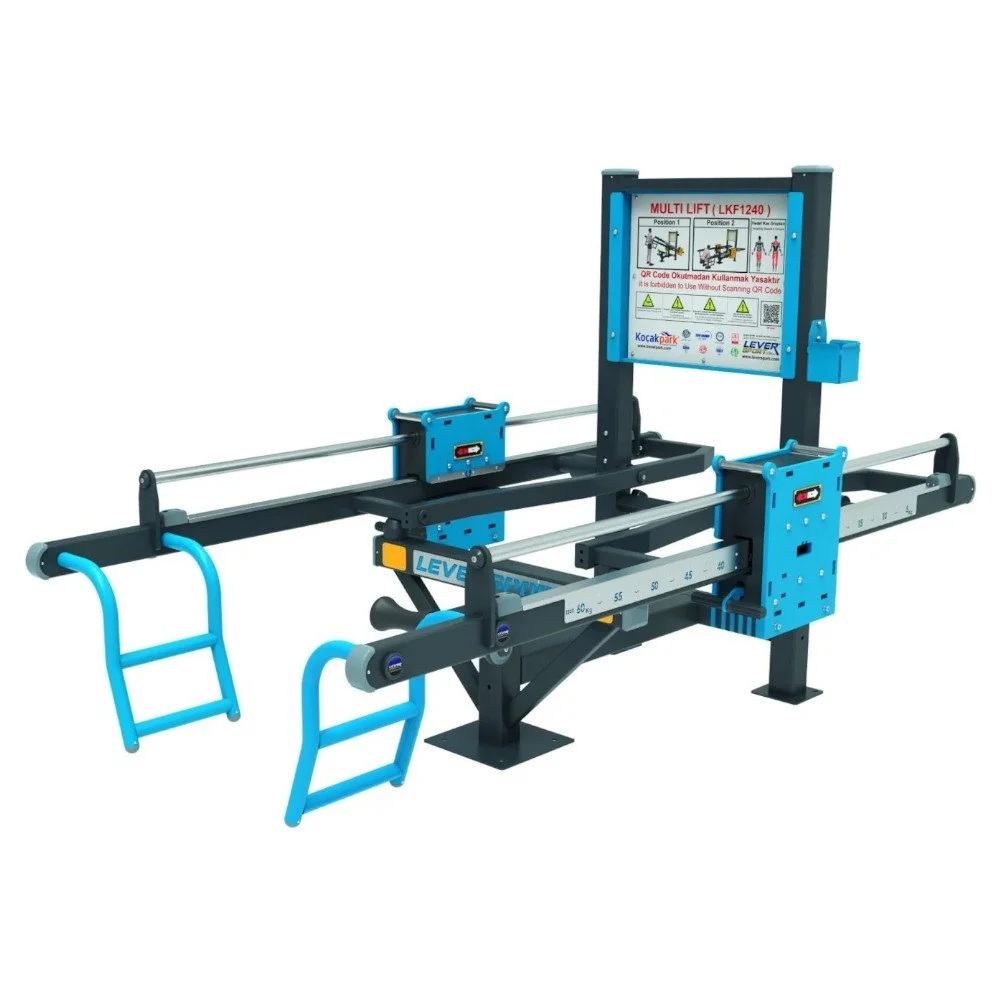

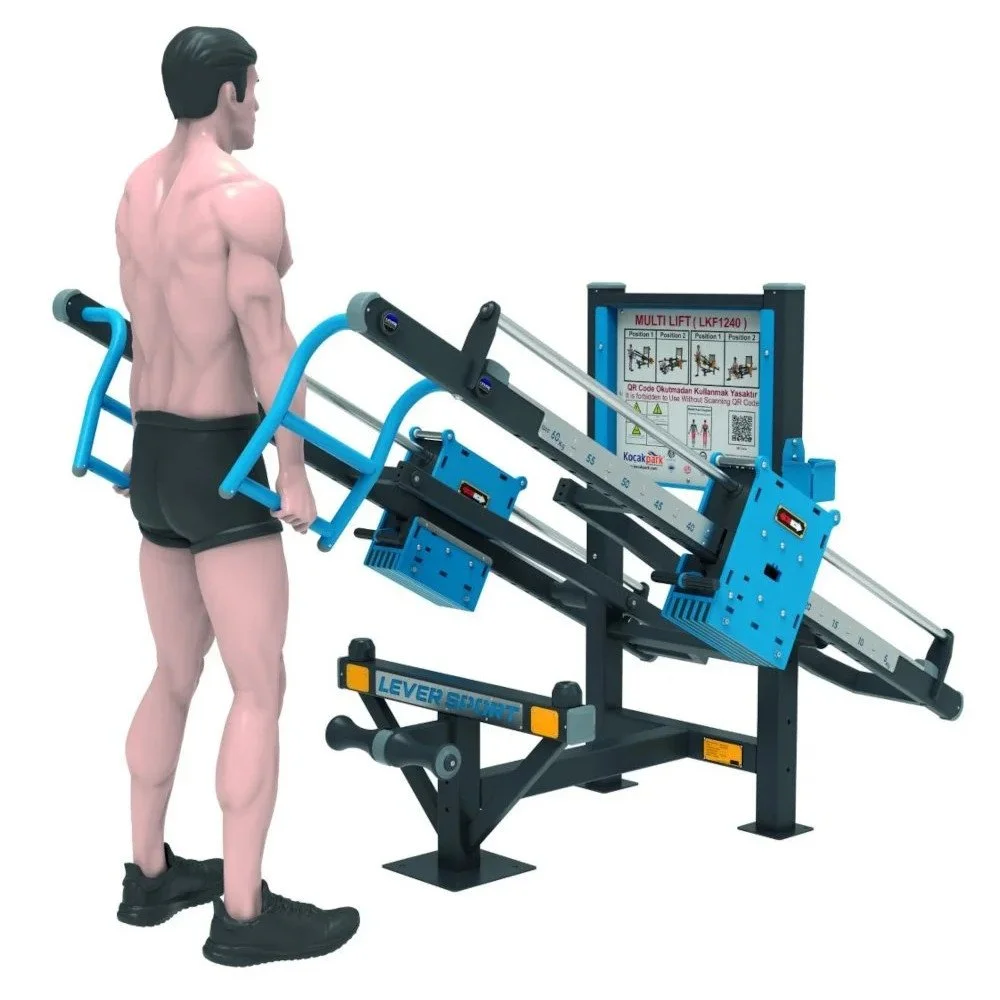

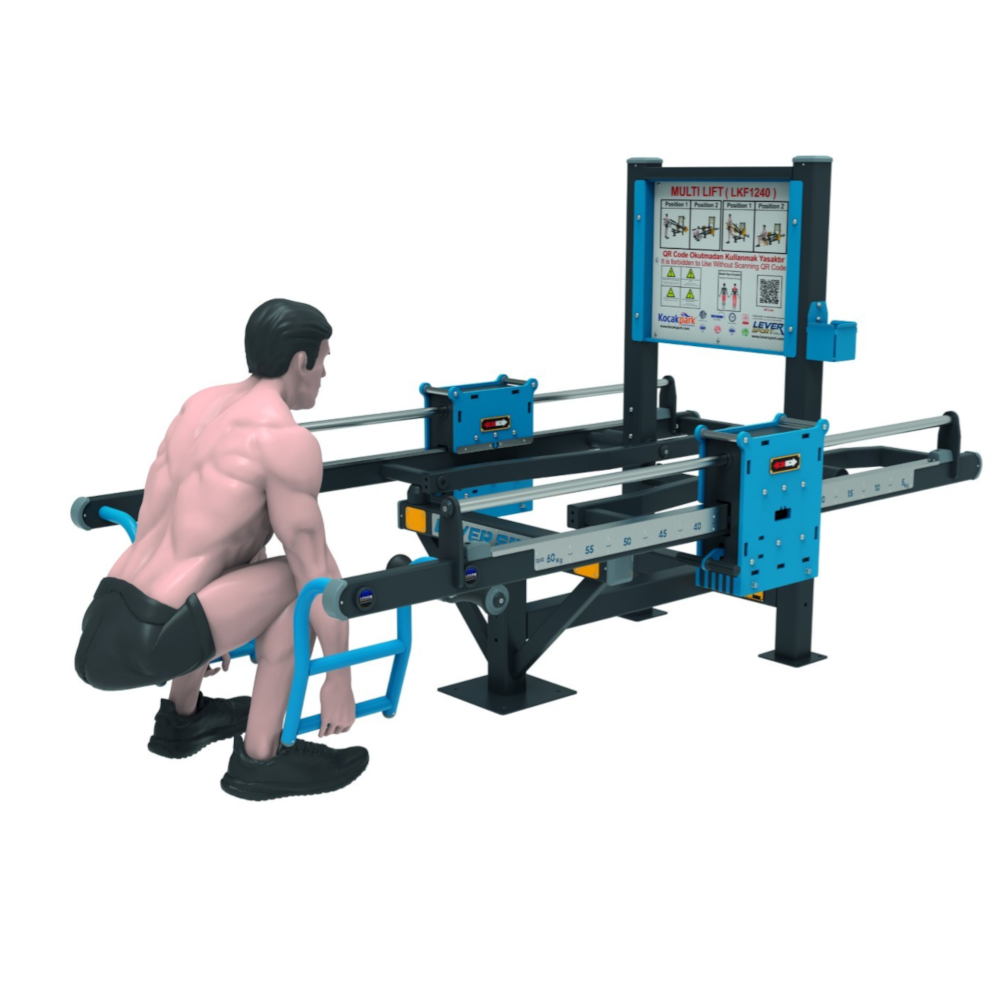

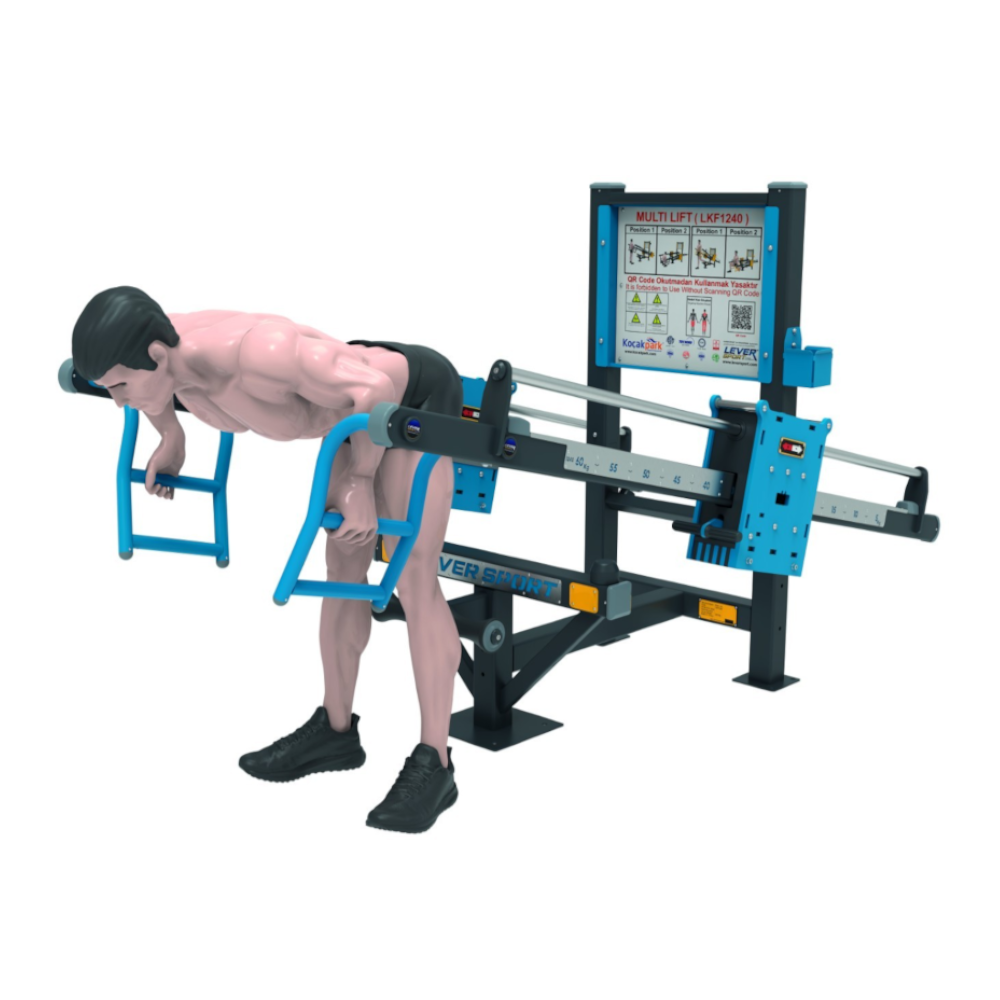

Professional Outdoor Multi Lift Machine LS3323

Outdoor Multi Lift Machine with Adjustable Load

Purpose:
The Outdoor Multi Lift Machine is designed for full-body strength development through a variety of guided pulling and lifting movements. Its adjustable resistance and multi-position design allow users to target different muscle groups, providing smooth, controlled motion suitable for diverse outdoor training environments and all fitness levels.

Technical Specifications:

• Length: 2380 mm

• Width: 1310 mm

• Height: 1455 mm

• Machine weight: 284 kg

• Standard weight block range: 5–60 kg (x2)

• Optional custom weight blocks available upon request

• Manufactured in accordance with EN 16630

• Color Standard: RAL7021, RAL5015

• Color Optional: RAL1037, RAL3020, RAL1019

Mechanical Specifications:

• Dual weight-lifting mechanisms enabling smooth adjustable resistance

• Multi-position structure allowing several pulling, lifting and rowing variations

• Guided movement paths engineered for full-body muscular activation

• Ergonomic handles and supports ensuring controlled and balanced training

Construction:

• Hot-dip galvanized steel for maximum corrosion resistance

• Electrostatic powder-coated surfaces for long-lasting outdoor durability

• 4 mm steel structural profiles resistant to vandalism

• Stainless steel bolts and screws designed for all-weather outdoor use

• Heavy-duty frame engineered for intensive public training environments

Comfort Features:

• 19 mm HDPE contact surfaces providing long-lasting weather resistance

• Ergonomic body support areas enabling stable and comfortable multi-angle exercises

• UV-resistant instruction panel ensuring clear visibility outdoors

• QR code linking to multi-exercise demonstration videos

Advantages:

• Adjustable weight system suitable for all users—from beginners to professional heavy lifters

• Developed with professional athletes for accurate movement geometry

• Hot-dip galvanized steel for maximum corrosion resistance

• Electrostatic powder coating

• 19 mm HDPE contact surfaces

• Stainless steel bolts and screws

• 4 mm steel profiles resistant to vandalism

• UV-resistant instruction board

• QR code linking to instructional videos

• Premium outdoor-grade raw materials

• Certified outdoor fitness equipment

Optional Customizations

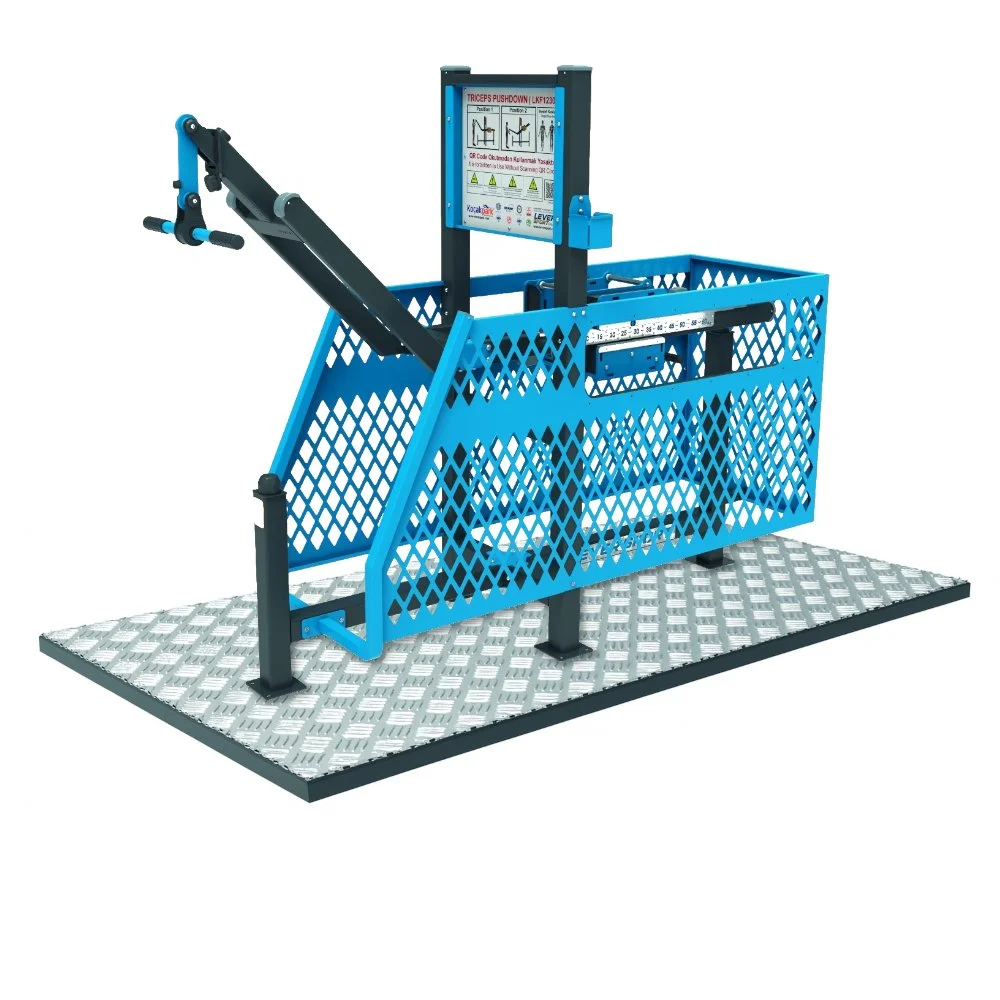

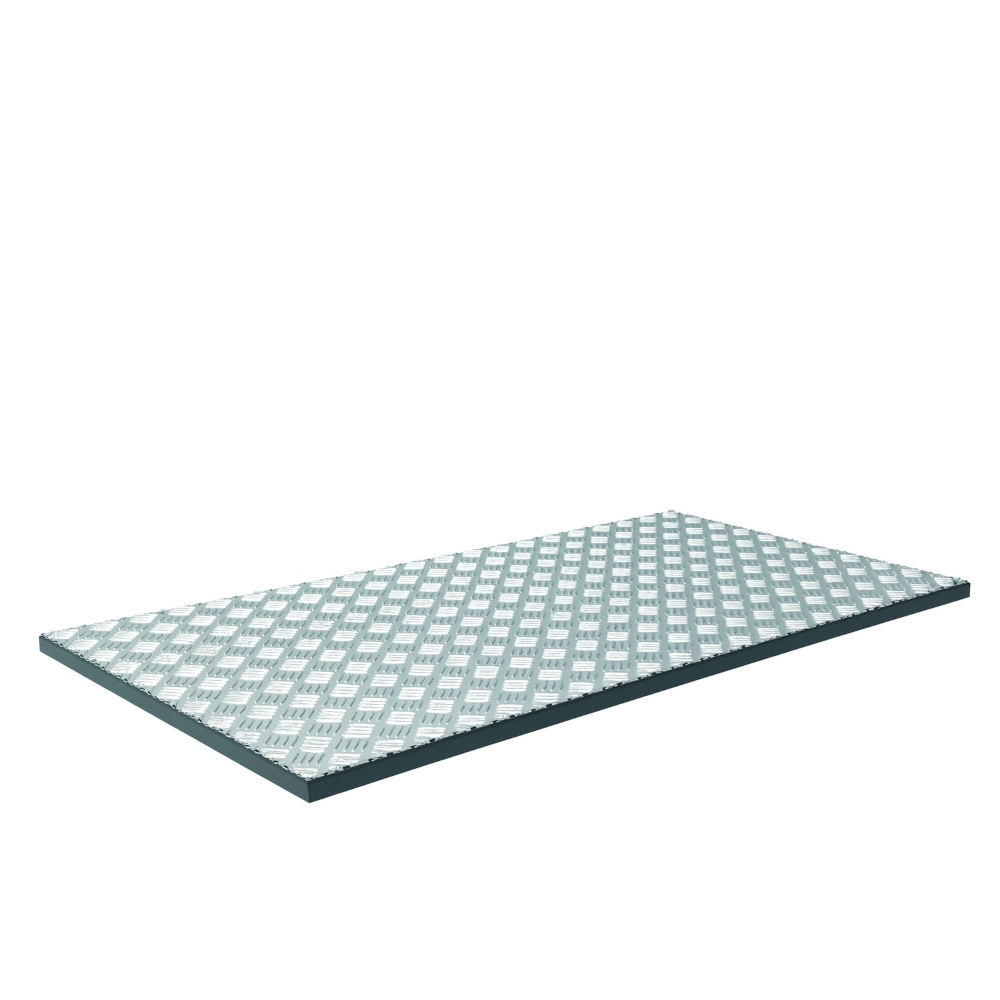

• This machine can be upgraded with optional safety and comfort features. You can choose between a steel platform for improved footing, or a protective panel that encloses the machine for added safety.
