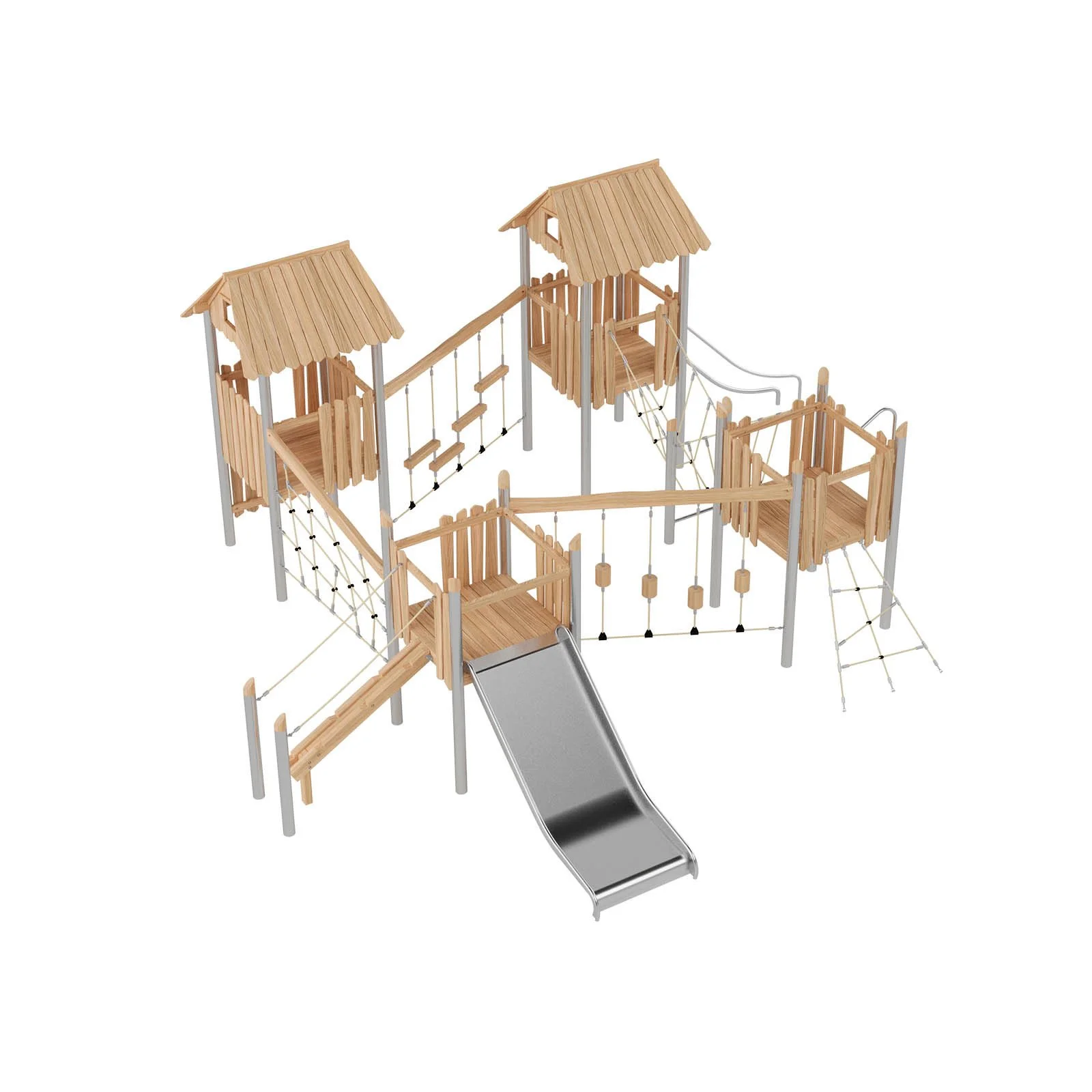

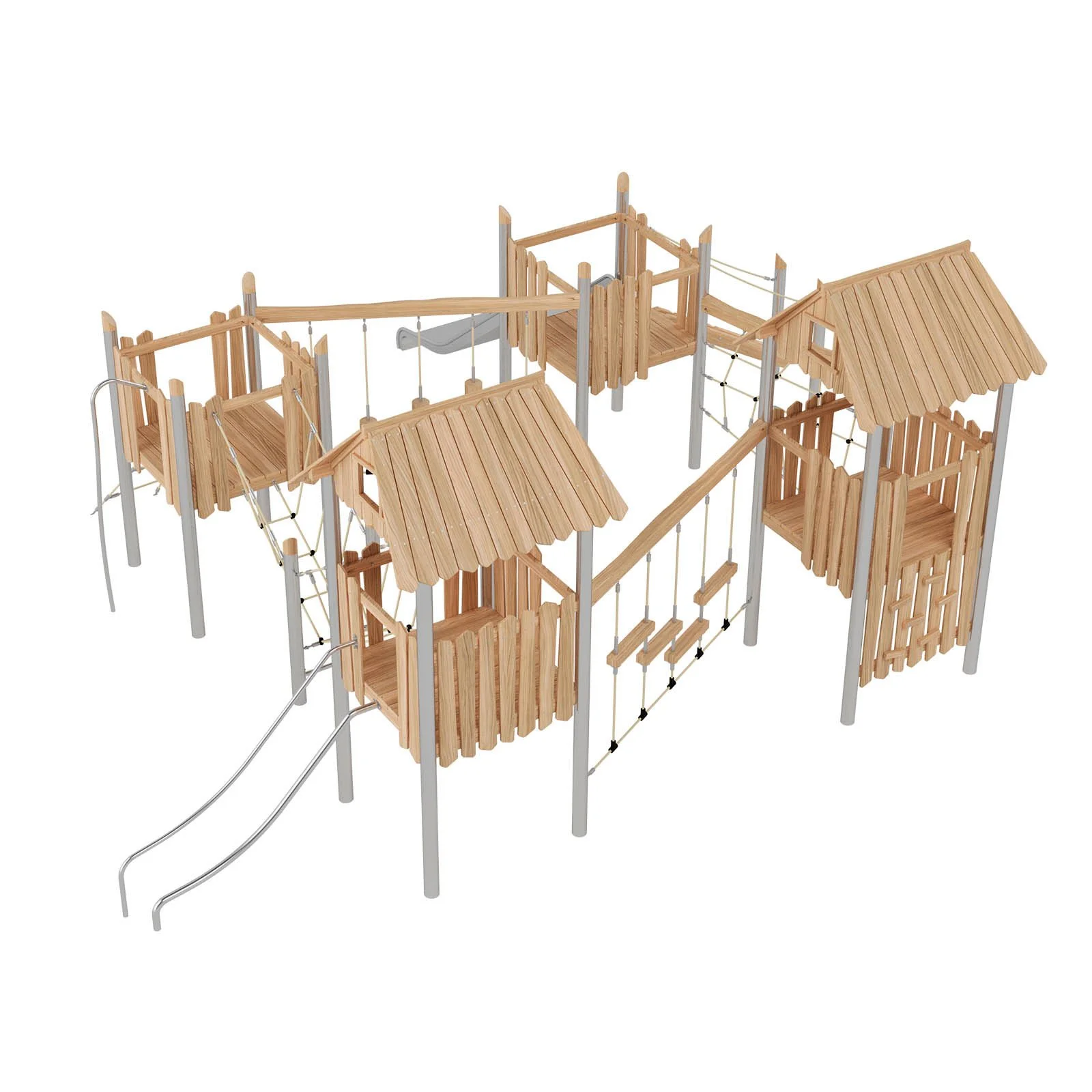

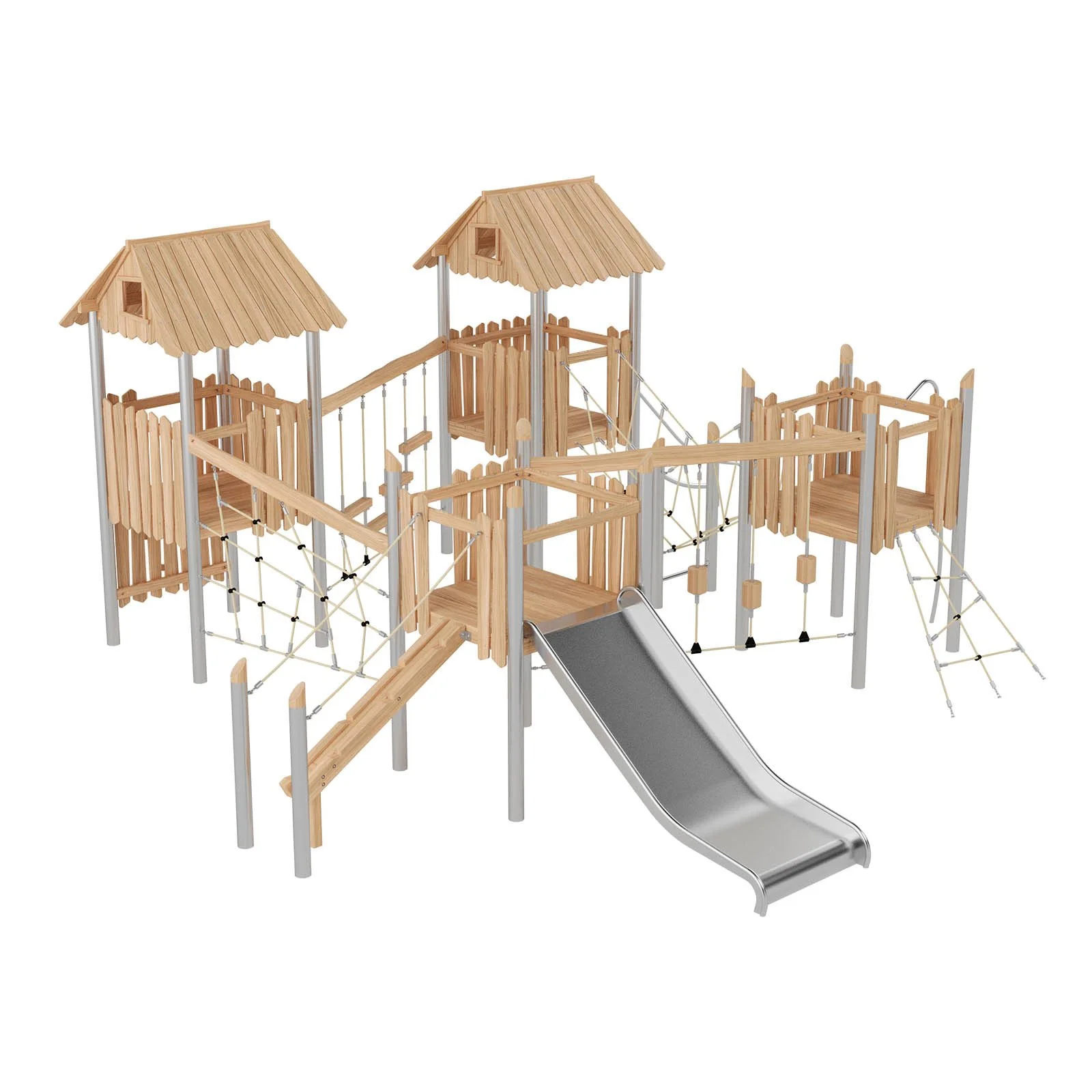

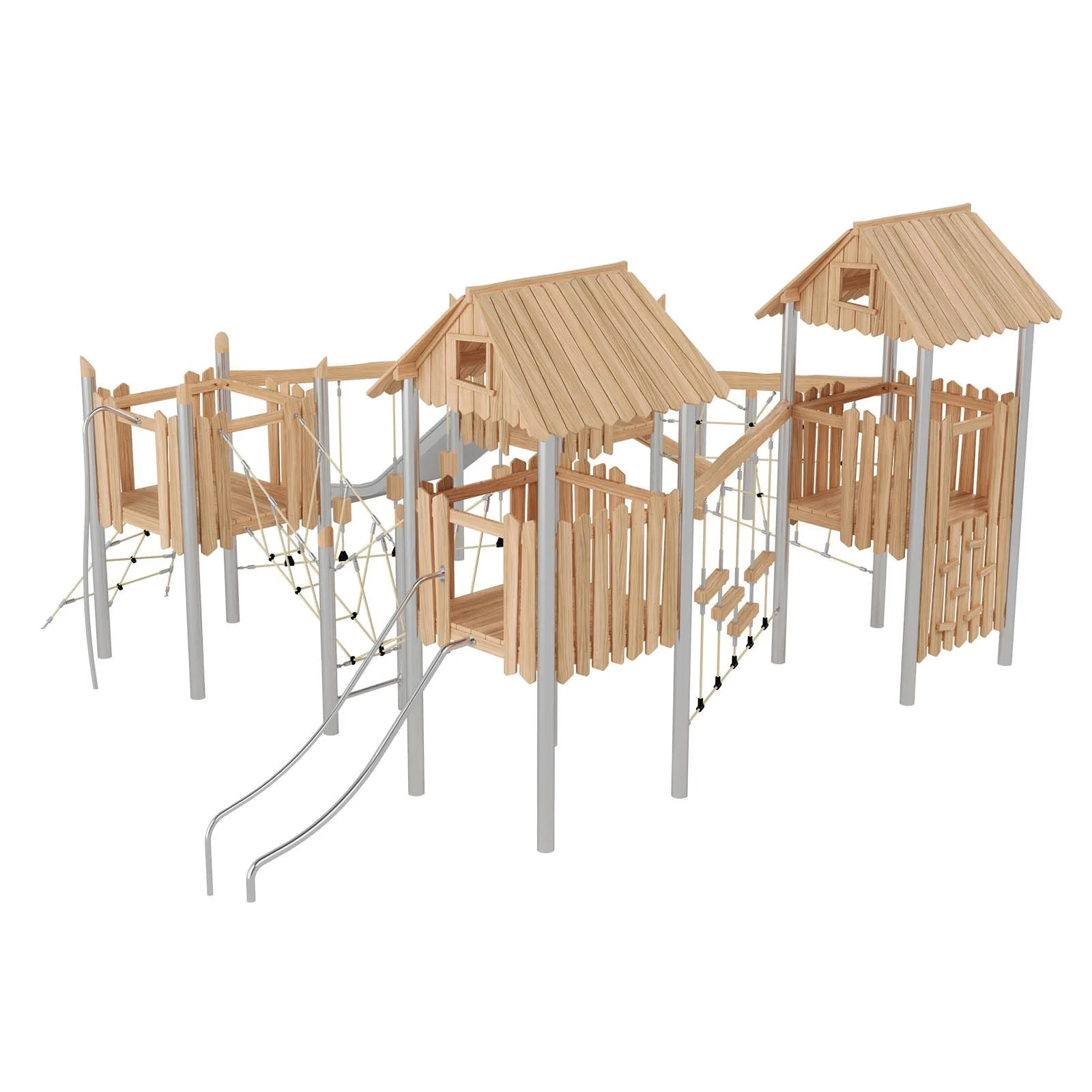

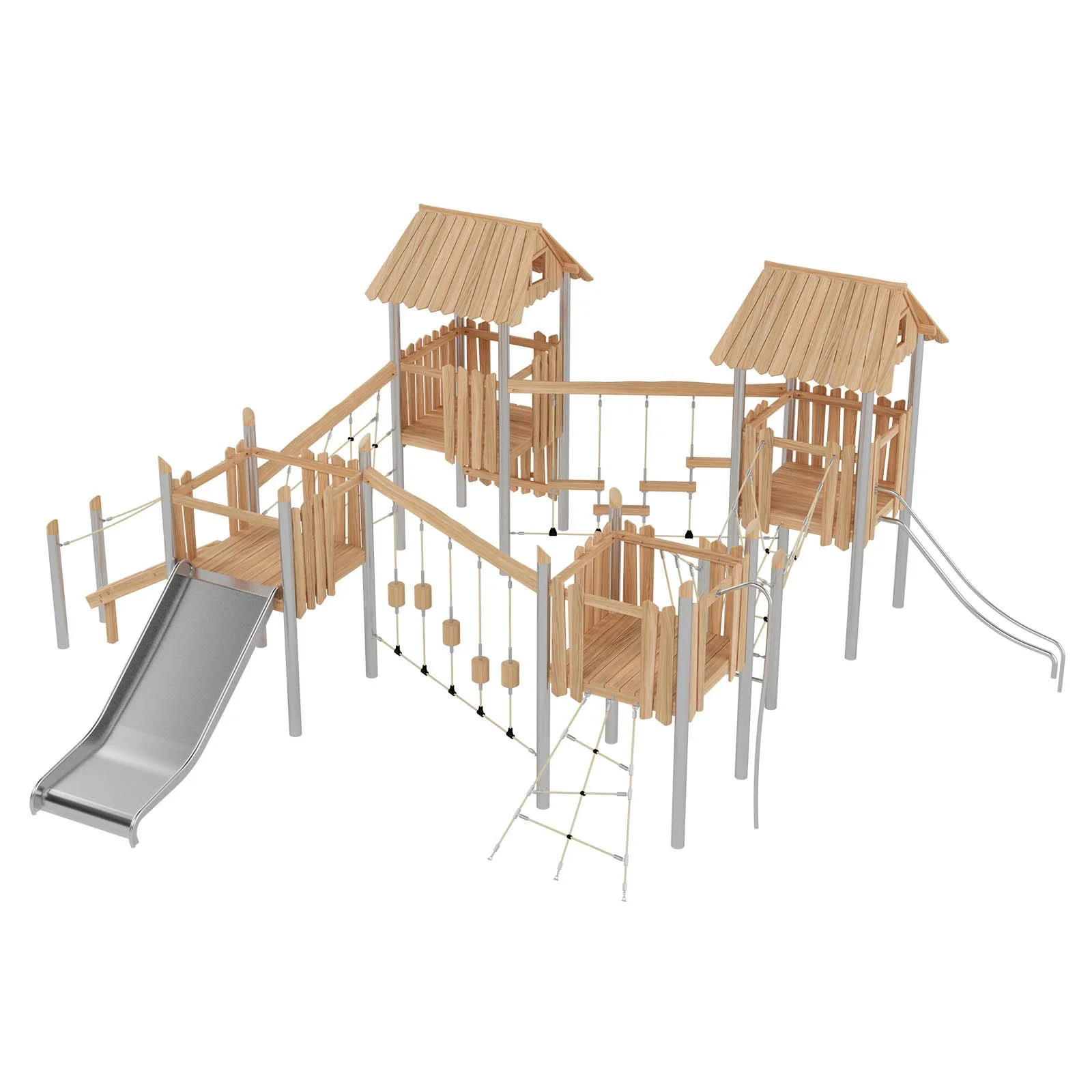

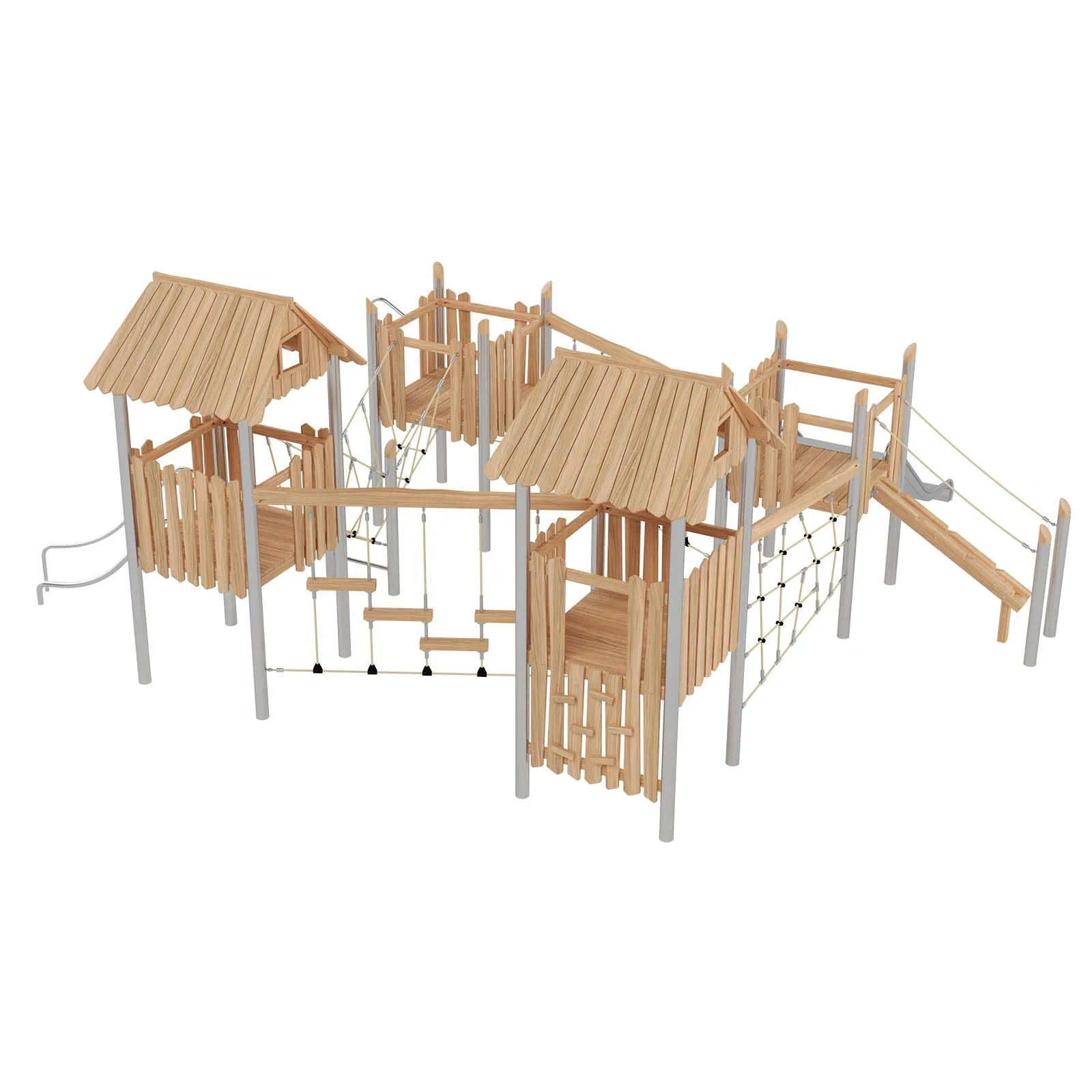

Robinio 403

Large multifunctional playground structure with slides, rope bridges, climbing elements, and roofed platforms, designed for intensive group play in public outdoor spaces.

Purpose
Robinio 403 is a large-scale playground structure designed for shared, active play among a high number of children. The equipment offers multiple play routes combining climbing walls, rope bridges, platforms, and dynamic slide descents. Children can climb, balance, traverse, and slide while developing strength, endurance, coordination, agility, flexibility, and spatial awareness. Roofed platforms provide sheltered play and rest areas, supporting extended play in various weather conditions. The structure naturally encourages cooperation, communication, and group play, making it suitable for municipal playgrounds, schools, parks, and large public recreation areas.

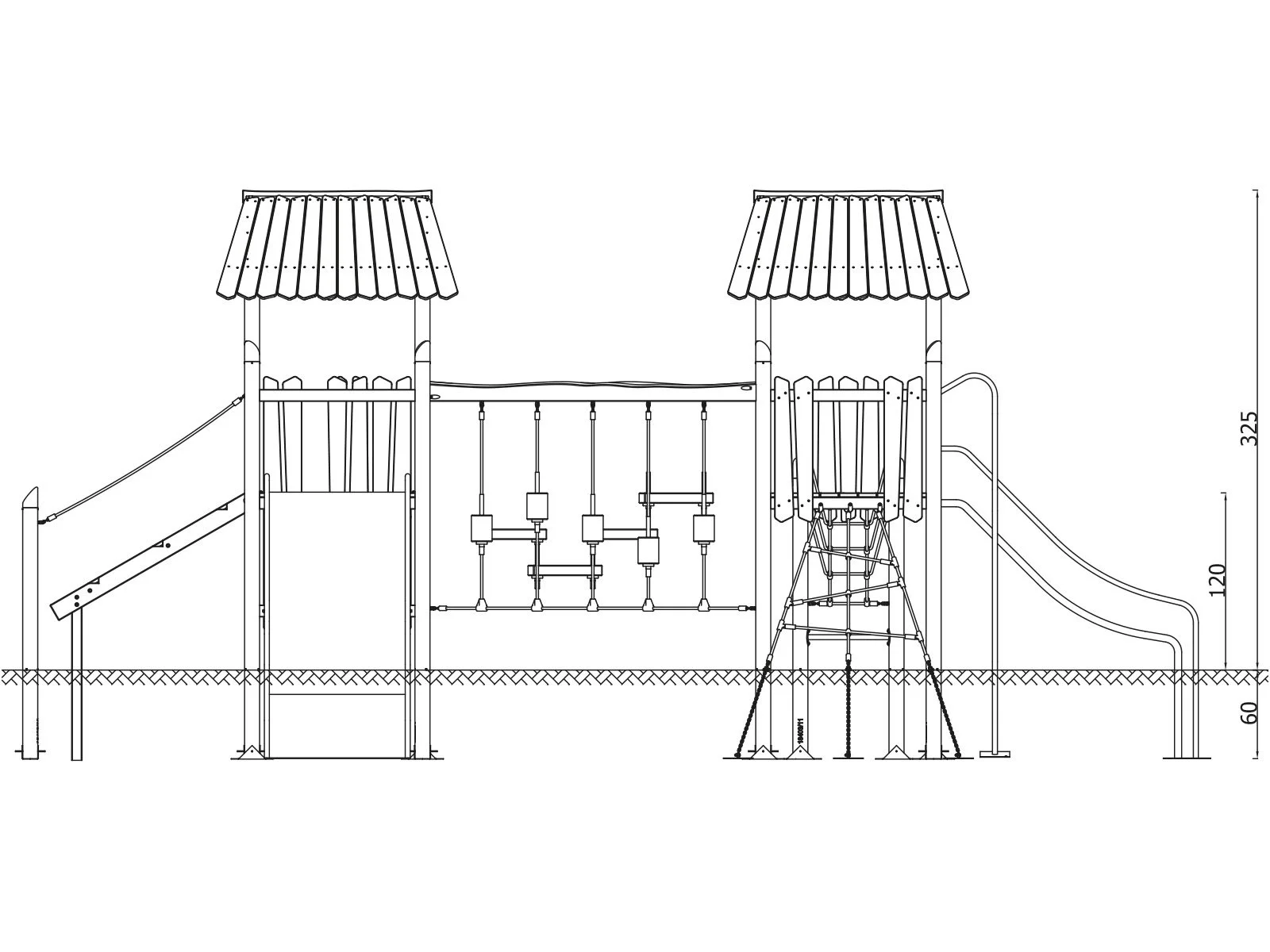

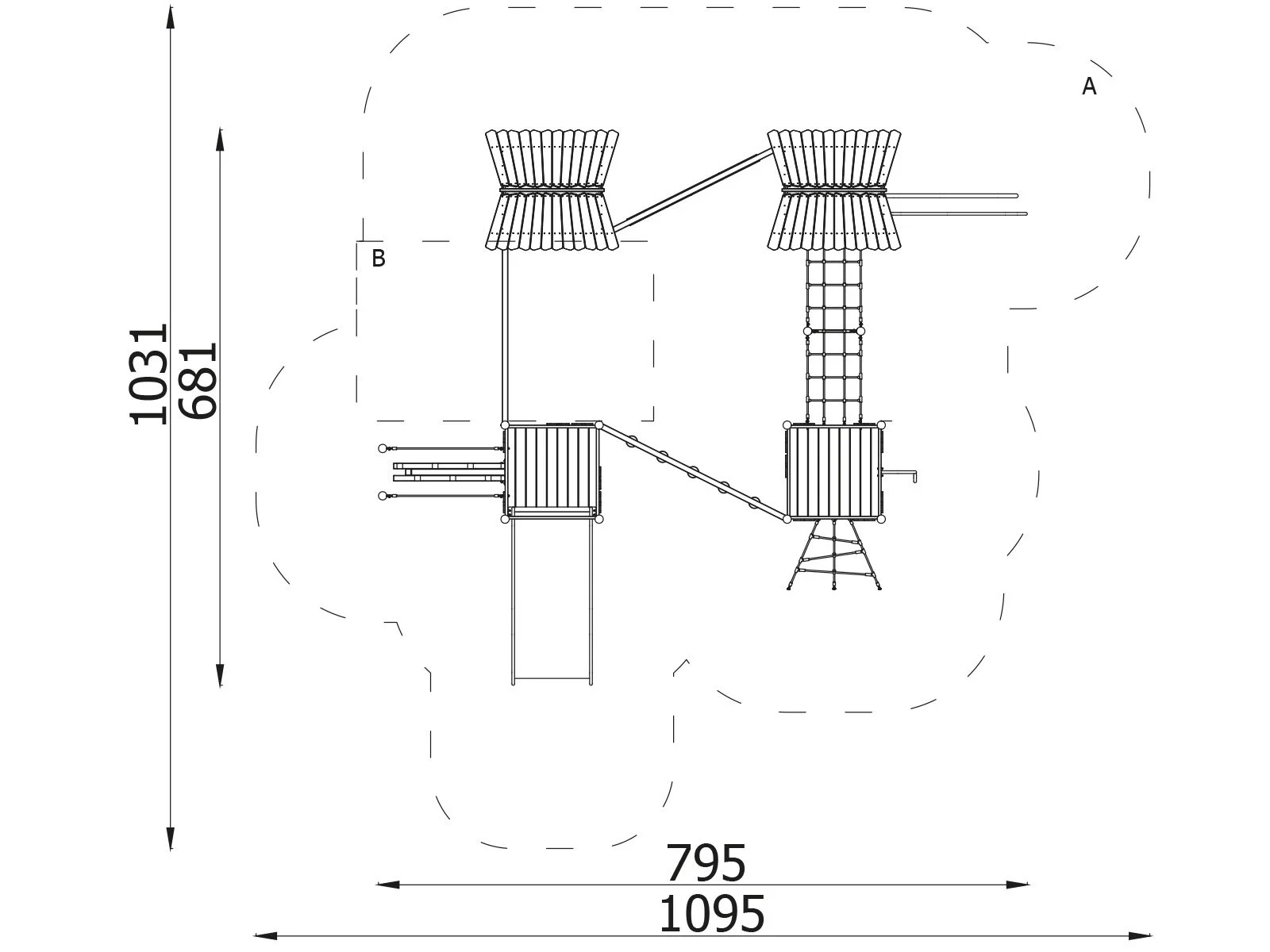

Dimensions & Technical Data

• Length: 7.95 m

• Width: 6.81 m

• Height: 3.25 m

• Maximum fall height: 1.92 m

• Recommended age group: 3–14 years

• Maximum number of users: 26

• Installation type: Direct ground anchoring

Materials & Construction

• Load-bearing posts made of stainless steel, diameter 101.6 mm

• Platforms, roofs, and panels made of robinia (acacia) wood boards

• Slides and tube slide made entirely of stainless steel

• Climbing wall made of robinia acacia wood with integrated wooden climbing elements

• Fireman’s pole made of stainless steel

• Rope elements made of 16 mm polypropylene rope reinforced with a steel core

• Wooden components made of robinia (acacia) wood

• All connectors and fittings are weather-resistant and UV-resistant

• Designed for permanent outdoor installation

Equipment List

• 4 × square platforms (115 × 115 cm) at 120 cm height

• 1 × stainless steel wide slide (120 cm platform height)

• 1 × stainless steel tube slide (120 cm platform height)

• 2 × gable roofs made of wooden planks

• 1 × climbing wall (120 cm)

• 1 × climbing net (120 cm)

• 1 × fireman’s pole (120 cm)

• 1 × V-shaped rope bridge (120 cm)

• 1 × horizontal climbing net (120 cm)

• 1 × horizontal climbing vines (120 cm)

• 1 × climbing vines (120 cm)

• 1 × balance beam (120 cm)

• 13 × narrowing transitions with wooden planks

• 2 × plank panels

Safety & Standards

• Clearly defined climbing, transition, and sliding zones

• Roofed platforms with protective barriers

• Multiple play levels with controlled access points

• Maximum free fall height limited to 1.92 m

• Stable structure designed for intensive public use

• Direct ground anchoring for long-term structural stability

• Designed for use in public playgrounds and supervised environments

• Complies with EN 1176 playground safety standards

Benefits for Children

• Develops strength, endurance, balance, and coordination

• Encourages spatial awareness and movement planning

• Builds confidence through varied physical challenges

• Supports social interaction and cooperative group play

• Provides high play capacity and long-term play value
