Robinio Obstacle Course

Large modular obstacle course made of robinia wood for motor skill development in public playgrounds and outdoor fitness areas.

Purpose
The Robinio Obstacle Course is a dynamic multi-element playground set designed to develop children’s motor skills through active and engaging movement. The course includes a variety of ropes, balance elements, jumping platforms, and climbing challenges that can be completed in different sequences, encouraging planning, concentration, and physical endurance. The open layout allows multiple children to participate simultaneously, making it well suited for school playgrounds, municipal parks, and public recreational spaces where active group play is encouraged.

Dimensions & Technical Data

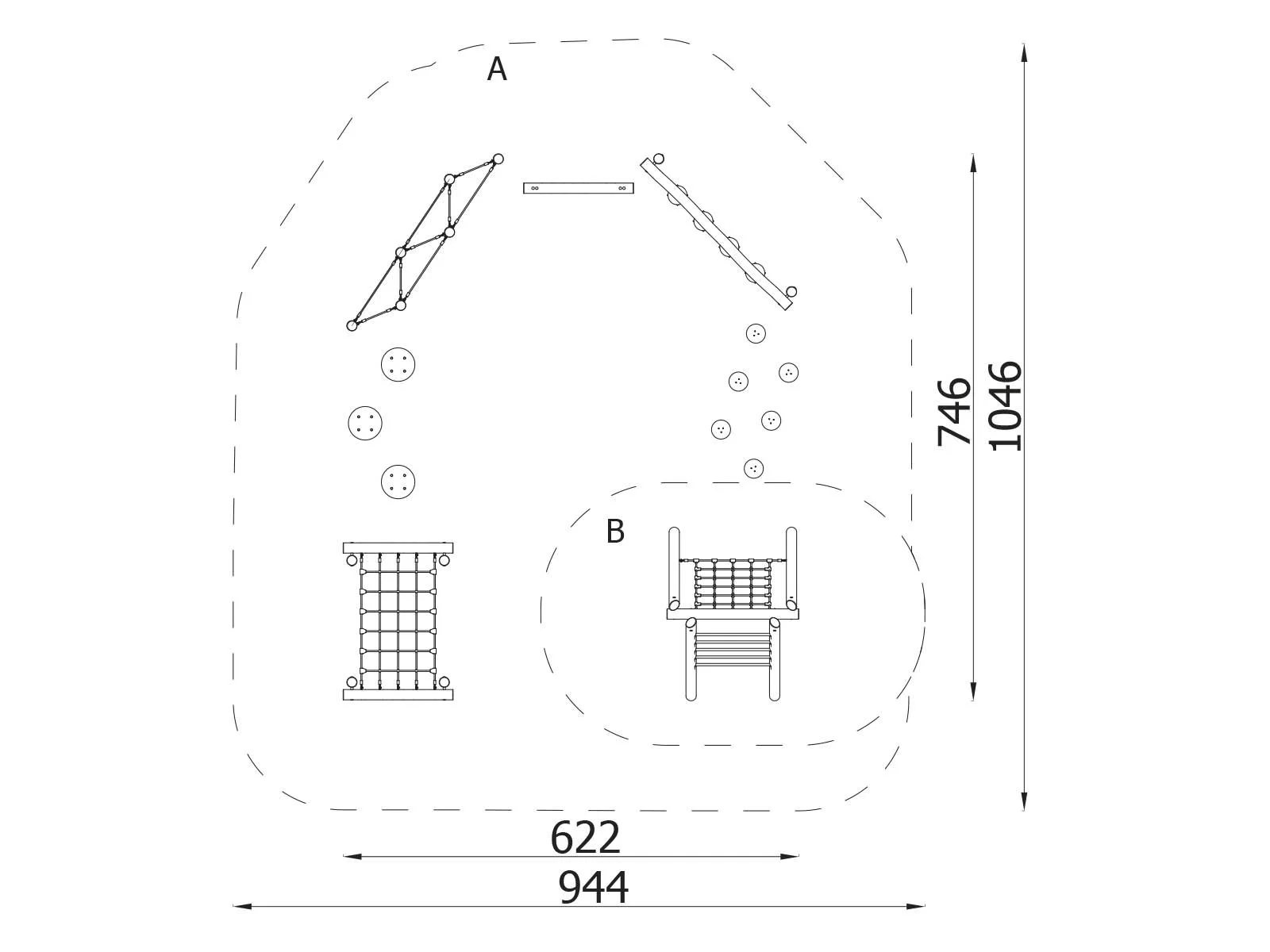

• Length: 6.22 m

• Width: 7.46 m

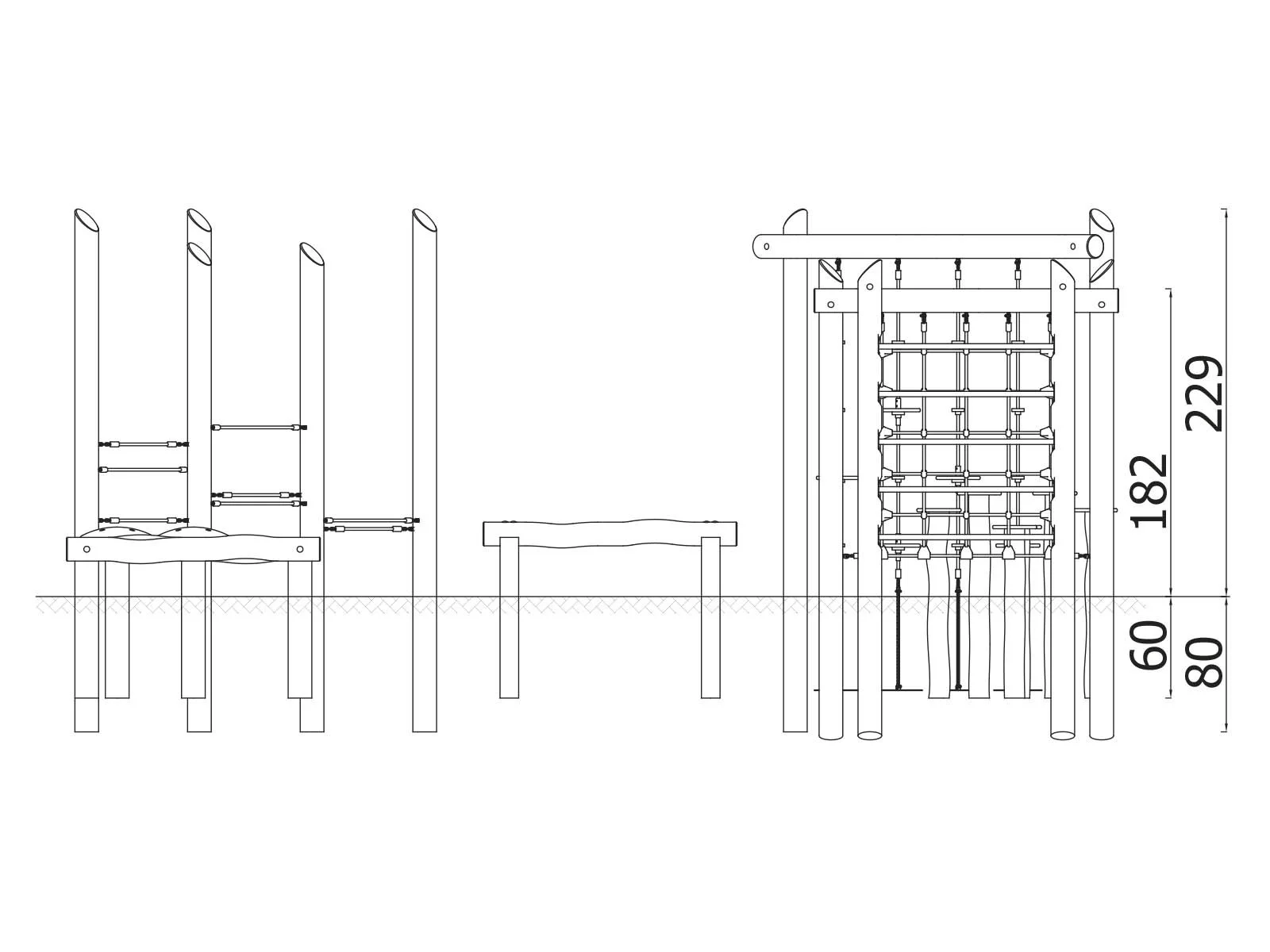

• Height: 2.29 m

• Maximum fall height: 1.82 m

• Recommended age group: 3–14 years

• Maximum number of users: 27

• Installation type: Direct ground anchoring, foundation according to installation instructions

Materials & Construction

• Load-bearing structural posts made of stainless steel, finished with cut wooden elements

• Beams and wooden components made of black locust (robinia acacia) wood

• Panels made of flexible high density polyethylene

• Bars made of stainless steel

• Ropes made of 16 mm polypropylene with a steel core

• All connectors and fittings are weather-resistant and UV-resistant

• Designed for permanent outdoor installation

Equipment List

• 1 × robinia net

• 3 × jumping platforms

• 1 × passage between posts

• 1 × balance beam

• 1 × rope passage with discs

• 6 × jumping poles

• 1 × ladder with net and bars

Safety & Standards

• Modular layout allowing controlled movement between obstacles

• Low-to-medium height elements supporting safe progression

• Maximum free fall height limited to 1.82 m

• Direct ground anchoring ensures long-term structural stability

• Intended for use in public playgrounds and supervised environments

• Complies with EN 1176 playground safety standards

Benefits for Children

• Develops balance, coordination, and motor planning

• Improves strength, endurance, and spatial awareness

• Encourages concentration and problem-solving through varied routes

• Supports simultaneous play and social interaction

• Promotes active, movement-based outdoor play
