Purpose

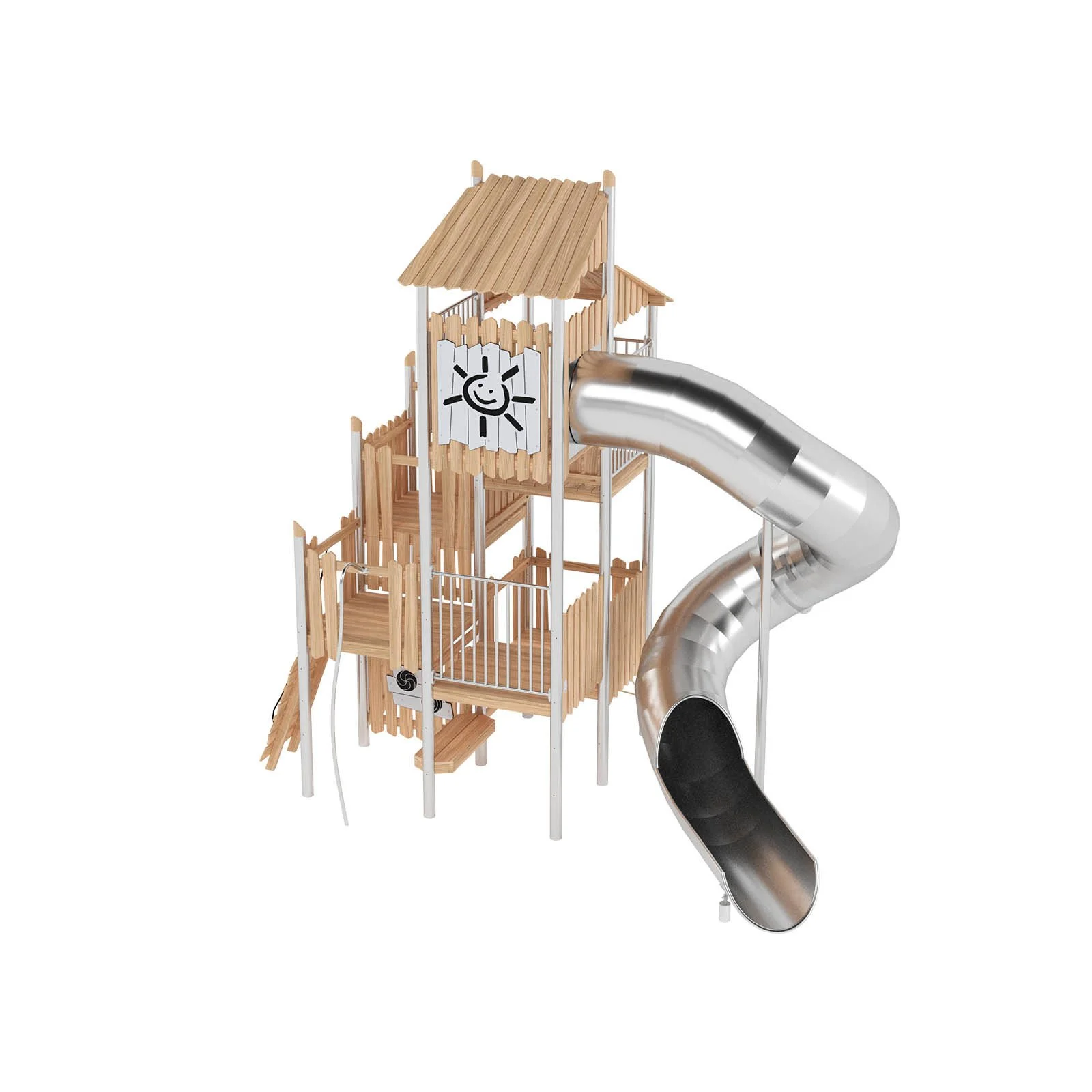

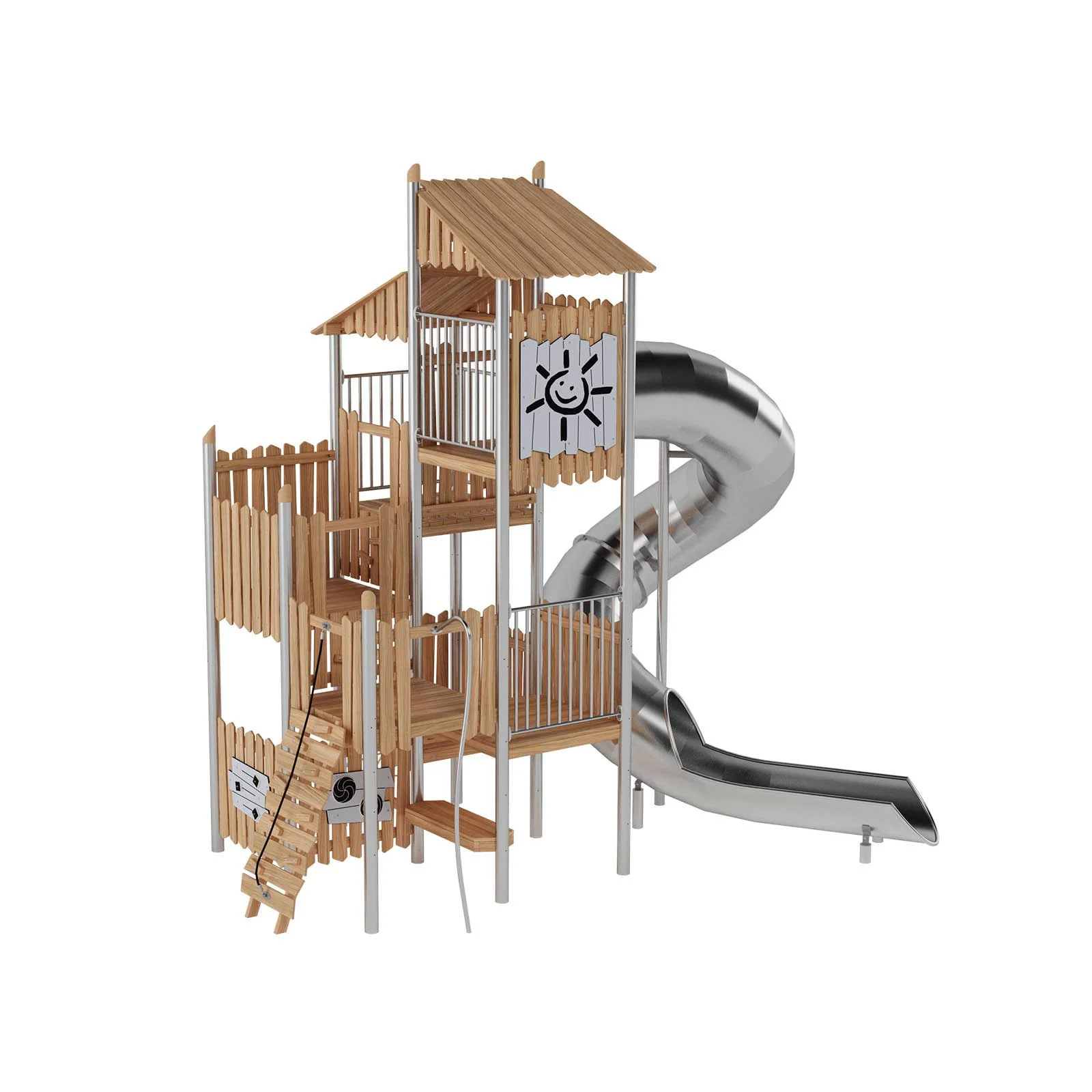

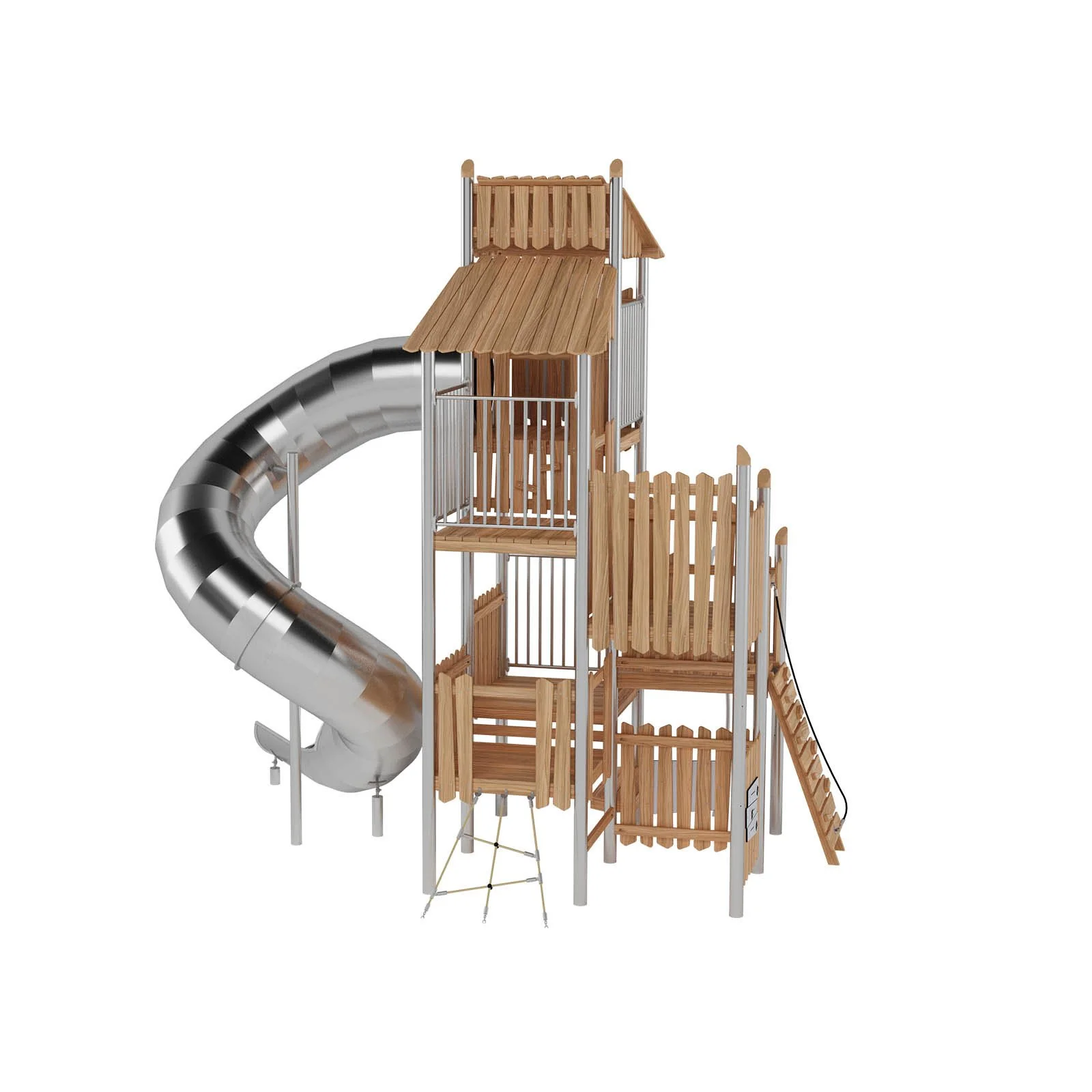

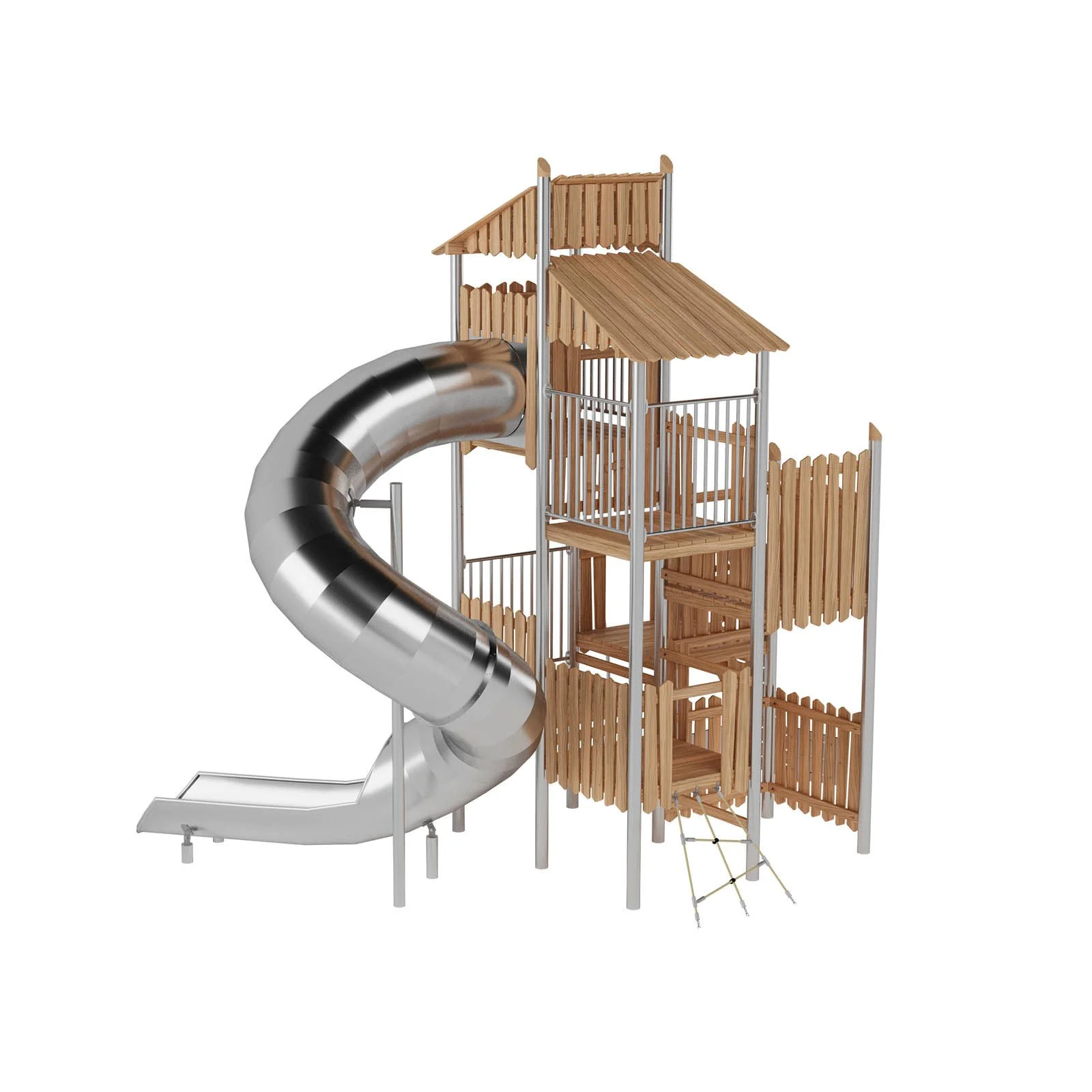

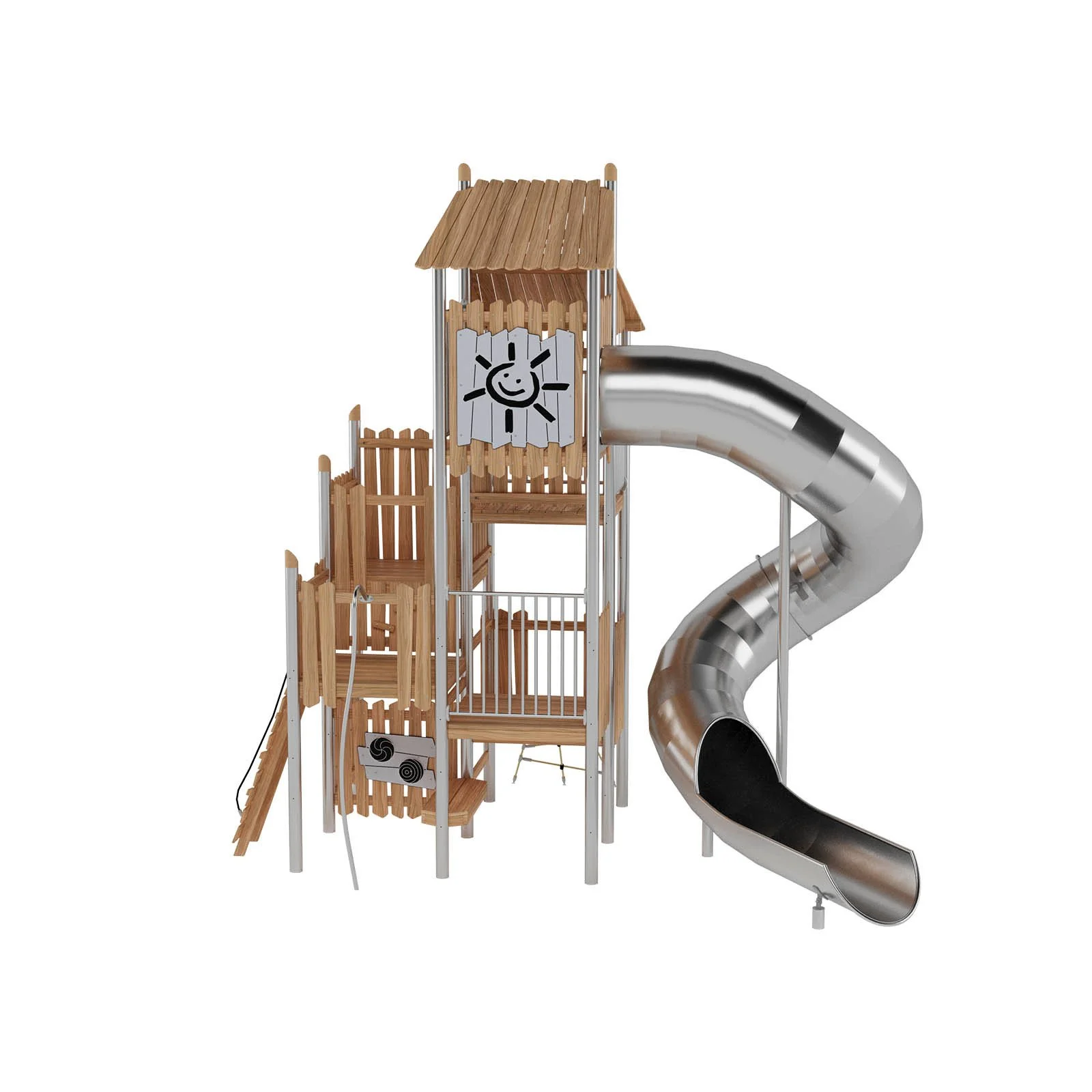

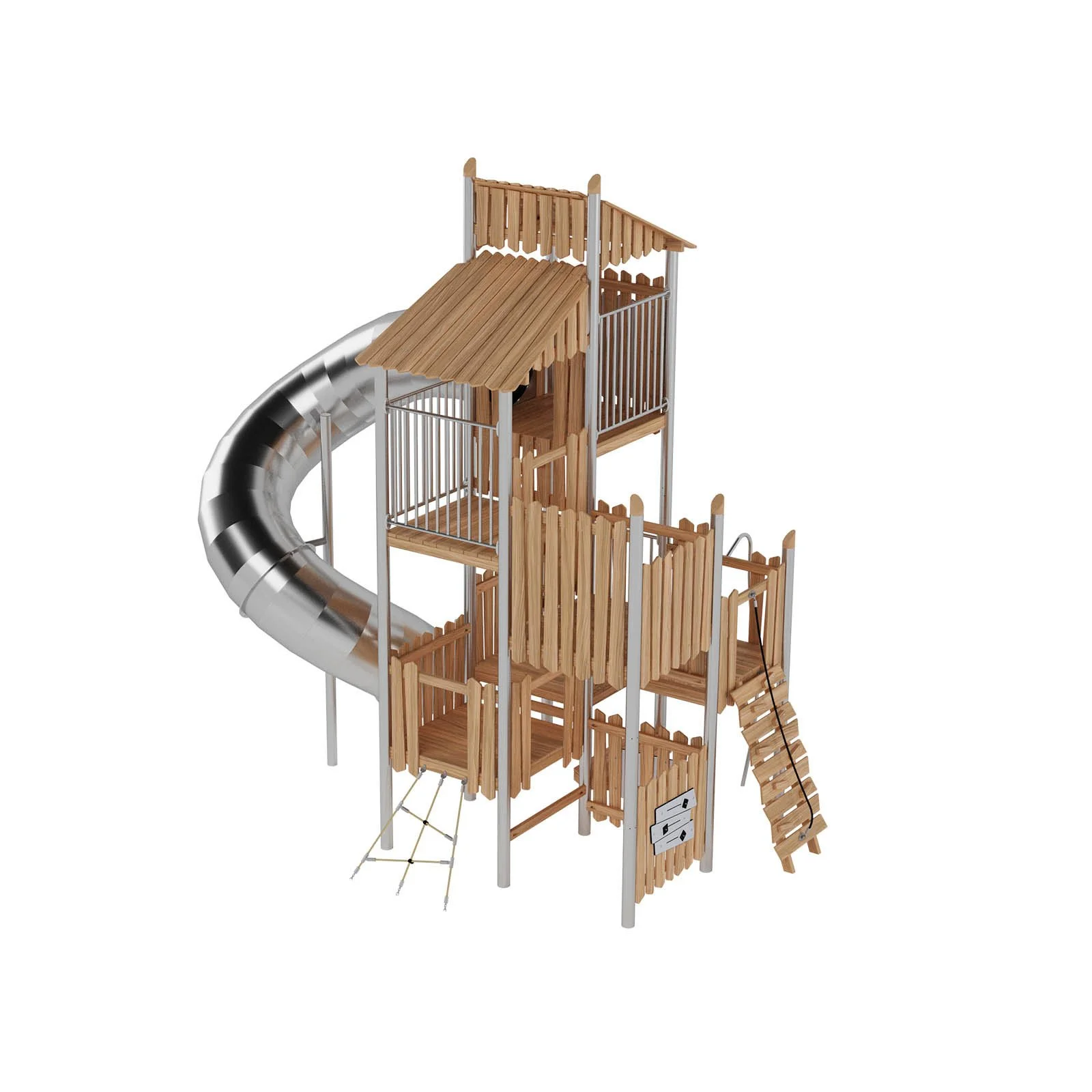

This tall multi-level playground tower is designed for children aged 3 to 14 years and can accommodate up to twenty users at the same time. The structure offers play on multiple height levels, combining climbing, sliding, balancing, and observation activities within one integrated unit. Children can move between platforms using climbing walls, rope elements, and transitions, while the stainless steel tube slide provides an exciting descent from upper levels. The tower encourages both individual challenges and shared play, making it suitable for busy public playgrounds where diverse age groups play together.

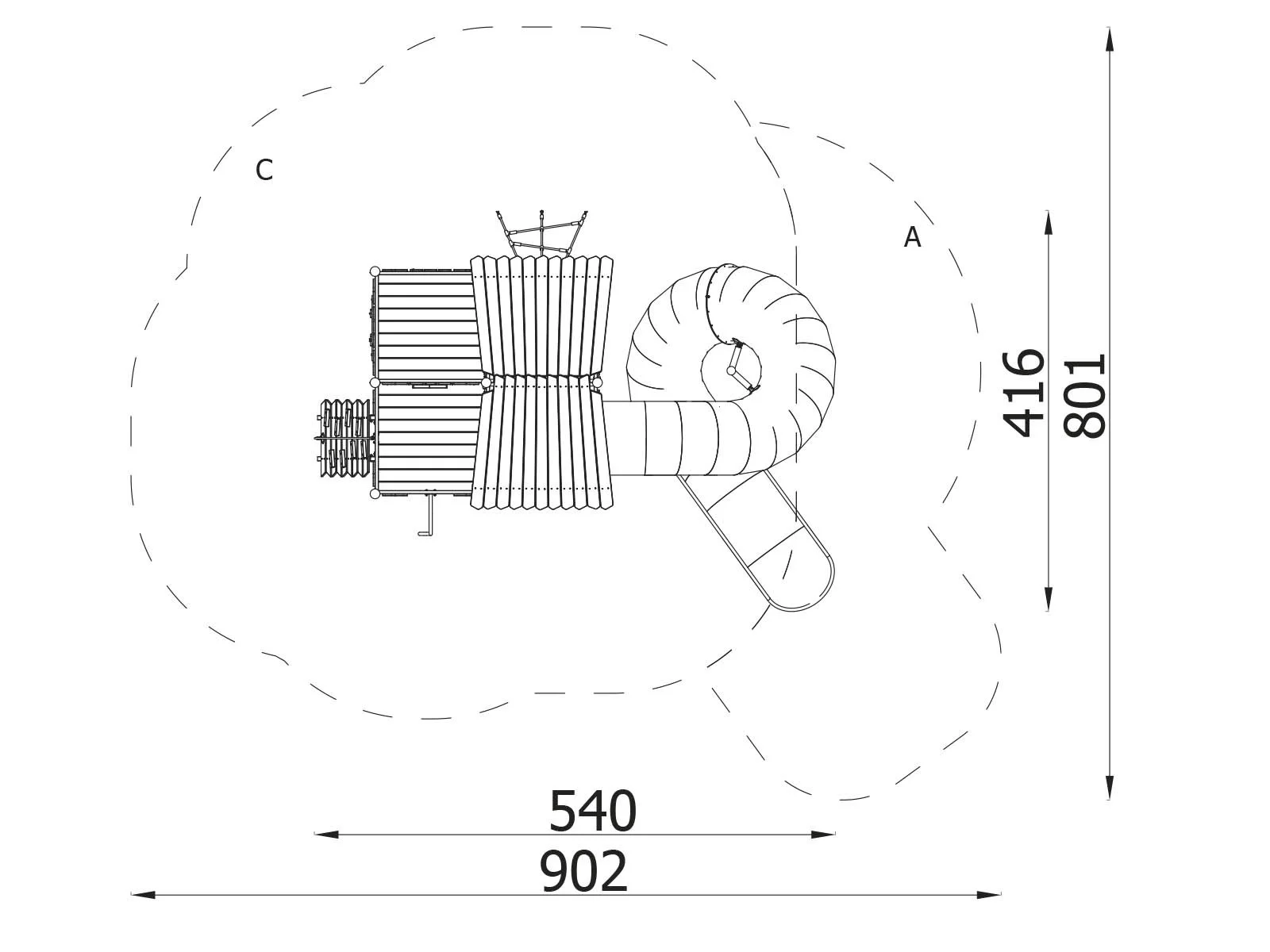

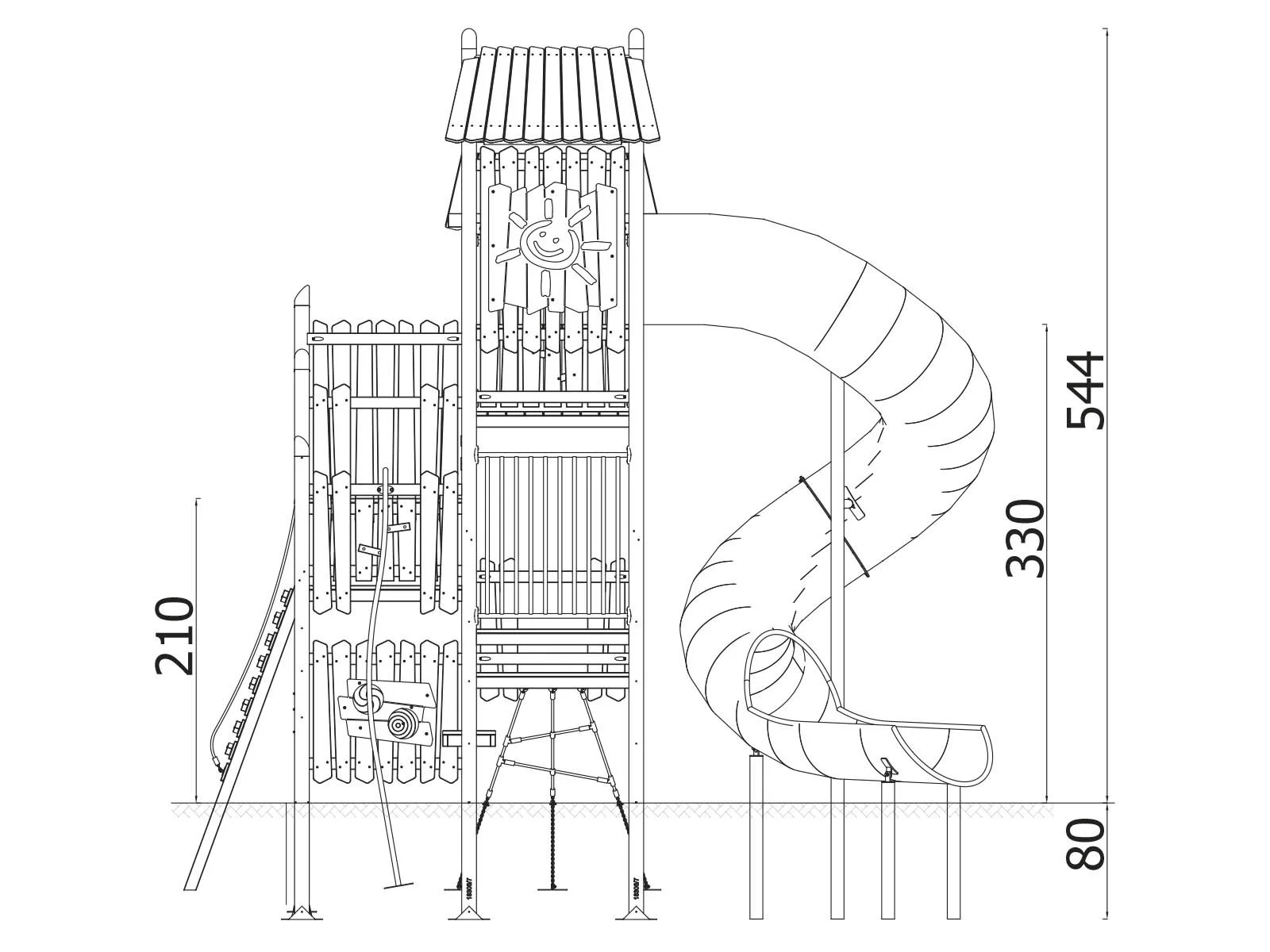

Dimensions & Technical Data
Length: 5.40 m
Width: 4.16 m
Height: 5.34 m
Maximum fall height: 2.10 m
User age range: 3–14 years
Number of users: 20
Materials & Construction
Load-bearing posts made of stainless steel
Platforms, roofs, and safety panels made of robinia acacia wood
Tunnel slide made of stainless steel
Climbing wall made of robinia acacia wood with wooden climbing elements
Firefighter’s pole made of stainless steel
Polypropylene ropes with a diameter of 16 mm, reinforced with a steel core
Weather-resistant and UV-resistant connectors and fittings
Anchored directly into the ground according to installation instructions
Equipment List
6× square platforms (115 × 115 cm) at heights of 90 cm, 120 cm, 150 cm, 210 cm, 270 cm, and 330 cm
1× stainless steel slide (330 cm)
2× single-pitched roofs
1× climbing entrance (150 cm)
3× climbing walls
1× climbing net (90 cm)
1× firefighter’s pole (150 cm)
4× metal railings
1× shelf
2× narrowing transitions
1× sliding panel
1× sun panel
1× circular panel
2× tall wooden plank panels
3× wooden plank panels
Benefits for Kids
Supports full-body physical development through climbing, sliding, balancing, and hanging
Improves strength, endurance, coordination, agility, and flexibility
Encourages confidence and overcoming height-related challenges
Develops spatial awareness and body control across multiple play levels
Stimulates imagination through elevated viewpoints and varied play routes
Promotes social interaction, cooperation, and shared play among larger groups
Safety & Standards
Complies with EN 1176-1+A1:2024-03
End
