Robinio Treasure Island 1 (6849)
A themed playground structure designed for climbing, sliding, and imaginative group play in public outdoor playgrounds.
Purpose
This adventure playground structure is designed for children aged 3 to 14 years and accommodates up to seven users at the same time. The set combines climbing, sliding, balancing, and resting elements into one coherent play experience inspired by exploration and discovery. Children can reach the slide via an inclined rope wall, cross rope elements, or relax in designated resting areas, allowing both active play and short breaks. The open layout encourages movement, cooperation, and imaginative play, making the structure suitable for public playgrounds with varied play needs.

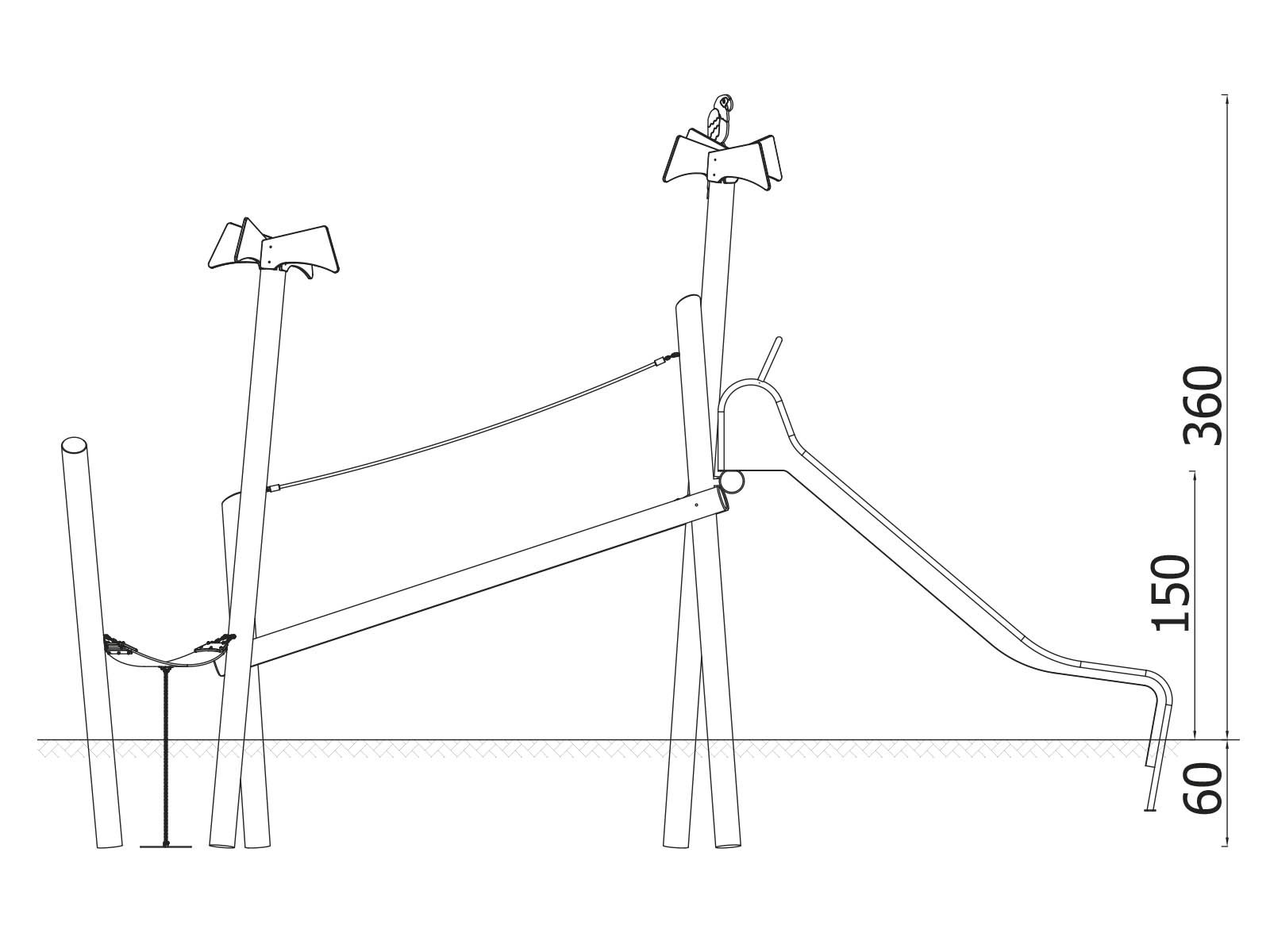

Dimensions & Technical Data
Length: 6.20 m
Width: 2.59 m
Height: 3.60 m
Maximum fall height: 1.50 m
User age range: 3–14 years
Number of users: 7
Materials & Construction
Support posts made of robinia acacia wood
Slide made of stainless steel
Elements made of high density polyethylene
Polypropylene ropes with a diameter of 16 mm, reinforced with a steel core
Weather-resistant and UV-resistant connectors and fittings
Anchored directly into the ground according to installation instructions
Equipment List
1× slide (150 cm)
1× rope net
1× horizontal rope
1× rubber seat
1× decorative parrot element
2× decorative palm tree elements
Benefits for Kids
Develops strength, coordination, and endurance through climbing and rope play
Improves balance and body control while moving between different elements
Encourages imaginative and role-based play inspired by exploration themes
Supports confidence building by overcoming physical challenges
Allows social interaction and cooperative play among multiple users
Provides a balance between active play and short resting moments
Safety & Standards
Complies with EN 1176-1+A1:2024-03
End
A themed playground structure designed for climbing, sliding, and imaginative group play in public outdoor playgrounds.
Purpose
This adventure playground structure is designed for children aged 3 to 14 years and accommodates up to seven users at the same time. The set combines climbing, sliding, balancing, and resting elements into one coherent play experience inspired by exploration and discovery. Children can reach the slide via an inclined rope wall, cross rope elements, or relax in designated resting areas, allowing both active play and short breaks. The open layout encourages movement, cooperation, and imaginative play, making the structure suitable for public playgrounds with varied play needs.
Dimensions & Technical Data
Length: 6.20 m
Width: 2.59 m
Height: 3.60 m
Maximum fall height: 1.50 m
User age range: 3–14 years
Number of users: 7
Materials & Construction
Support posts made of robinia acacia wood
Slide made of stainless steel
Elements made of high density polyethylene
Polypropylene ropes with a diameter of 16 mm, reinforced with a steel core
Weather-resistant and UV-resistant connectors and fittings
Anchored directly into the ground according to installation instructions
Equipment List
1× slide (150 cm)
1× rope net
1× horizontal rope
1× rubber seat
1× decorative parrot element
2× decorative palm tree elements
Benefits for Kids
Develops strength, coordination, and endurance through climbing and rope play
Improves balance and body control while moving between different elements
Encourages imaginative and role-based play inspired by exploration themes
Supports confidence building by overcoming physical challenges
Allows social interaction and cooperative play among multiple users
Provides a balance between active play and short resting moments
Safety & Standards
Complies with EN 1176-1+A1:2024-03
End

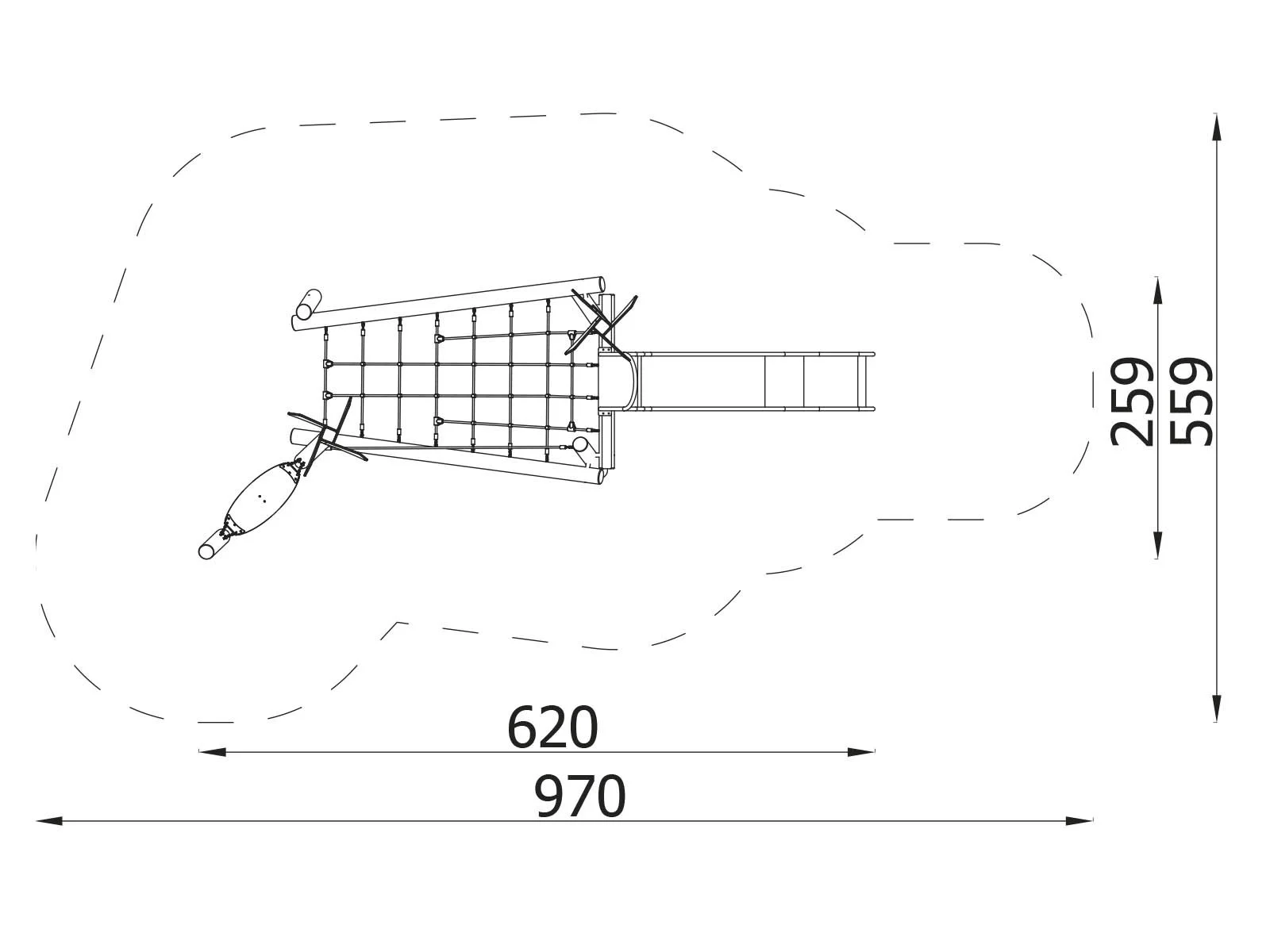

Download Technical Documentation For The Robinio Treasure Island 1
The technical card and top-view DWG file provide key dimensions and layout information for architectural and landscape planning.
