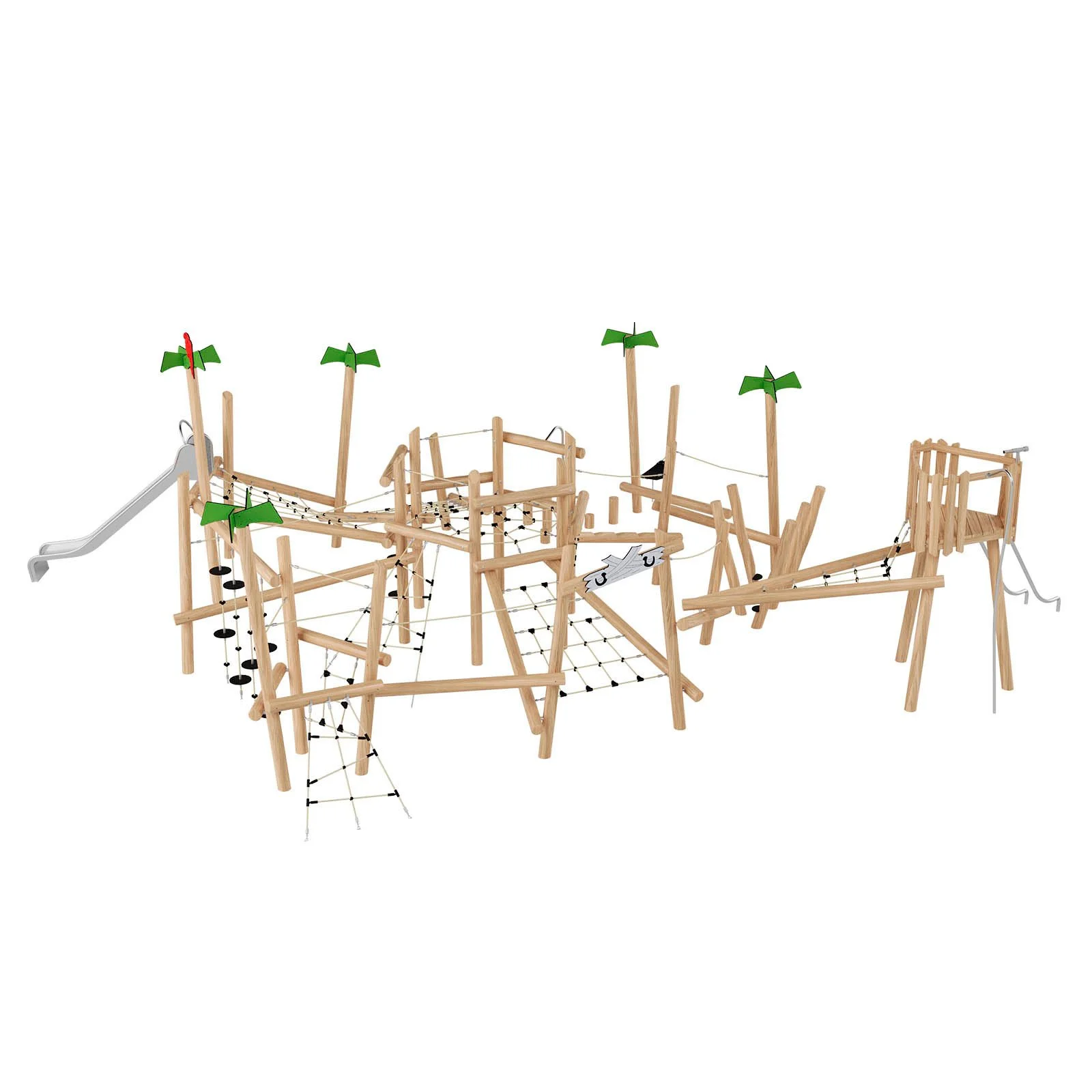

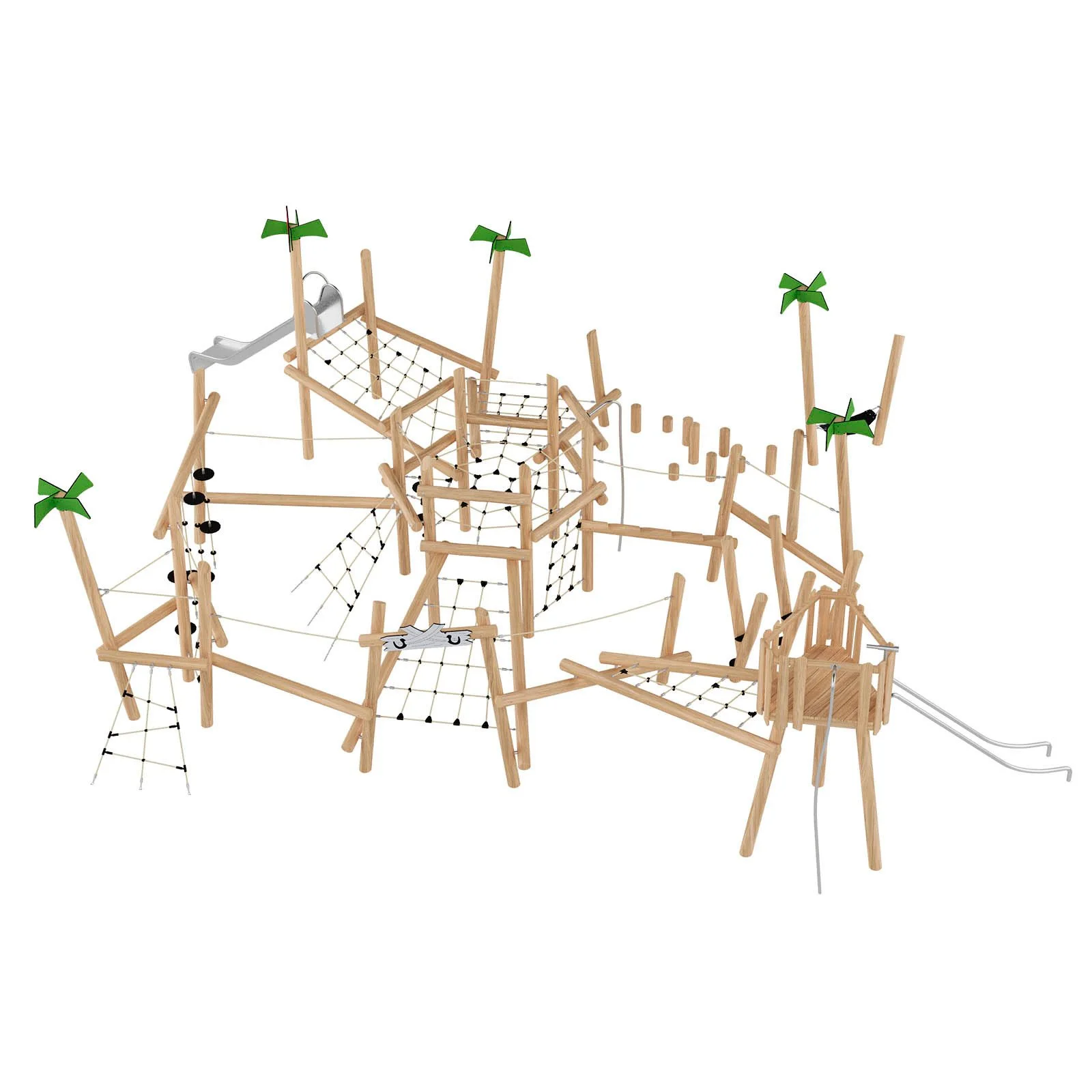

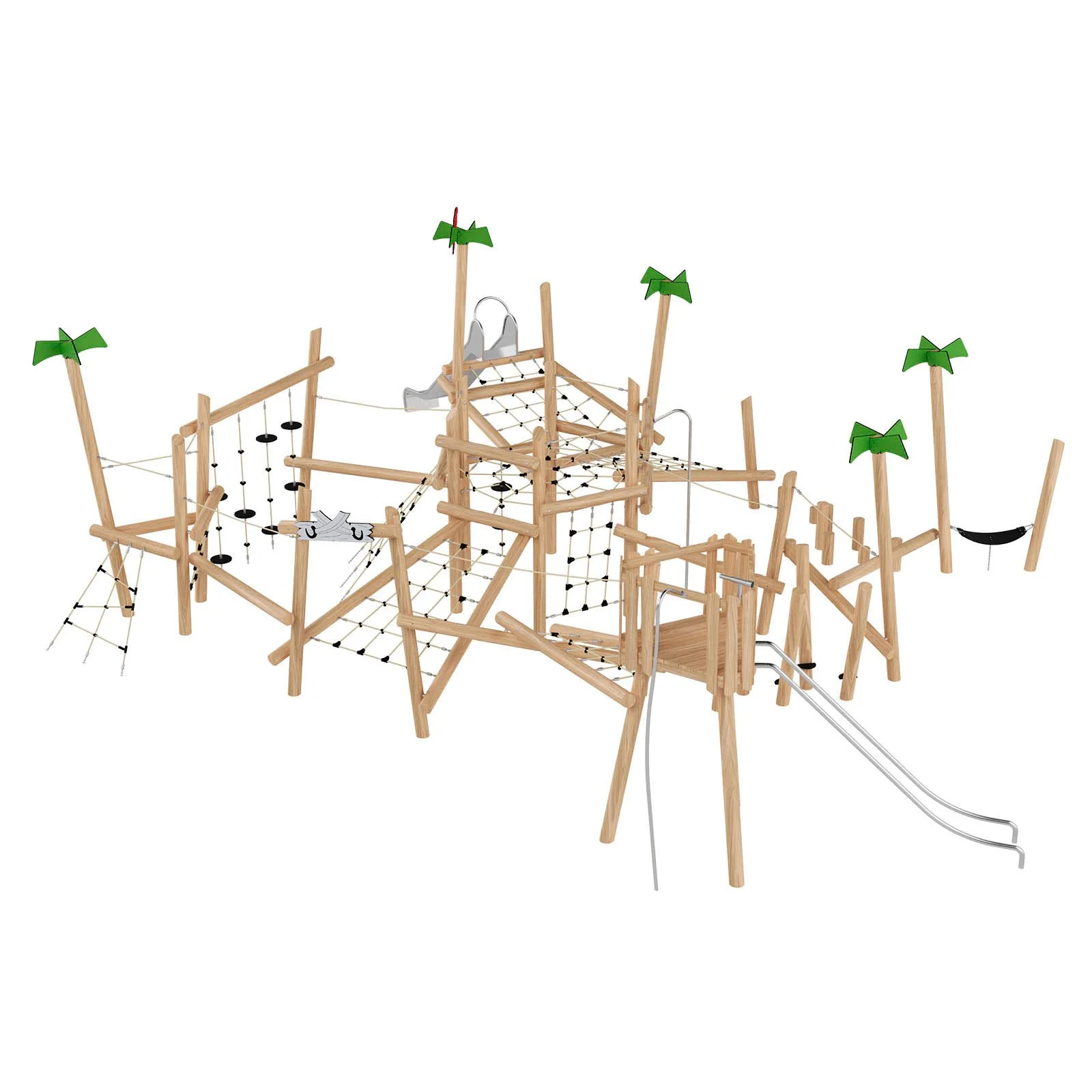

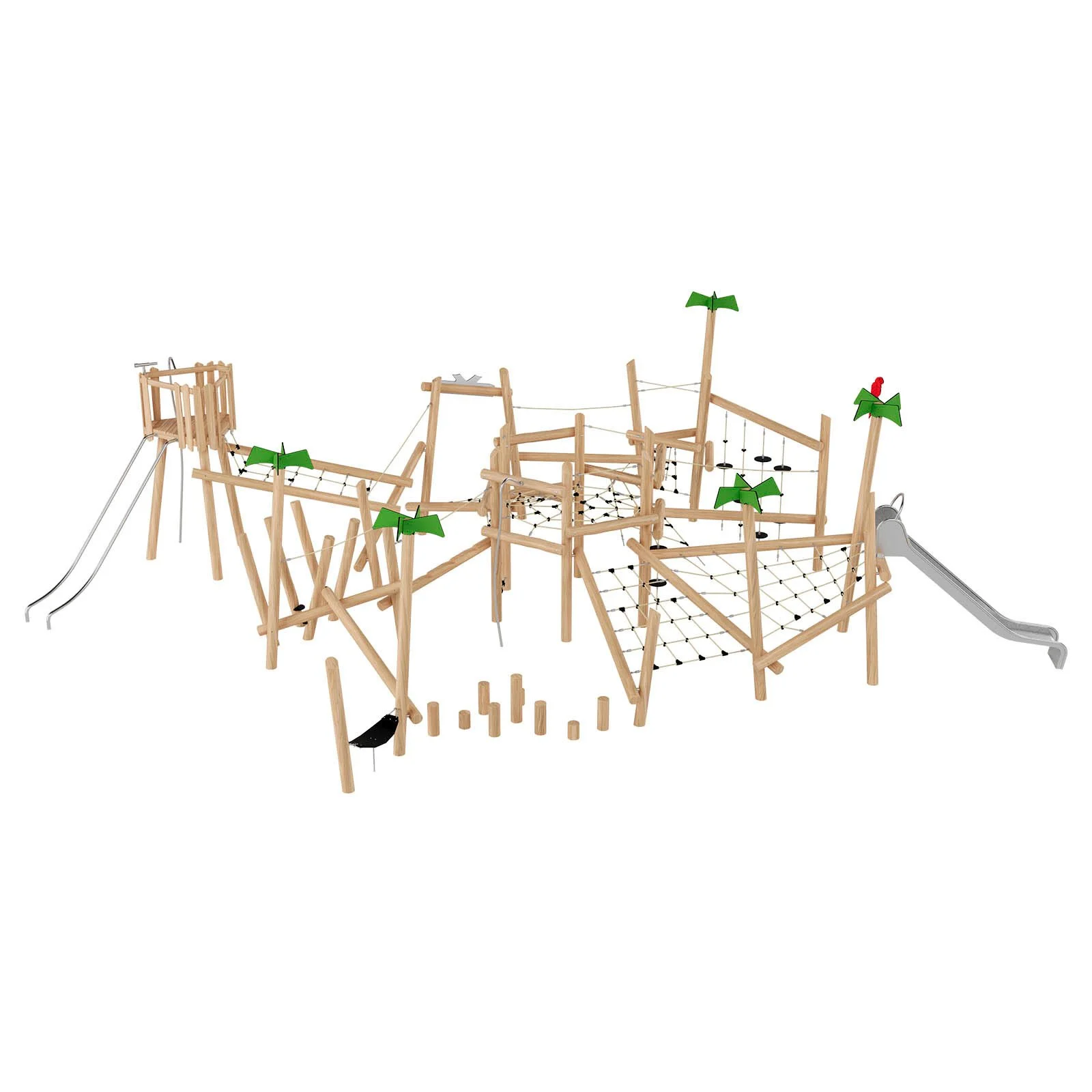

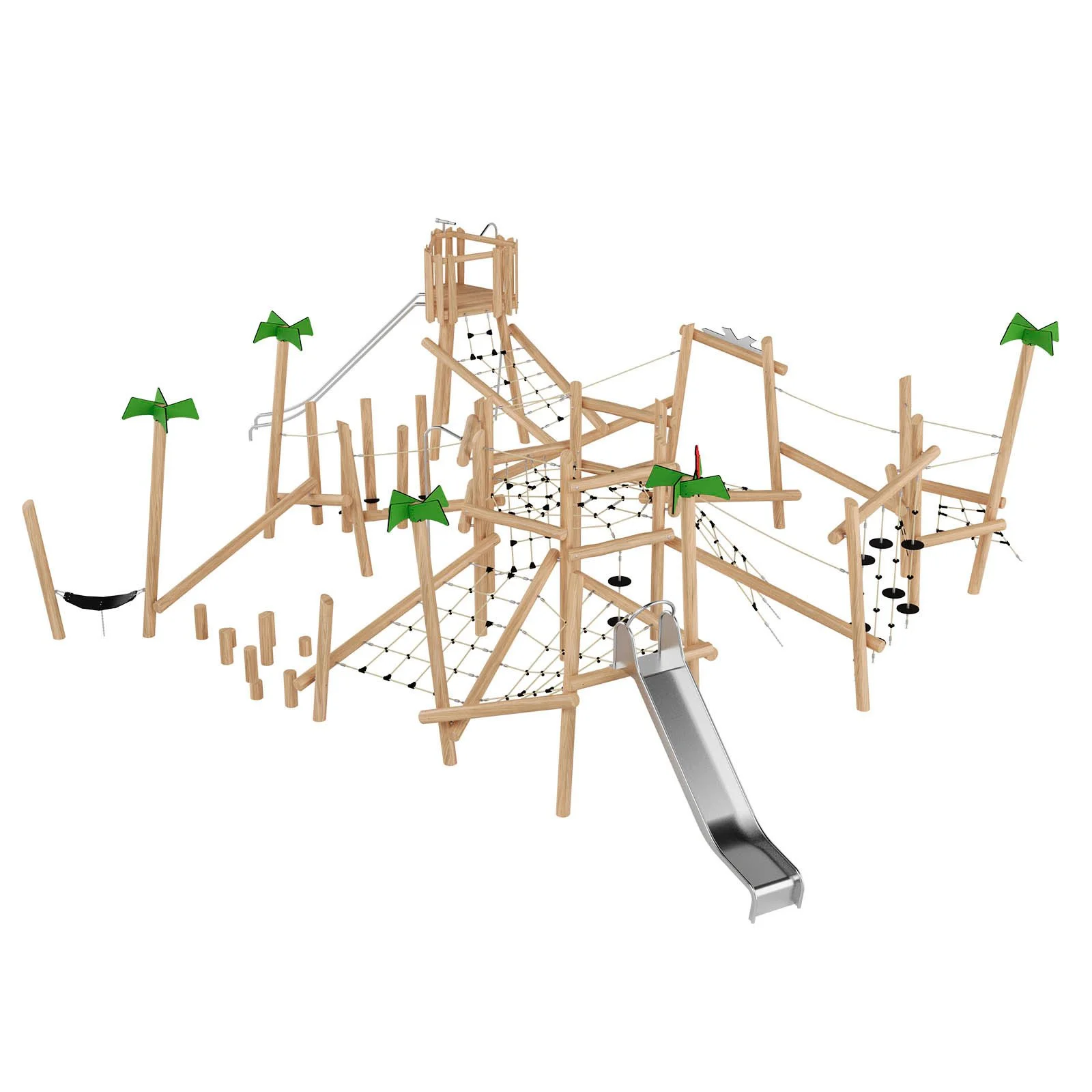

Robinio Treasure Island 3 (6851)
A large-scale playground adventure structure designed for intensive group play in public outdoor playgrounds.
Purpose
This extensive adventure playground set is designed for children aged 3 to 14 years and can accommodate up to fifty users at the same time. As the largest structure in the Robinio Treasure Island series, it offers a wide range of physical challenges and play scenarios that encourage continuous movement, exploration, and cooperation. Children can climb, swing, jump, slide, and balance across interconnected elements, while observation points and rest areas allow pauses between activities. The layout supports both individual challenges and large-group play, making it ideal for high-capacity public playgrounds.
Dimensions & Technical Data
Length: 12.08 m
Width: 9.31 m
Height: 3.60 m
Maximum fall height: 2.10 m
User age range: 3–14 years
Number of users: 50
Materials & Construction
Support posts made of robinia acacia wood
Slides and tube slide made of stainless steel
Fireman’s poles made of stainless steel
Elements made of high density polyethylene
Polypropylene ropes with a diameter of 16 mm, reinforced with a steel core
Weather-resistant and UV-resistant connectors and fittings
Anchored directly into the ground according to installation instructions
Equipment List
1× slide (150 cm)
1× nest swing
1× hexagonal net
4× rope nets
4× rope entrances
10× horizontal ropes
1× fireman’s pole (150 cm)
1× fireman’s pole (210 cm)
1× tube slide (210 cm)
1× rope passage with discs
1× rubber seat
1× jumping poles
1× stepping poles
1× telescope
1× decorative parrot
5× decorative palm trees
Benefits for Kids
Develops full-body strength, endurance, and coordination through varied climbing and rope activities
Improves balance, agility, and motor planning with jumping, stepping, and elevated passages
Encourages confidence and resilience by overcoming height and movement challenges
Supports social interaction, teamwork, and cooperative play in large groups
Stimulates imagination and role-based play through adventure-themed elements
Promotes sustained physical activity and healthy energy release in outdoor environments
Safety & Standards
Complies with EN 1176-1+A1:2024-03 6851
End
A large-scale playground adventure structure designed for intensive group play in public outdoor playgrounds.
Purpose
This extensive adventure playground set is designed for children aged 3 to 14 years and can accommodate up to fifty users at the same time. As the largest structure in the Robinio Treasure Island series, it offers a wide range of physical challenges and play scenarios that encourage continuous movement, exploration, and cooperation. Children can climb, swing, jump, slide, and balance across interconnected elements, while observation points and rest areas allow pauses between activities. The layout supports both individual challenges and large-group play, making it ideal for high-capacity public playgrounds.
Dimensions & Technical Data
Length: 12.08 m
Width: 9.31 m
Height: 3.60 m
Maximum fall height: 2.10 m
User age range: 3–14 years
Number of users: 50
Materials & Construction
Support posts made of robinia acacia wood
Slides and tube slide made of stainless steel
Fireman’s poles made of stainless steel
Elements made of high density polyethylene
Polypropylene ropes with a diameter of 16 mm, reinforced with a steel core
Weather-resistant and UV-resistant connectors and fittings
Anchored directly into the ground according to installation instructions
Equipment List
1× slide (150 cm)
1× nest swing
1× hexagonal net
4× rope nets
4× rope entrances
10× horizontal ropes
1× fireman’s pole (150 cm)
1× fireman’s pole (210 cm)
1× tube slide (210 cm)
1× rope passage with discs
1× rubber seat
1× jumping poles
1× stepping poles
1× telescope
1× decorative parrot
5× decorative palm trees
Benefits for Kids
Develops full-body strength, endurance, and coordination through varied climbing and rope activities
Improves balance, agility, and motor planning with jumping, stepping, and elevated passages
Encourages confidence and resilience by overcoming height and movement challenges
Supports social interaction, teamwork, and cooperative play in large groups
Stimulates imagination and role-based play through adventure-themed elements
Promotes sustained physical activity and healthy energy release in outdoor environments
Safety & Standards
Complies with EN 1176-1+A1:2024-03 6851
End

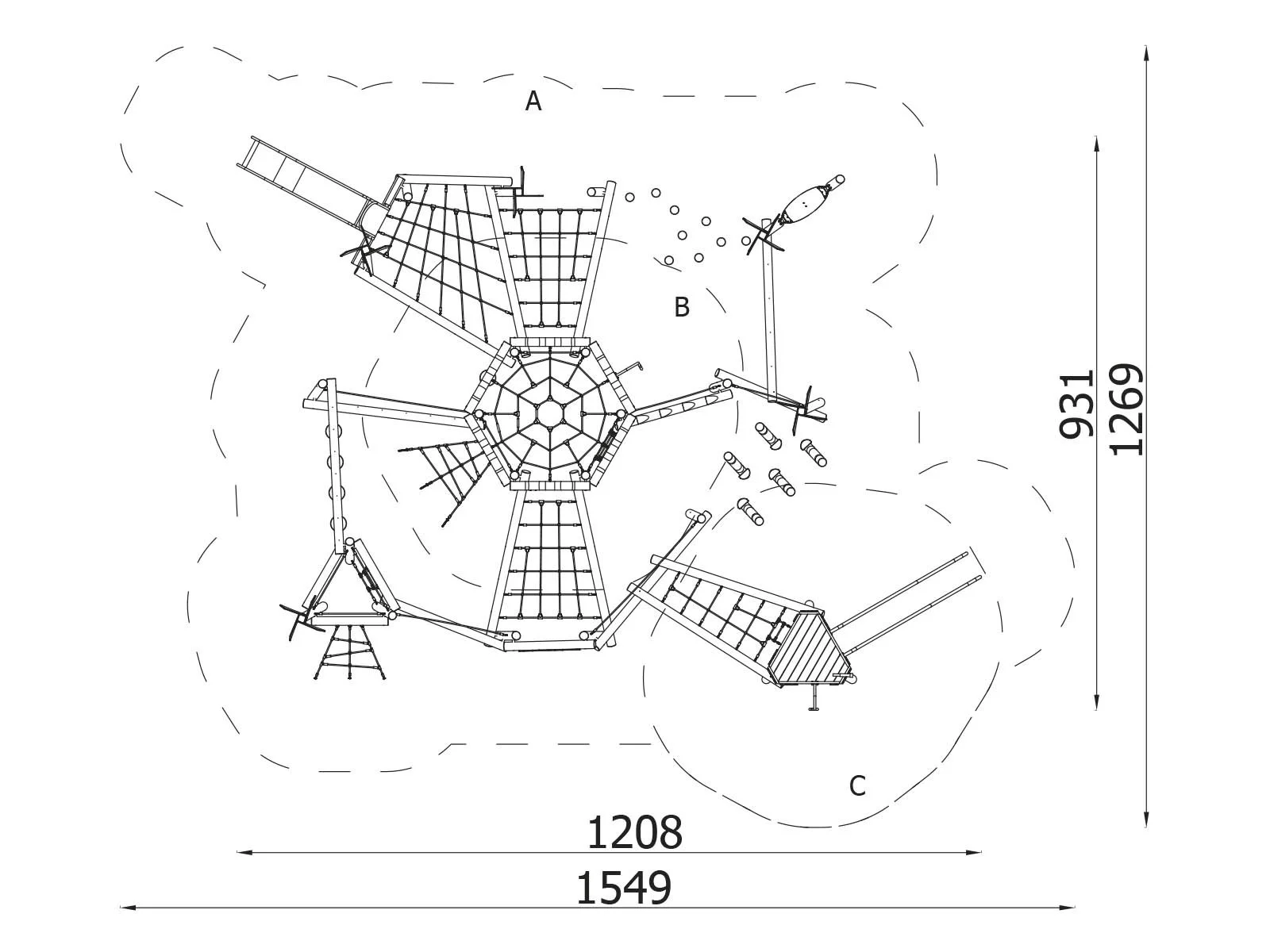

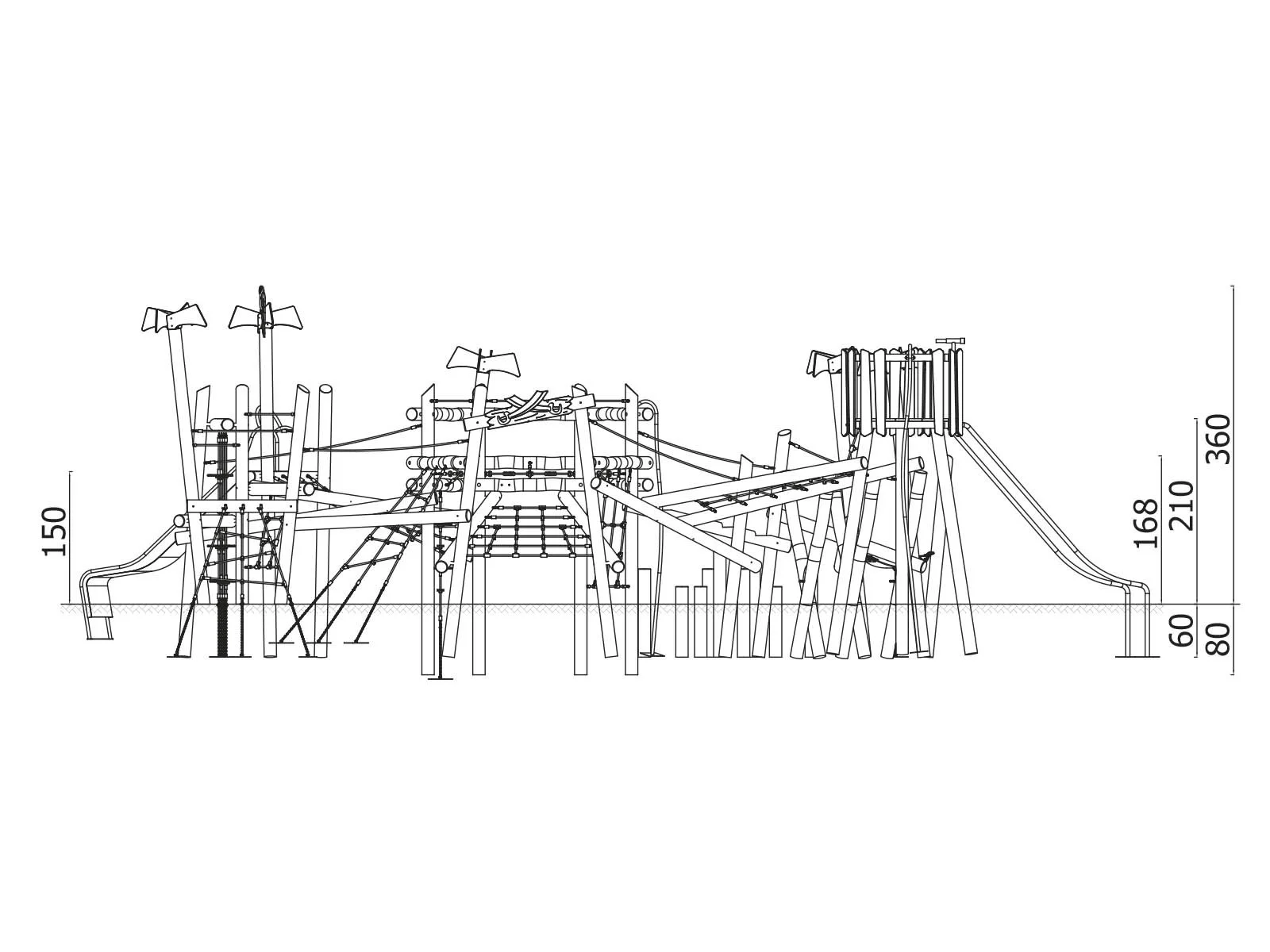

Download Technical Documentation For The Robinio Treasure Island 3
The technical card and top-view DWG file provide key dimensions and layout information for architectural and landscape planning.
