Download Technical Documentation For The Robinio Triple Swing (without seats)

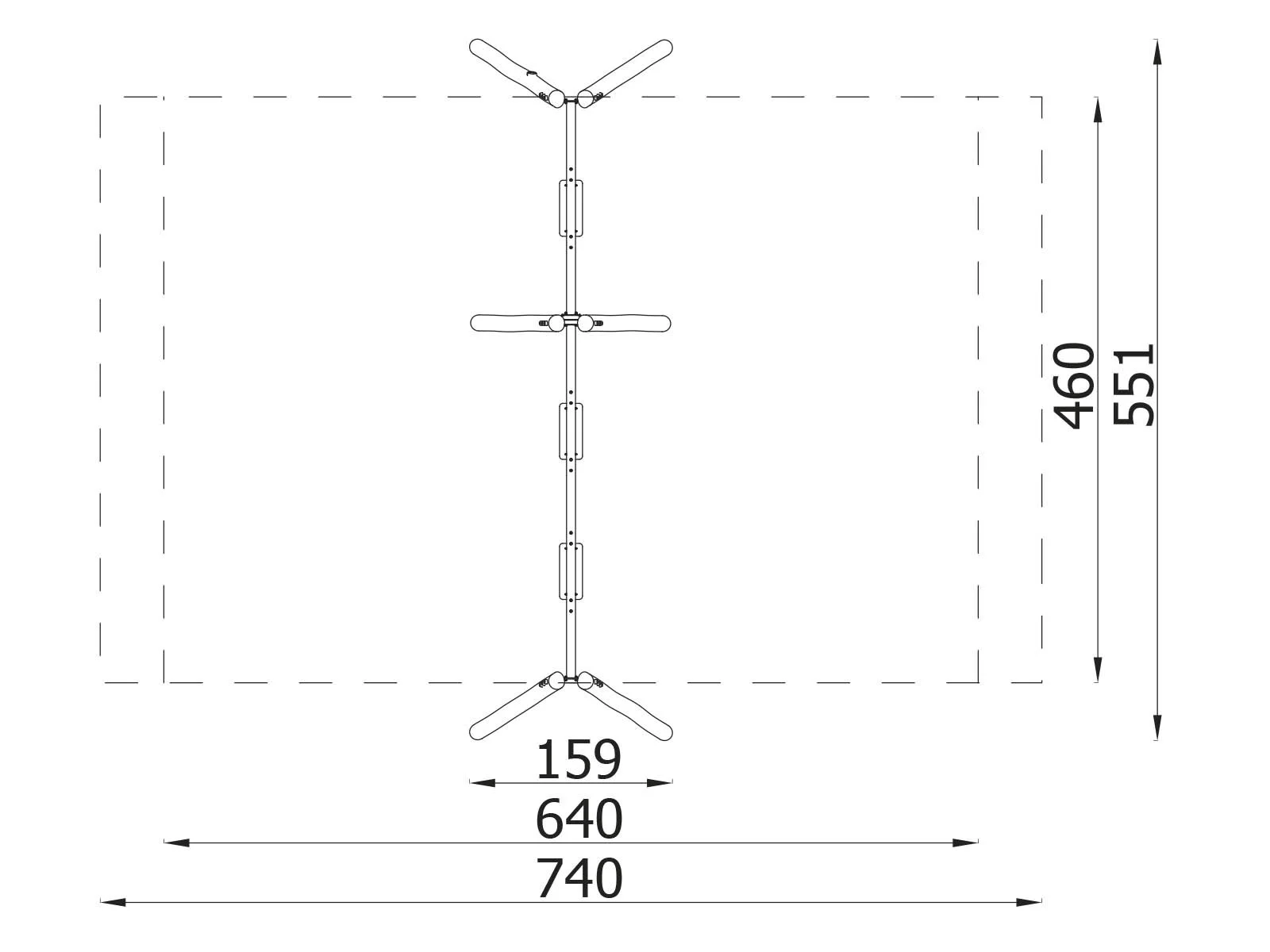

The technical card and top-view DWG file provide key dimensions and layout information for architectural and landscape planning.
Purpose
This triple swing frame is designed for children aged 3 to 14 years and allows up to three users to swing at the same time. The structure provides a classic playground activity that supports shared play and physical movement, making it suitable for busy public playgrounds. The frame is supplied without seats, allowing operators to choose compatible straight or basket swing seats according to the needs of the playground and the intended age group.

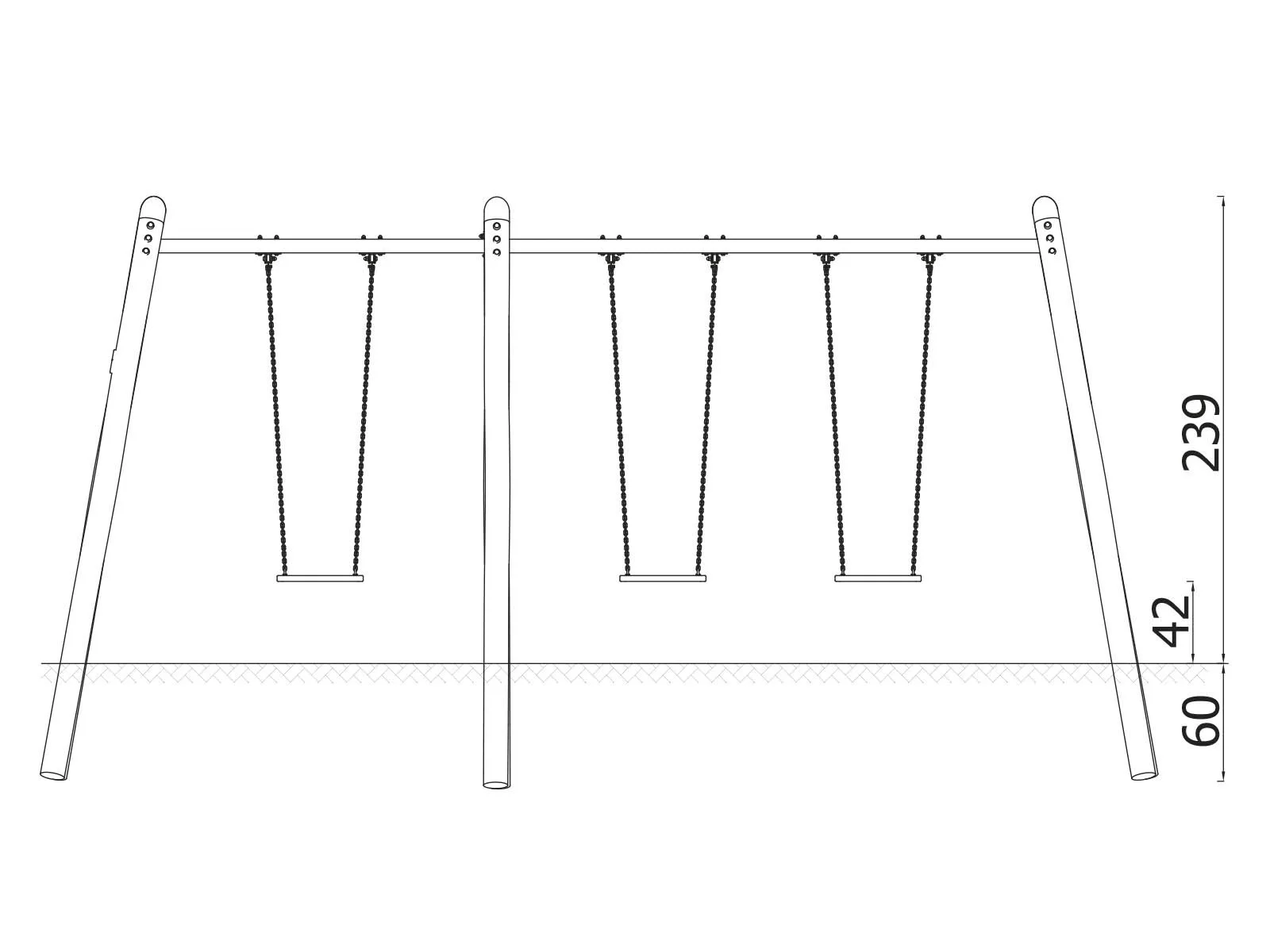

Dimensions & Technical Data
Length: 5.51 m
Width: 1.59 m
Height: 2.39 m
Maximum fall height: 1.30 m
User age range: 3–14 years
Number of users: 3

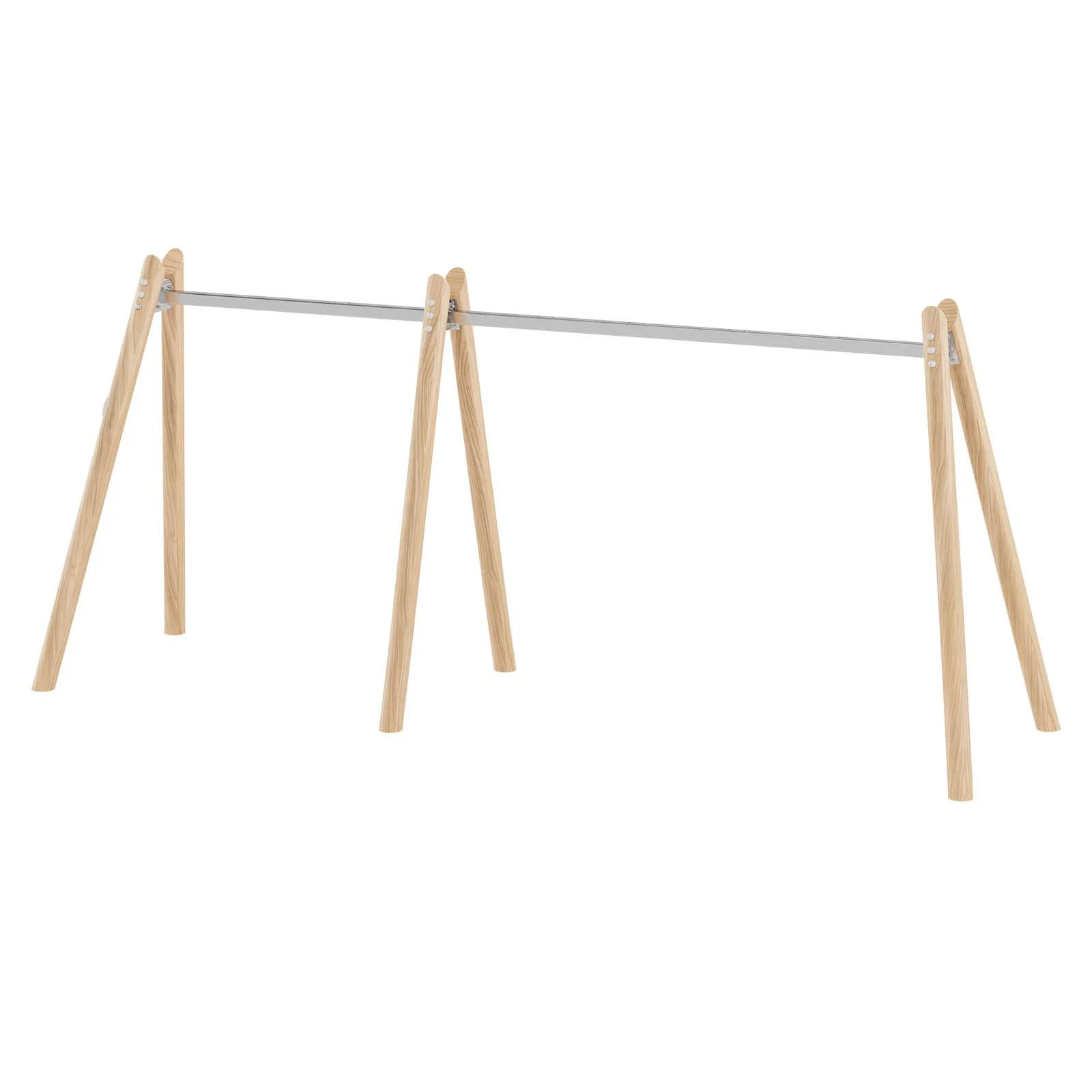

Materials & Construction
Structural frame made of black locust wood
Swing beam made of stainless steel
Chains made of stainless steel
Weather-resistant and UV-resistant connectors and fittings
Anchored directly into the ground according to installation instructions
Equipment List
1× triple swing frame (without seats)
Benefits for Kids
Develops balance and coordination through rhythmic swinging motion
Strengthens core and lower body muscles during active play
Encourages social interaction by allowing multiple children to play together
Supports spatial awareness and body control
Provides a simple, familiar form of play suitable for a wide age range
Promotes outdoor physical activity and energy release
Safety & Standards
Complies with EN 1176-1+A1:2024-03
End
