Download Technical Documentation For The Swing Superline Robinio

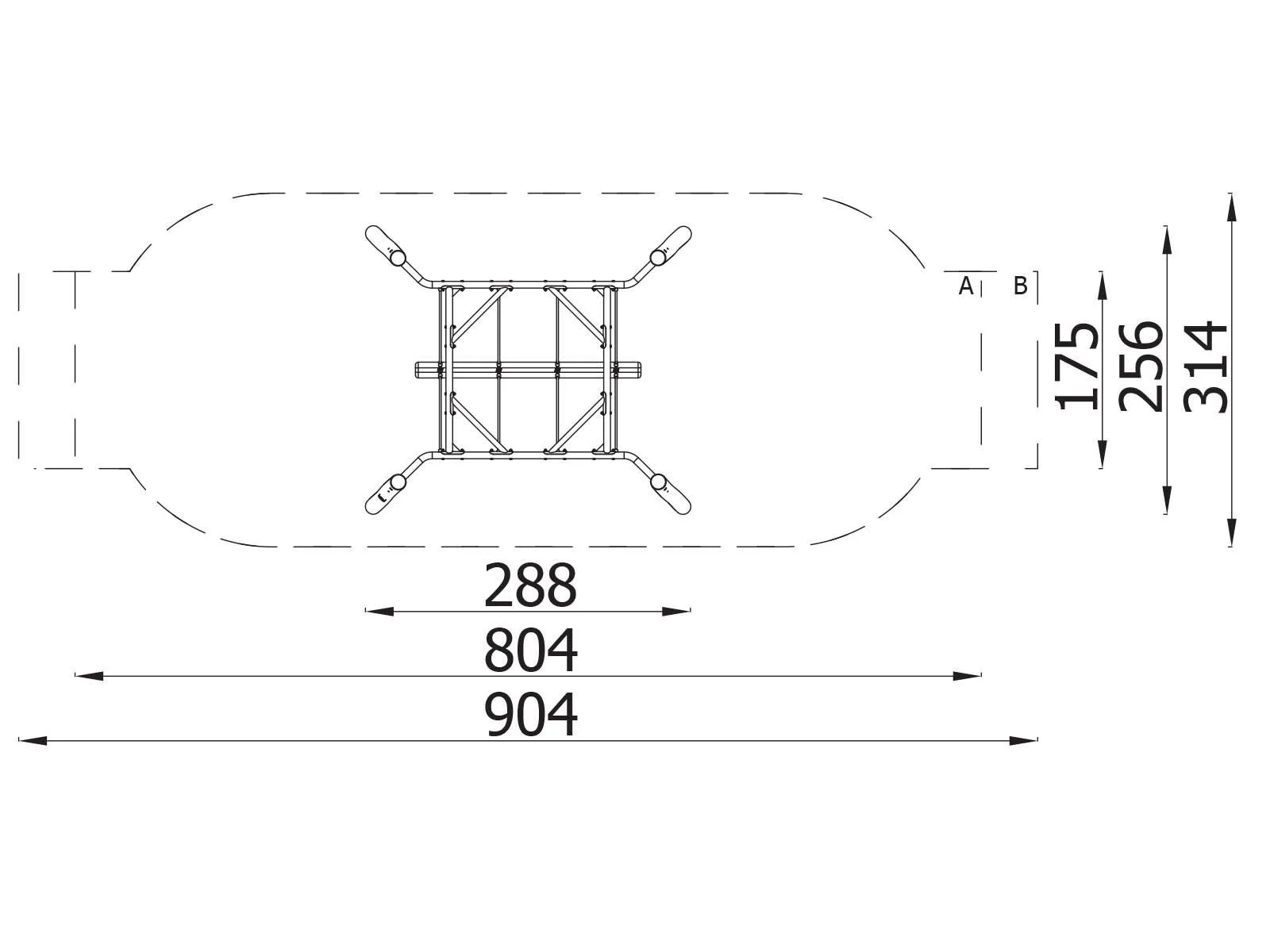

The technical card and top-view DWG file provide key dimensions and layout information for architectural and landscape planning.
Purpose

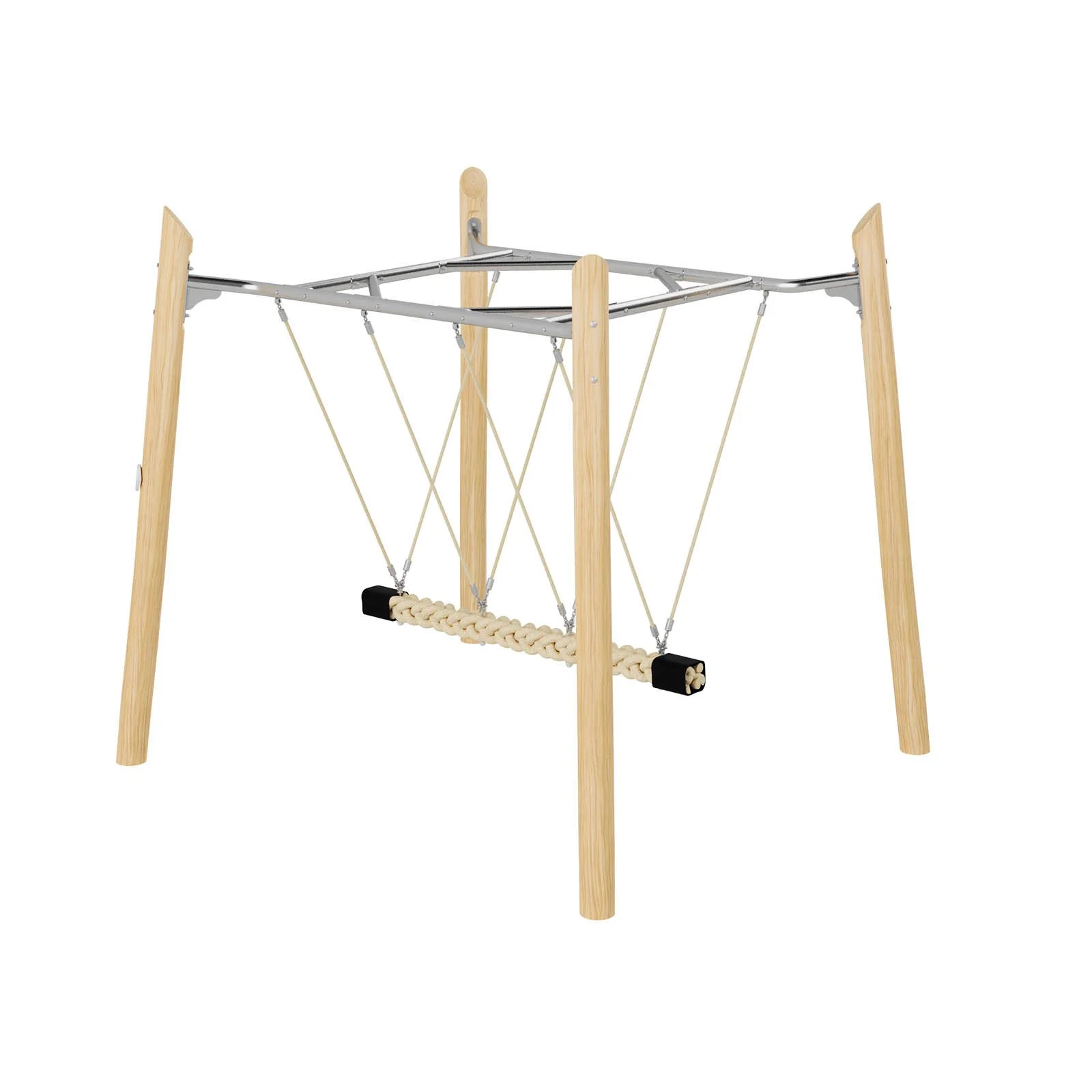

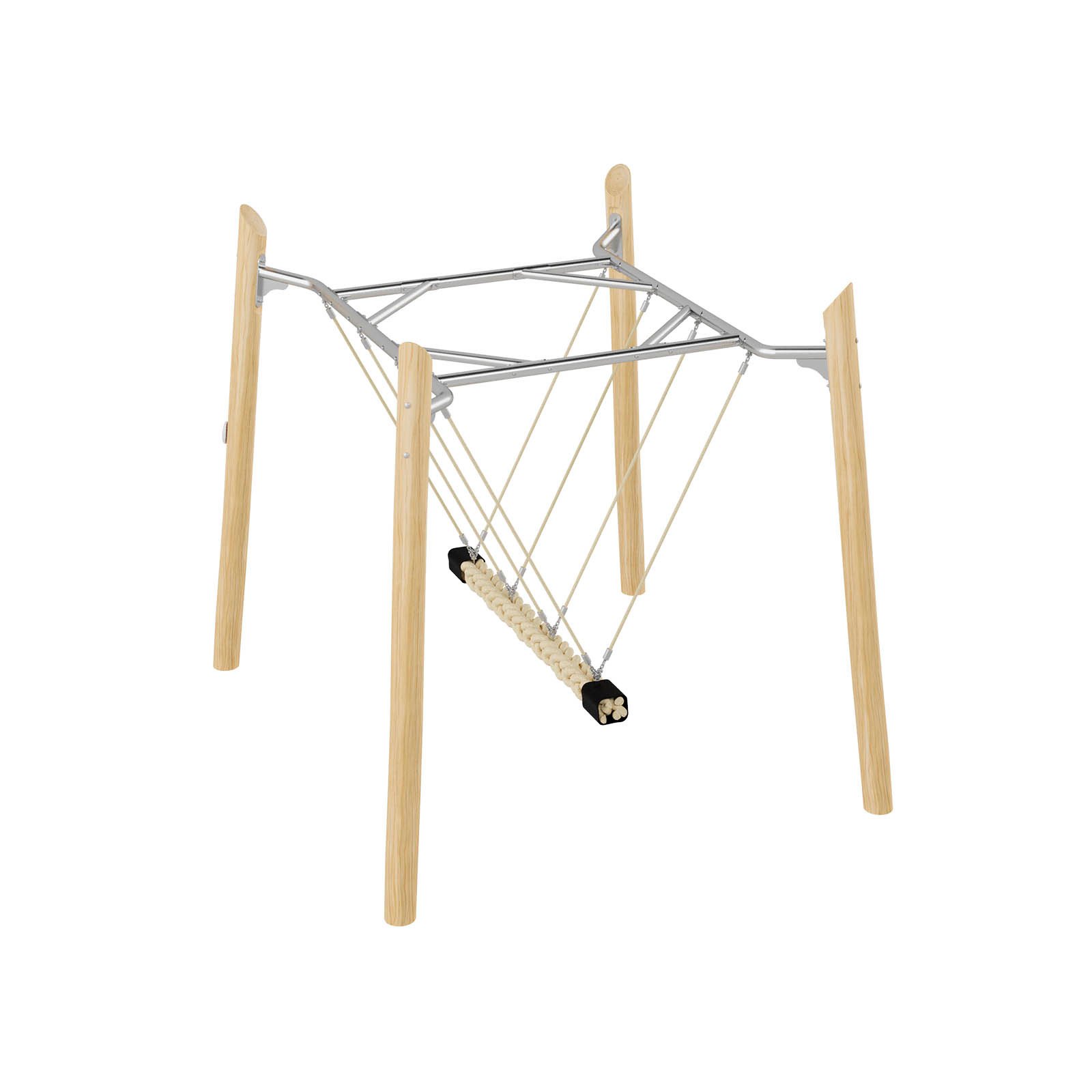

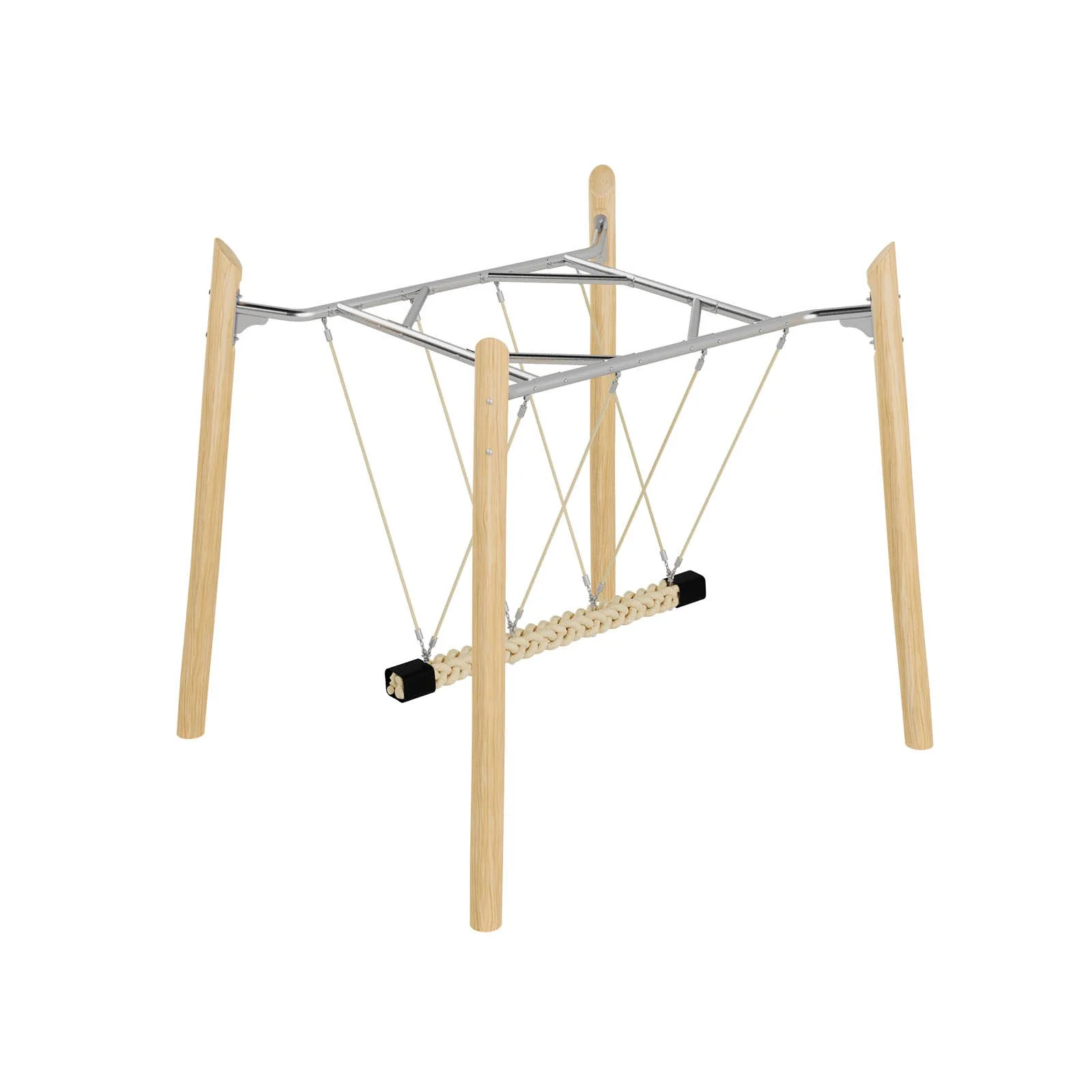

This multi-person swing is designed for children aged 3 to 14 years and allows up to three users to play together at the same time. The structure encourages shared play, as effective swinging requires coordinated, rhythmic movement from all participants. This promotes cooperation, communication, and teamwork while providing an engaging physical activity that supports balance, body control, and sensory stimulation. The swing is well suited for public playgrounds where social interaction and group play are key elements of the play environment.
Dimensions & Technical Data
Length: 2.56 m
Width: 2.88 m
Height: 2.57 m
Maximum fall height: 1.39 m
User age range: 3–14 years
Number of users: 3
Materials & Construction
Support posts made of robinia acacia wood
Structural frame made of stainless steel
Polypropylene ropes with a diameter of 16 mm, reinforced with a steel core
Weather-resistant and UV-resistant connectors and fittings
Anchored directly into the ground according to installation instructions
Equipment List
1× super rope swing element
Benefits for Kids
Develops balance and coordination through synchronized swinging motion
Encourages teamwork, cooperation, and communication
Strengthens core and postural muscles during active movement
Stimulates the vestibular system and body awareness
Builds social skills through shared physical activity
Promotes active outdoor play and healthy energy release
Safety & Standards
Complies with EN 1176-1+A1:2024-03 6811
End
Purpose
This multi-person swing is designed for children aged 3 to 14 years and allows up to three users to play together at the same time. The structure encourages shared play, as effective swinging requires coordinated, rhythmic movement from all participants. This promotes cooperation, communication, and teamwork while providing an engaging physical activity that supports balance, body control, and sensory stimulation. The swing is well suited for public playgrounds where social interaction and group play are key elements of the play environment.
Dimensions & Technical Data
Length: 2.56 m
Width: 2.88 m
Height: 2.57 m
Maximum fall height: 1.39 m
User age range: 3–14 years
Number of users: 3
Materials & Construction
Support posts made of robinia acacia wood
Structural frame made of stainless steel
Polypropylene ropes with a diameter of 16 mm, reinforced with a steel core
Weather-resistant and UV-resistant connectors and fittings
Anchored directly into the ground according to installation instructions
Equipment List
1× super rope swing element
Benefits for Kids
Develops balance and coordination through synchronized swinging motion
Encourages teamwork, cooperation, and communication
Strengthens core and postural muscles during active movement
Stimulates the vestibular system and body awareness
Builds social skills through shared physical activity
Promotes active outdoor play and healthy energy release
Safety & Standards
Complies with EN 1176-1+A1:2024-03 6811
End
