Download Technical Documentation For The Terra Drawing Board (large)

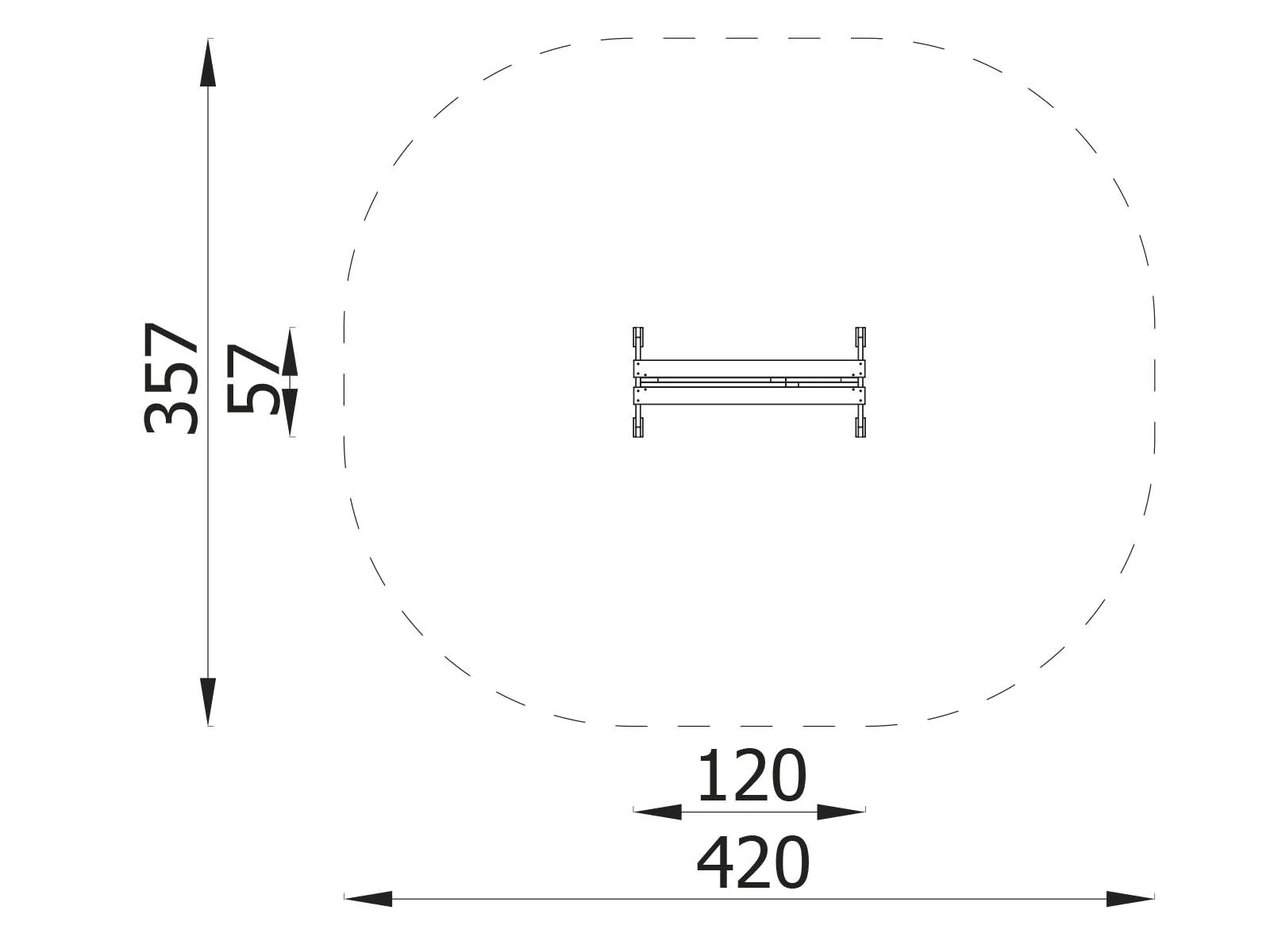

The technical card and top-view DWG file provide key dimensions and layout information for architectural and landscape planning.
Purpose

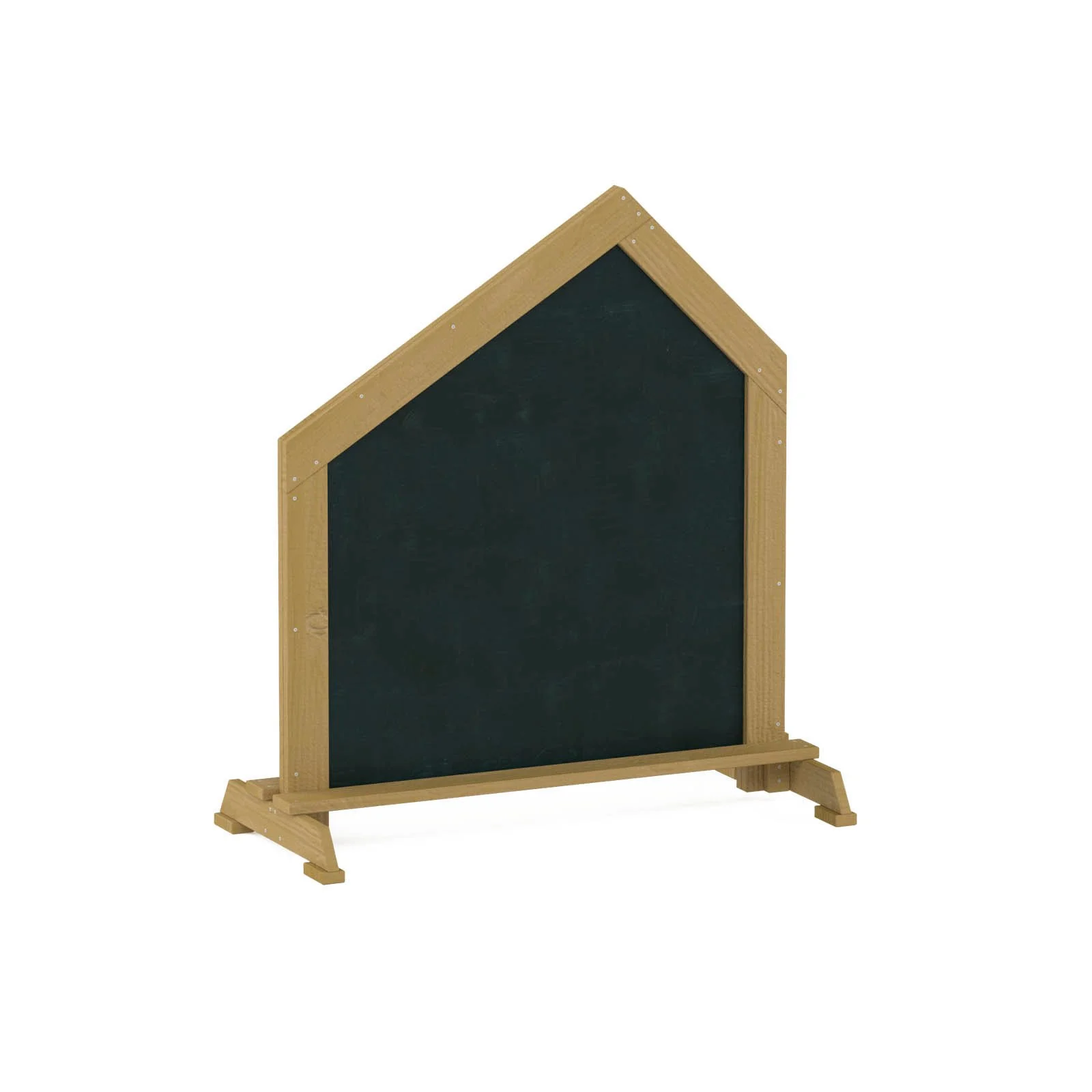

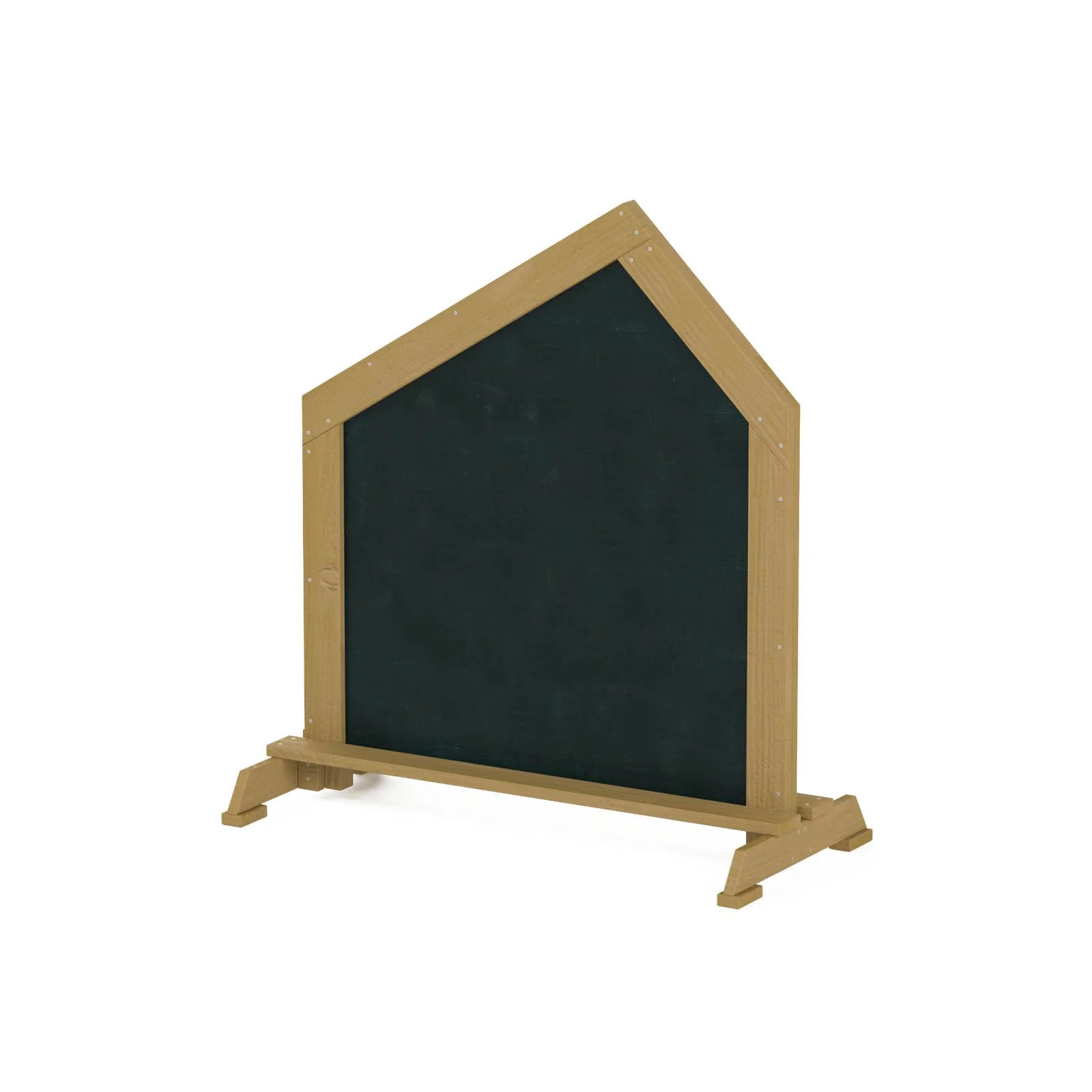

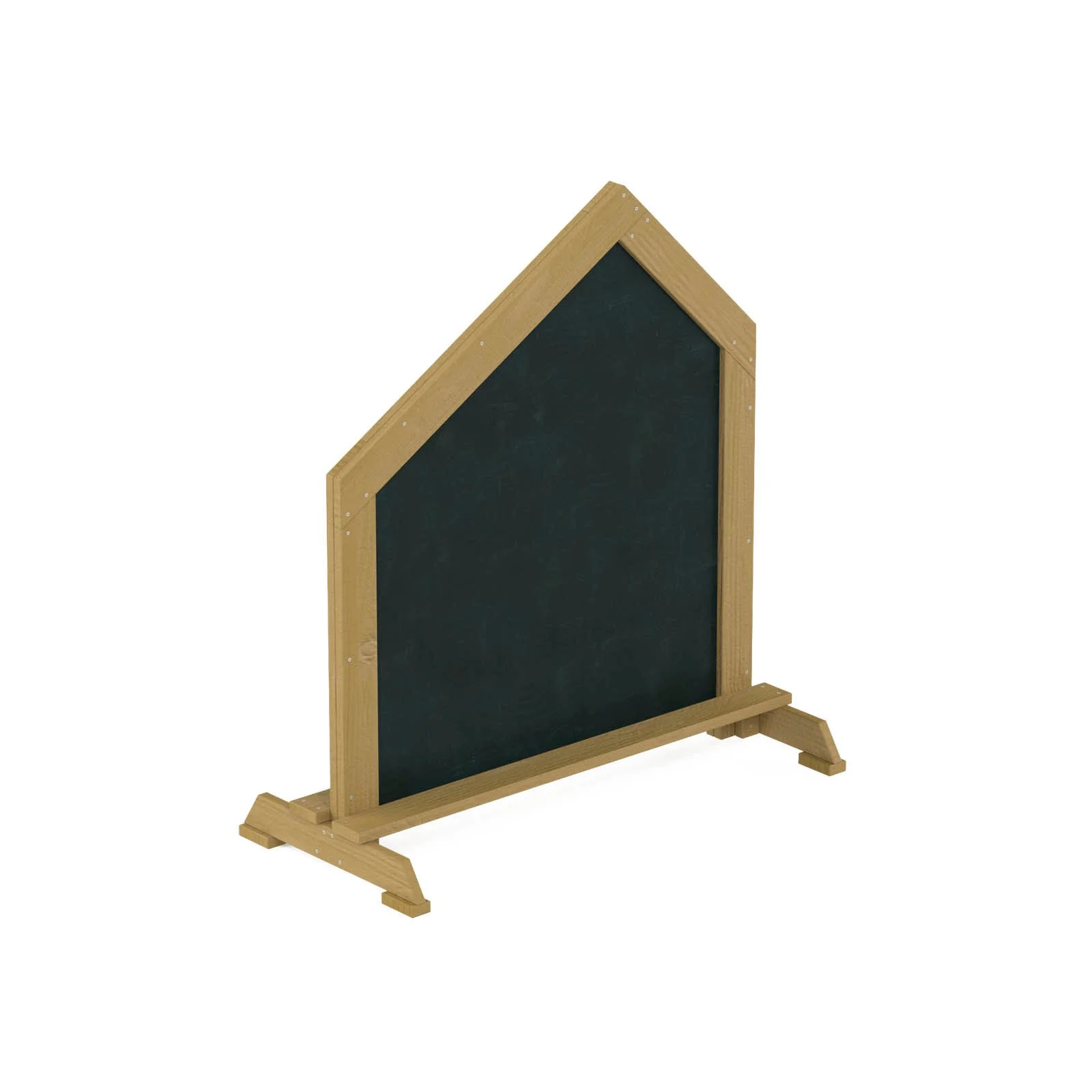

This large drawing board from the Terra sensory playground line is designed for children aged 1 to 7 years and supports up to two users at the same time. The spacious chalkboard surface encourages free drawing, writing, and visual expression, supporting creativity, imagination, and early communication skills. Shared use promotes cooperation and social interaction, while the calm, natural form invites focused and sensory-rich play. Made of natural wood, the board integrates seamlessly into outdoor learning environments inspired by nature-based and sensory education.

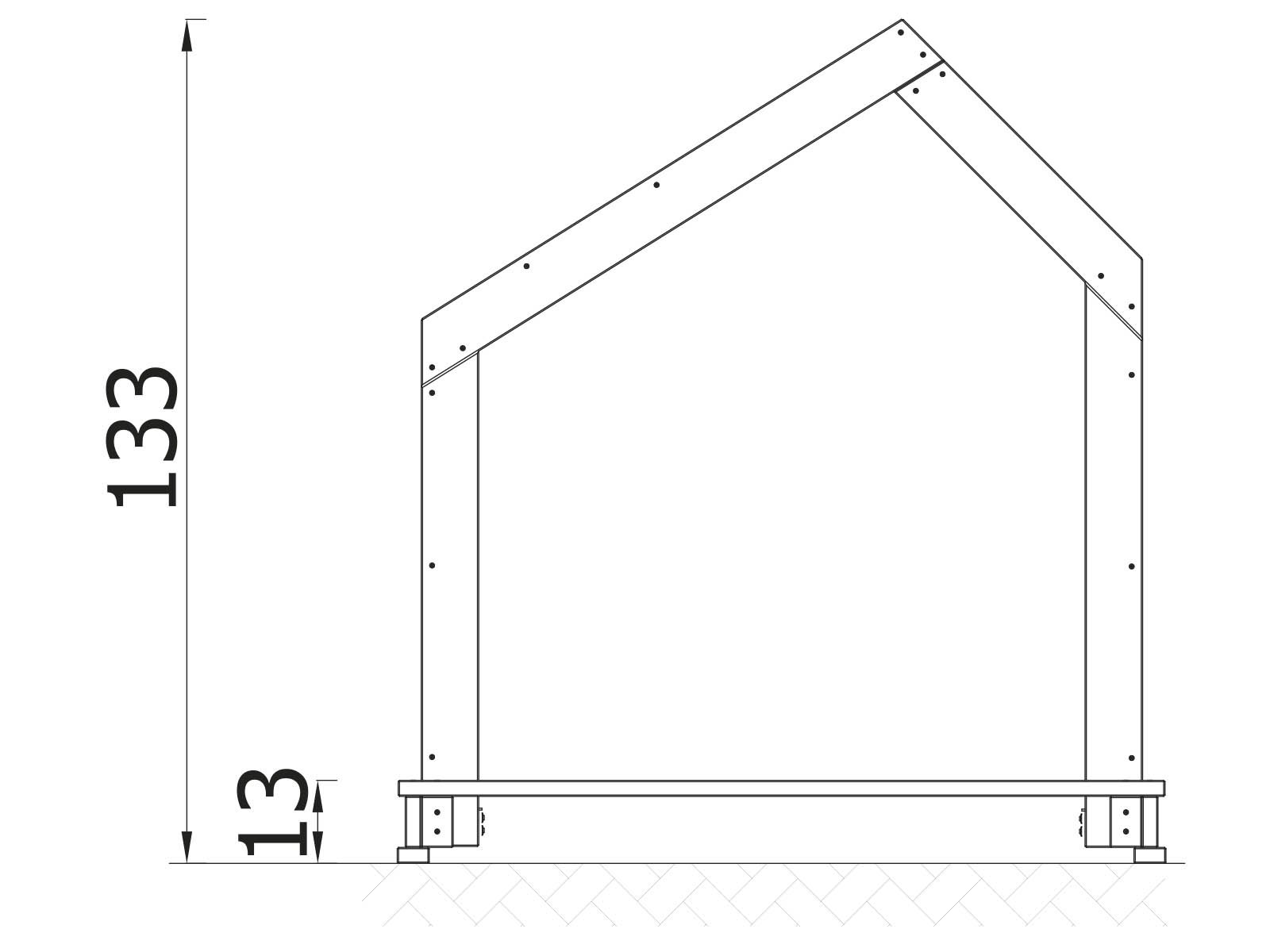

Dimensions & Technical Data
Length: 1.20 m
Width: 0.57 m
Height: 1.33 m
Maximum fall height: 0.00 m
User age range: 1–7 years
Number of users: 2
Materials & Construction
Structure made of natural pine wood planks
Wood vacuum impregnated for durability and weather resistance
Drawing surface made of plywood covered with a chalk-compatible layer
All connectors and fittings are weather-resistant and UV-resistant
Freestanding construction suitable for flexible outdoor layouts
Equipment List
1× drawing board
Benefits for Kids
Encourages creative expression through drawing and writing
Supports fine motor skills and hand control
Promotes cooperation and shared play experiences
Stimulates imagination and early communication
Encourages calm, focused sensory play outdoors
Strengthens connection with nature through natural wooden materials
Safety & Standards
Complies with EN 71 58605
End
Purpose
This large drawing board from the Terra sensory playground line is designed for children aged 1 to 7 years and supports up to two users at the same time. The spacious chalkboard surface encourages free drawing, writing, and visual expression, supporting creativity, imagination, and early communication skills. Shared use promotes cooperation and social interaction, while the calm, natural form invites focused and sensory-rich play. Made of natural wood, the board integrates seamlessly into outdoor learning environments inspired by nature-based and sensory education.
Dimensions & Technical Data
Length: 1.20 m
Width: 0.57 m
Height: 1.33 m
Maximum fall height: 0.00 m
User age range: 1–7 years
Number of users: 2
Materials & Construction
Structure made of natural pine wood planks
Wood vacuum impregnated for durability and weather resistance
Drawing surface made of plywood covered with a chalk-compatible layer
All connectors and fittings are weather-resistant and UV-resistant
Freestanding construction suitable for flexible outdoor layouts
Equipment List
1× drawing board
Benefits for Kids
Encourages creative expression through drawing and writing
Supports fine motor skills and hand control
Promotes cooperation and shared play experiences
Stimulates imagination and early communication
Encourages calm, focused sensory play outdoors
Strengthens connection with nature through natural wooden materials
Safety & Standards
Complies with EN 71 58605
End
Download Technical Documentation For The Terra Drawing Board (large)
The technical card and top-view DWG file provide key dimensions and layout information for architectural and landscape planning.
