Download Technical Documentation For Terra Mud Play Set 2

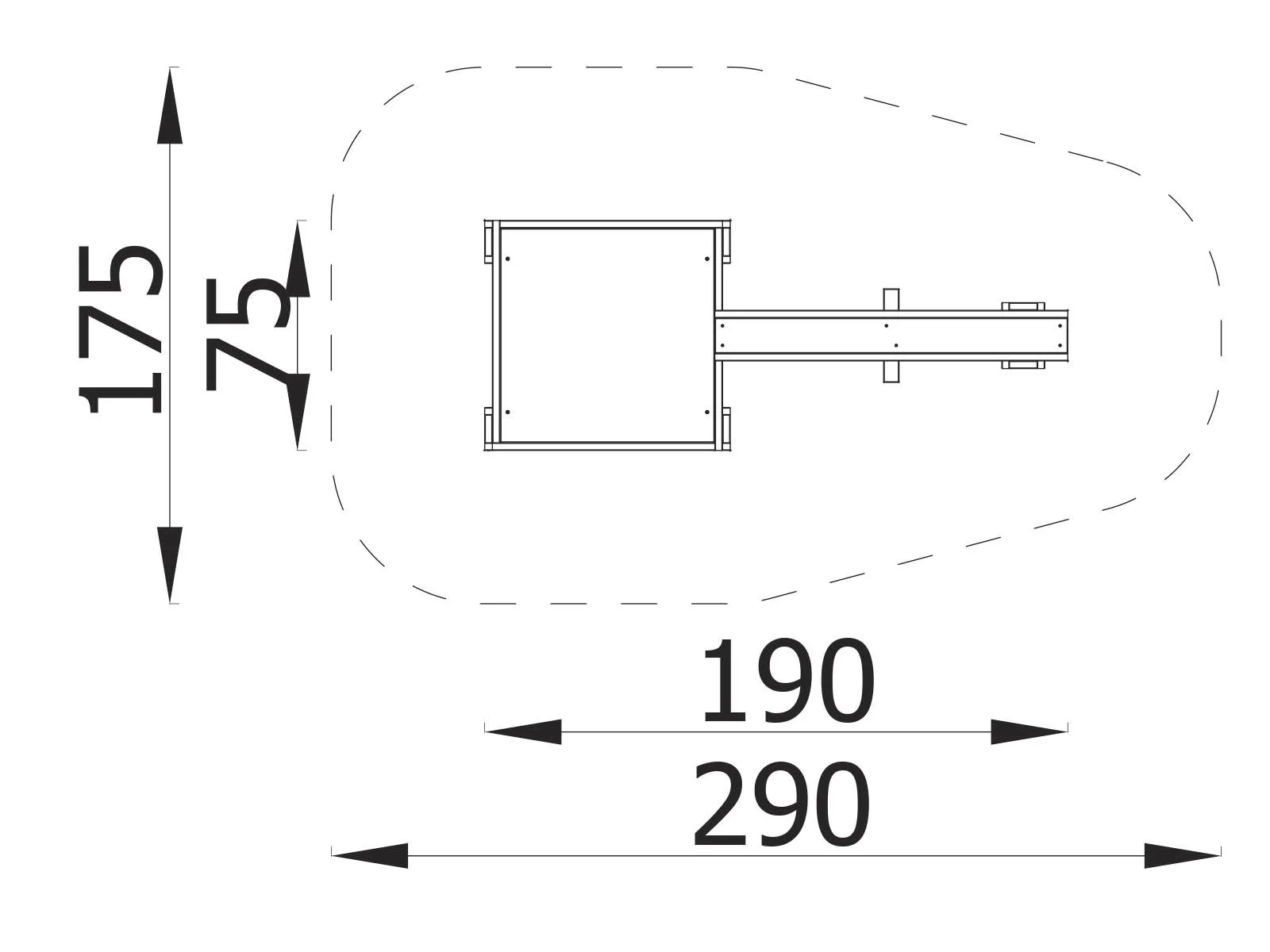

The technical card and top-view DWG file provide key dimensions and layout information for architectural and landscape planning.
Purpose

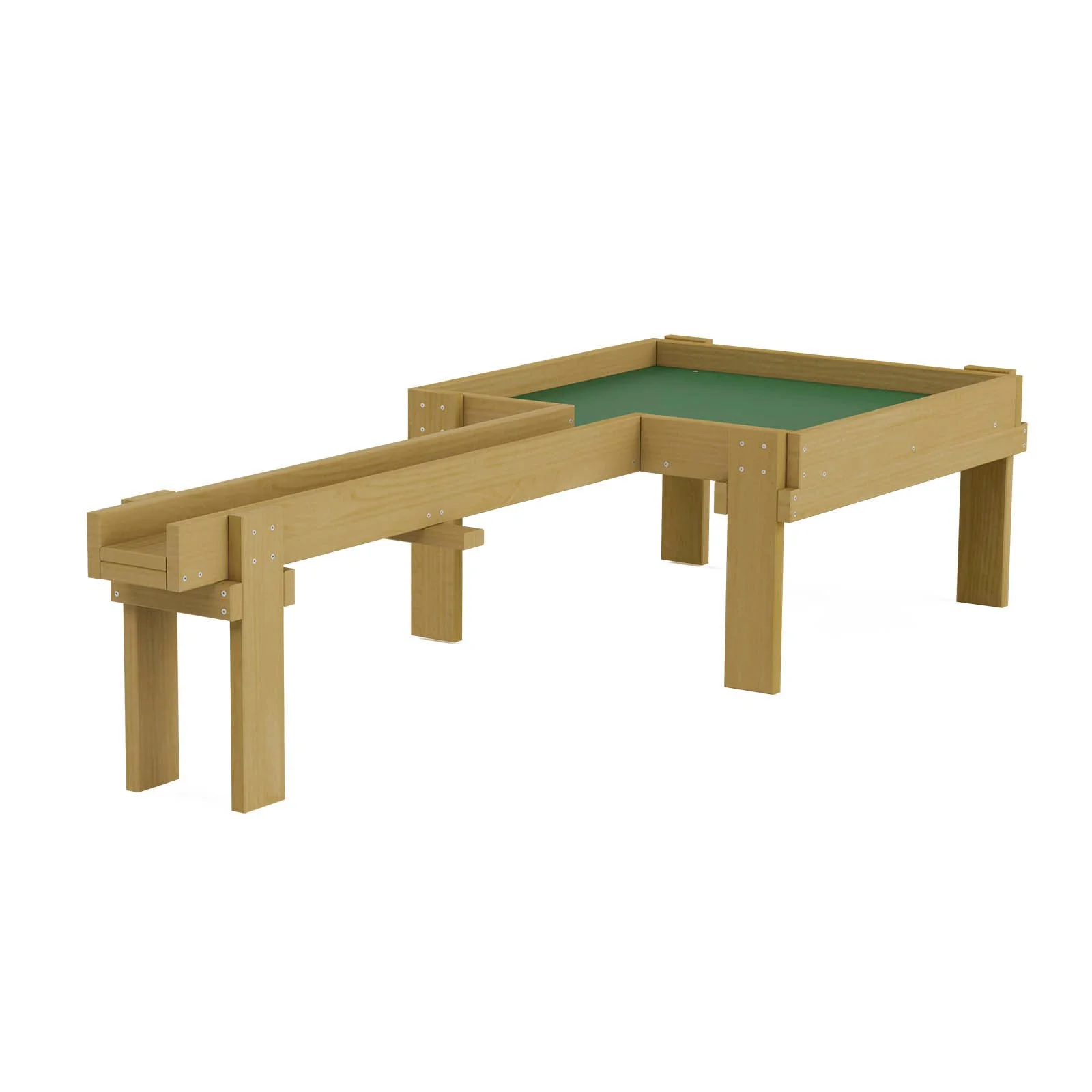

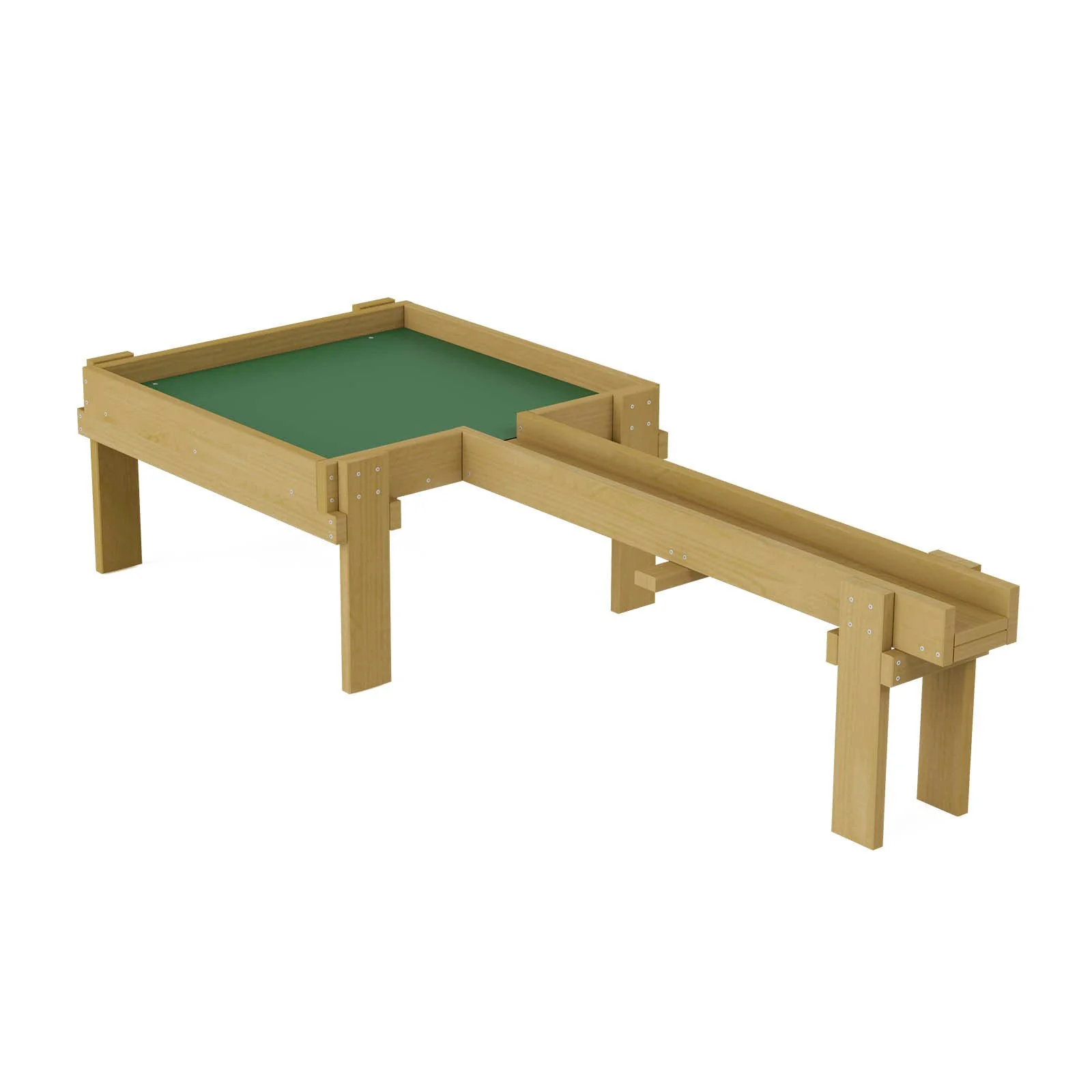

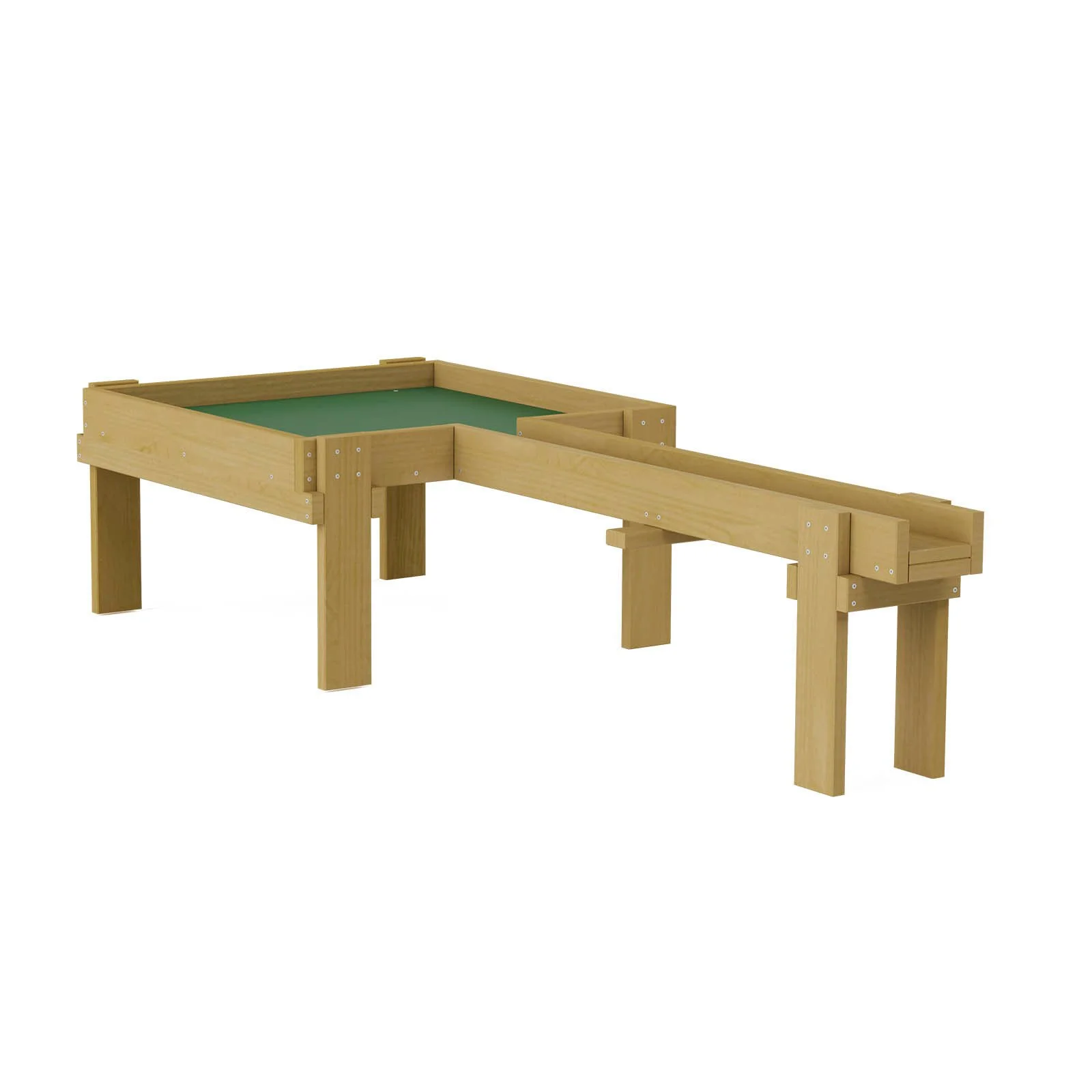

This sensory mud play set from the Terra collection is designed to support hands-on outdoor play with natural materials such as mud, sand, and water. It encourages exploration, cooperation, and independent experimentation, allowing children to develop fine motor skills, creativity, and social interaction in a calm, nature-based play environment. Suitable for young children, it supports sensory development through tactile play and shared activities.
Dimensions & Technical Data
Length: 1.90 m
Width: 0.75 m

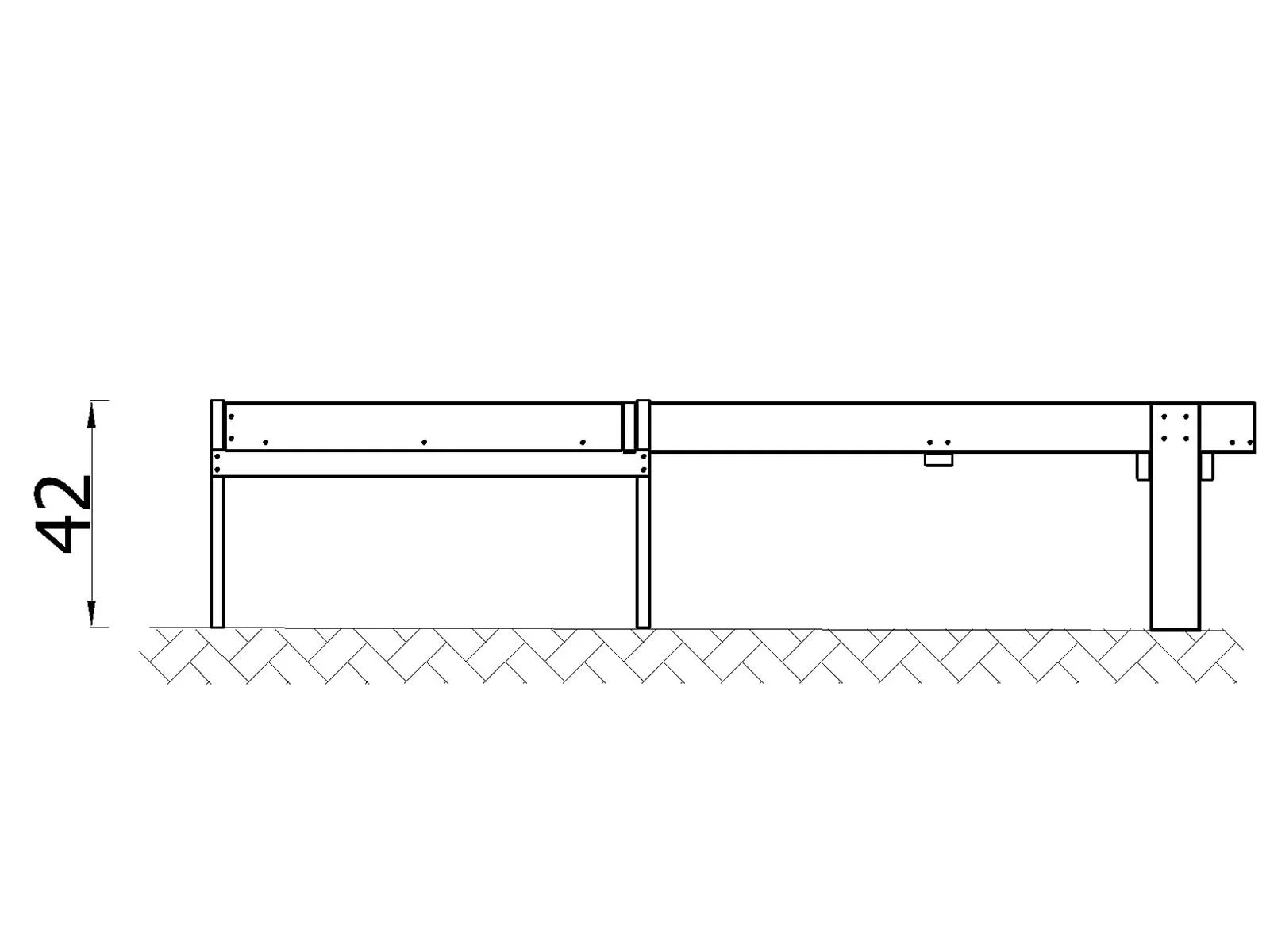

Height: 0.42 m
Maximum fall height: 0.00 m
User age range: 1–7 years
Number of users: 4
Materials & Construction
Structure made of pine wooden boards, 2.0 and 2.5 cm thick
Wood vacuum impregnated for outdoor durability
Panels made of high density polyethylene, 15 mm thick
Connectors and fittings resistant to weather conditions and UV exposure
Freestanding construction
Equipment List
1× mud play bin
1× mud play chute
Safety & Standards
Designed for ground-level play with zero fall height
Suitable for supervised use in public playgrounds and educational outdoor spaces
Complies with CE safety requirements for playground equipment
Smooth surfaces and stable construction reduce risk during sensory play
End
