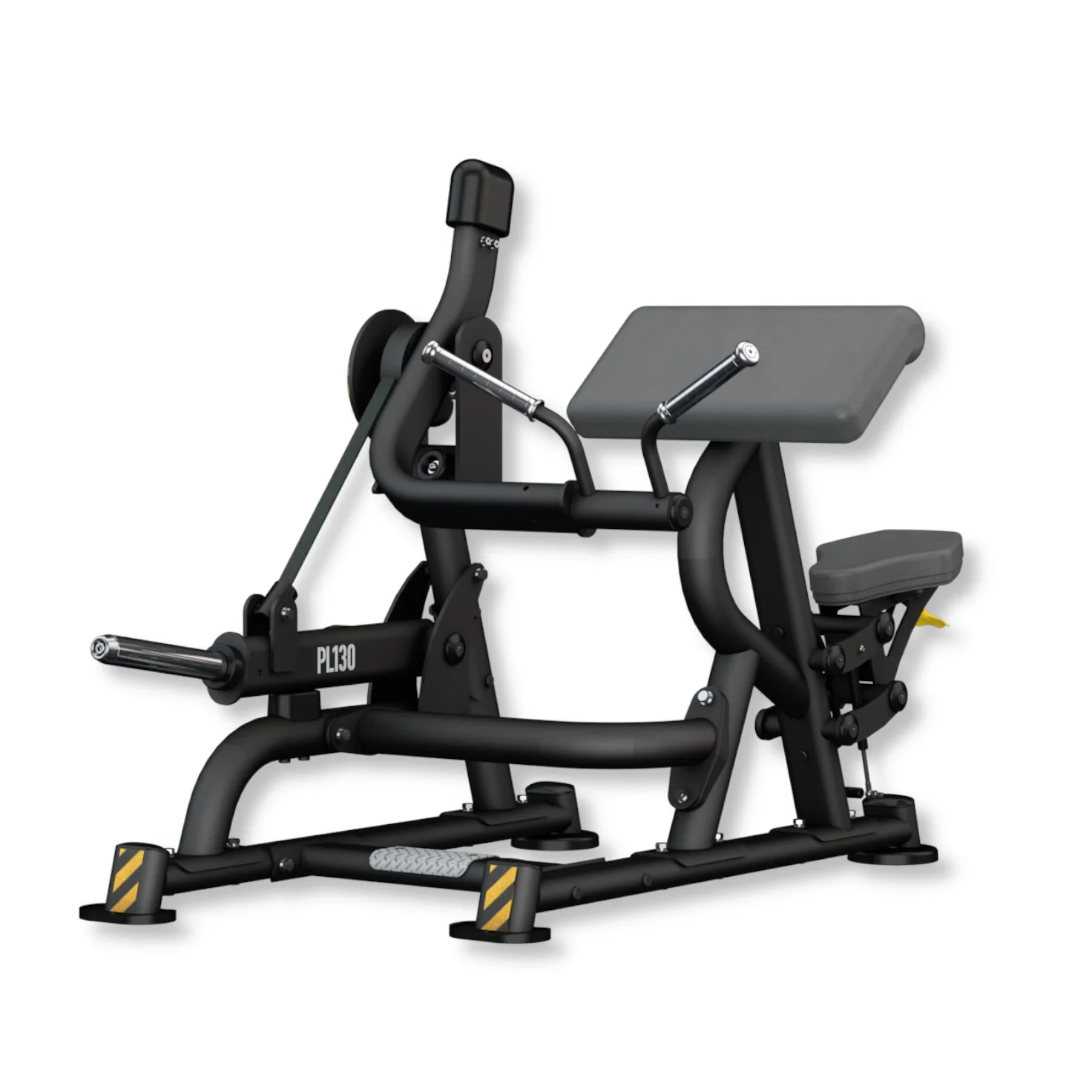

PL Series Bicep Machine PL130B

Purpose:

The PL130B Bicep machine is engineered for precise and effective arm training. Its rotating multi-position handlebar allows for a 90° adjustment, enabling users to modify the training angle to match their body size and arm position. This ensures a biomechanically correct and safe biceps contraction in every rep—ideal for professional gym environments.

Dimensions & Technical Data:

• Length: 1500 mm

• Width: 1250 mm

• Height: 1240 mm

• Machine weight: 128 kg

• Maximum load capacity: 100 kg

Mechanical Specifications:

• Plate-loaded biceps curl with adjustable training angle

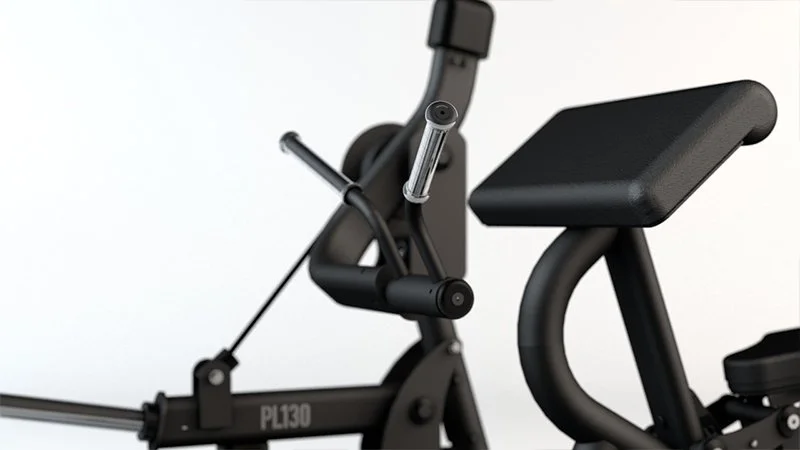

• 90° rotating multi-position handgrip for user adaptability

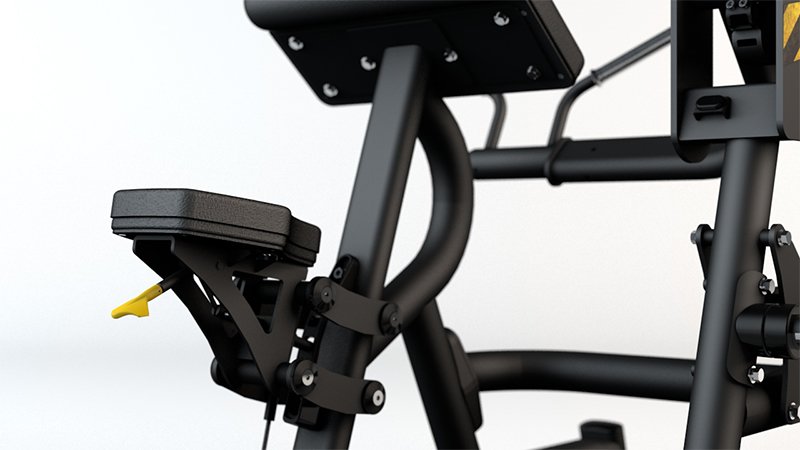

• Pneumatic vertical saddle adjustment

• Reinforced steel frame with 50 mm elevated structure

• Anti-corrosive paint finish

• Rounded tubes and yellow-coded adjustment points

Comfort Features:

• Injection core seat and arm support

• Anti-bacterial dual-tone upholstery

• Non-slip handgrips for safe and comfortable positioning

• Ergonomic support pad for correct arm alignment

Construction:

• Commercial-grade build for high-traffic strength areas

• Compact footprint optimized for isolation training

• Designed to reduce wrist and shoulder strain during curls

Warranty:

• 2-year professional warranty covering mechanical and functional parts

• 10-year structural warranty on the frame materials
